Loadbinders

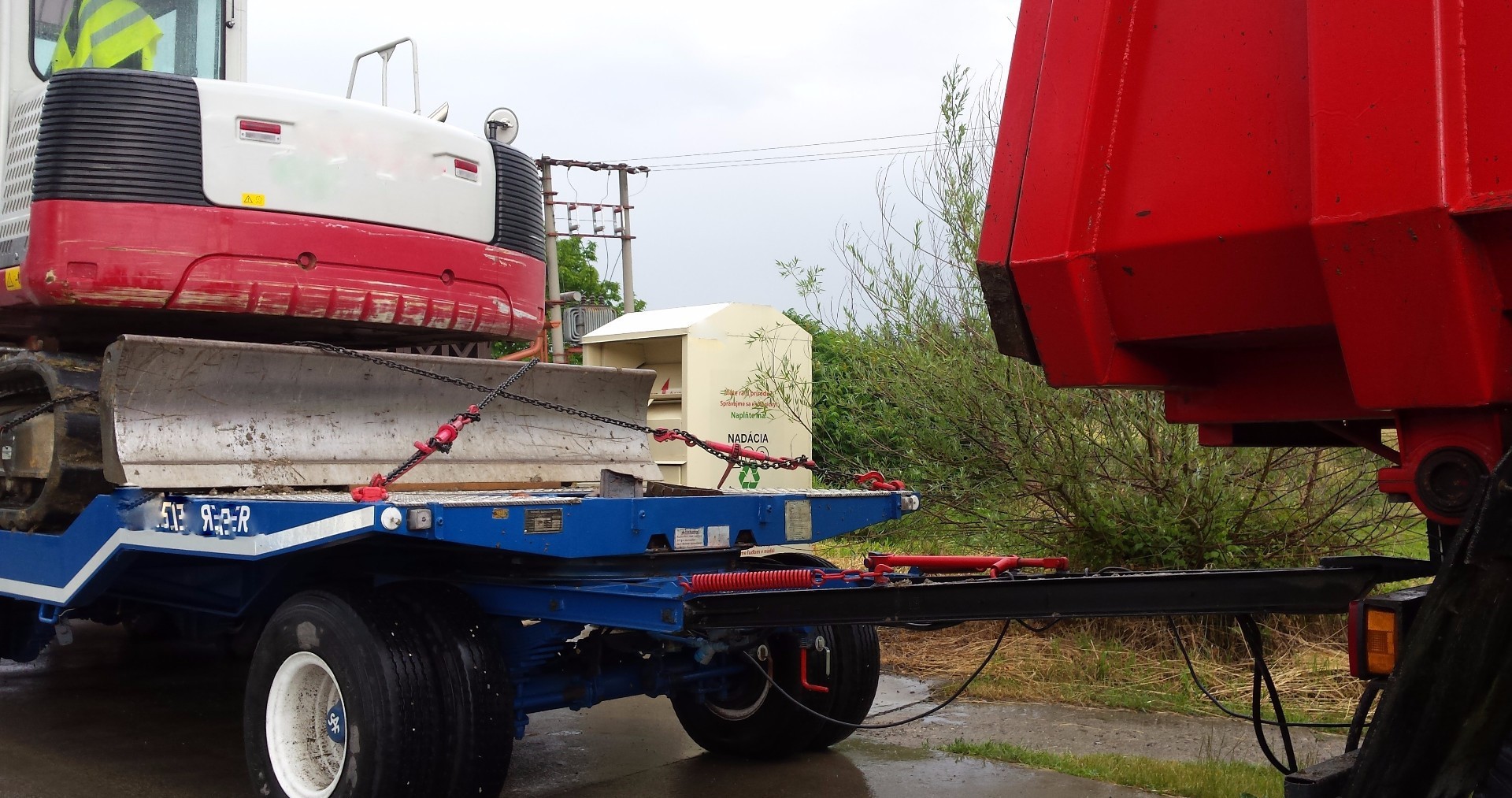

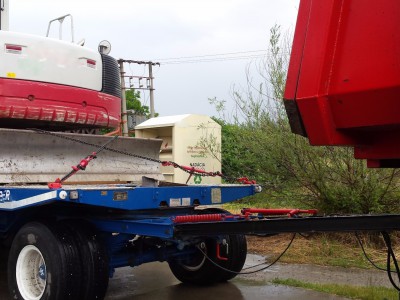

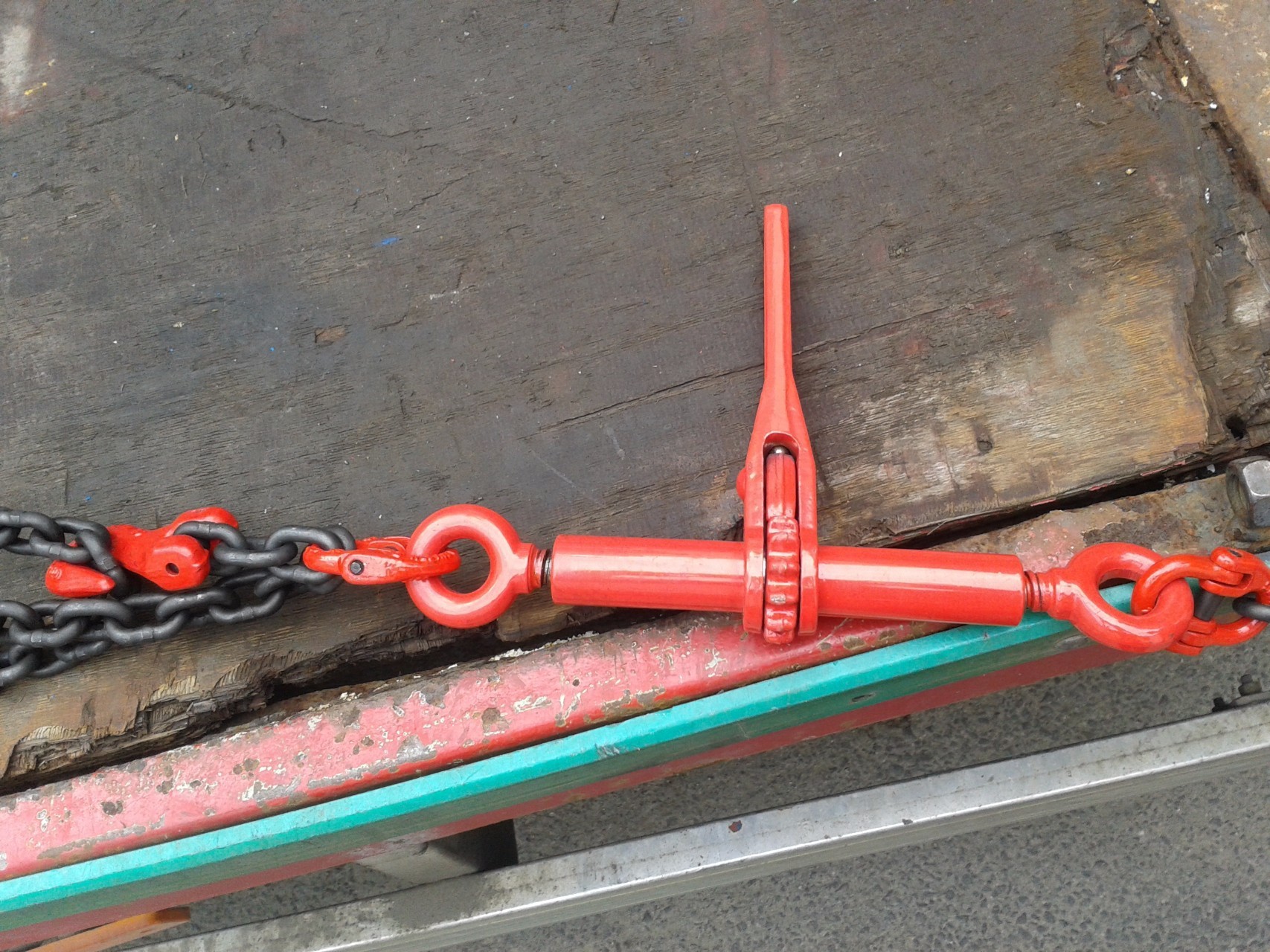

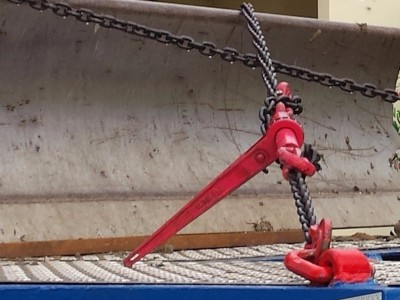

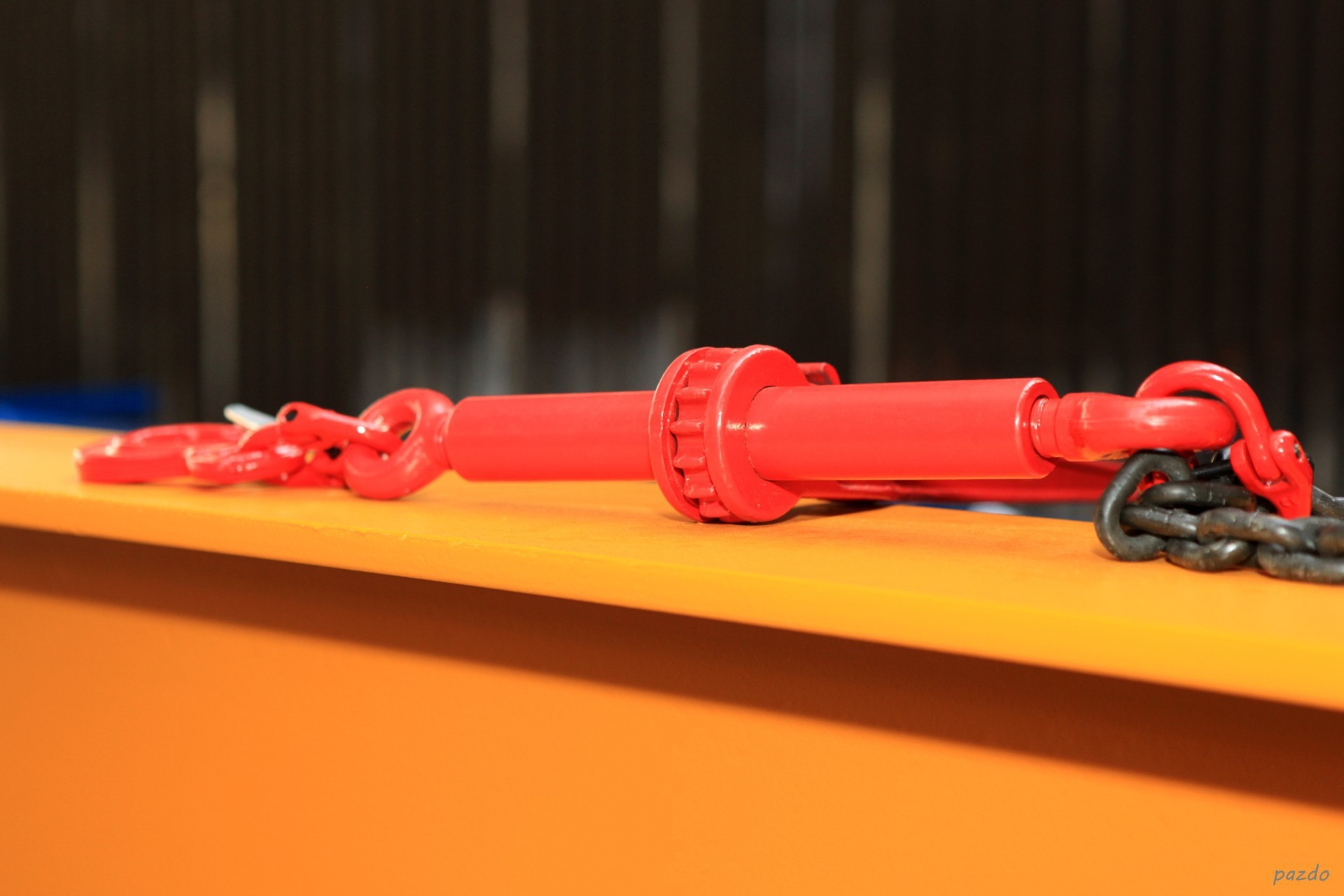

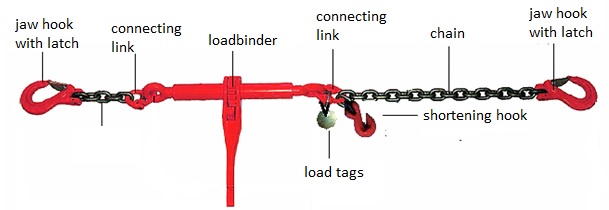

Manufactured according to EN 12195-3, consists of chain ratchet, end hooks and shortening hooks. All used components are grade 8, red coloured. It is suitable for transport of heavy machines, constructions, steel plates atc.

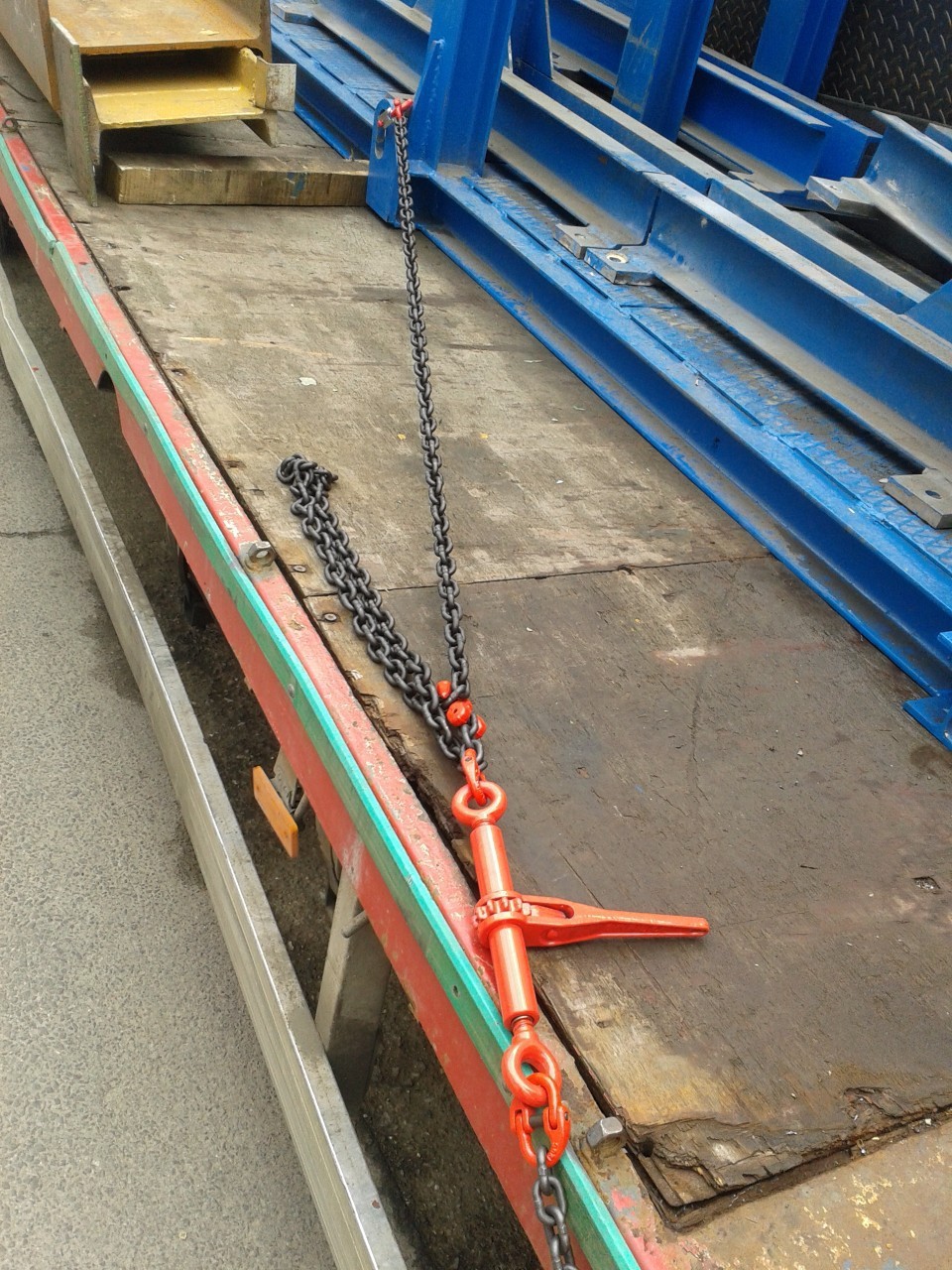

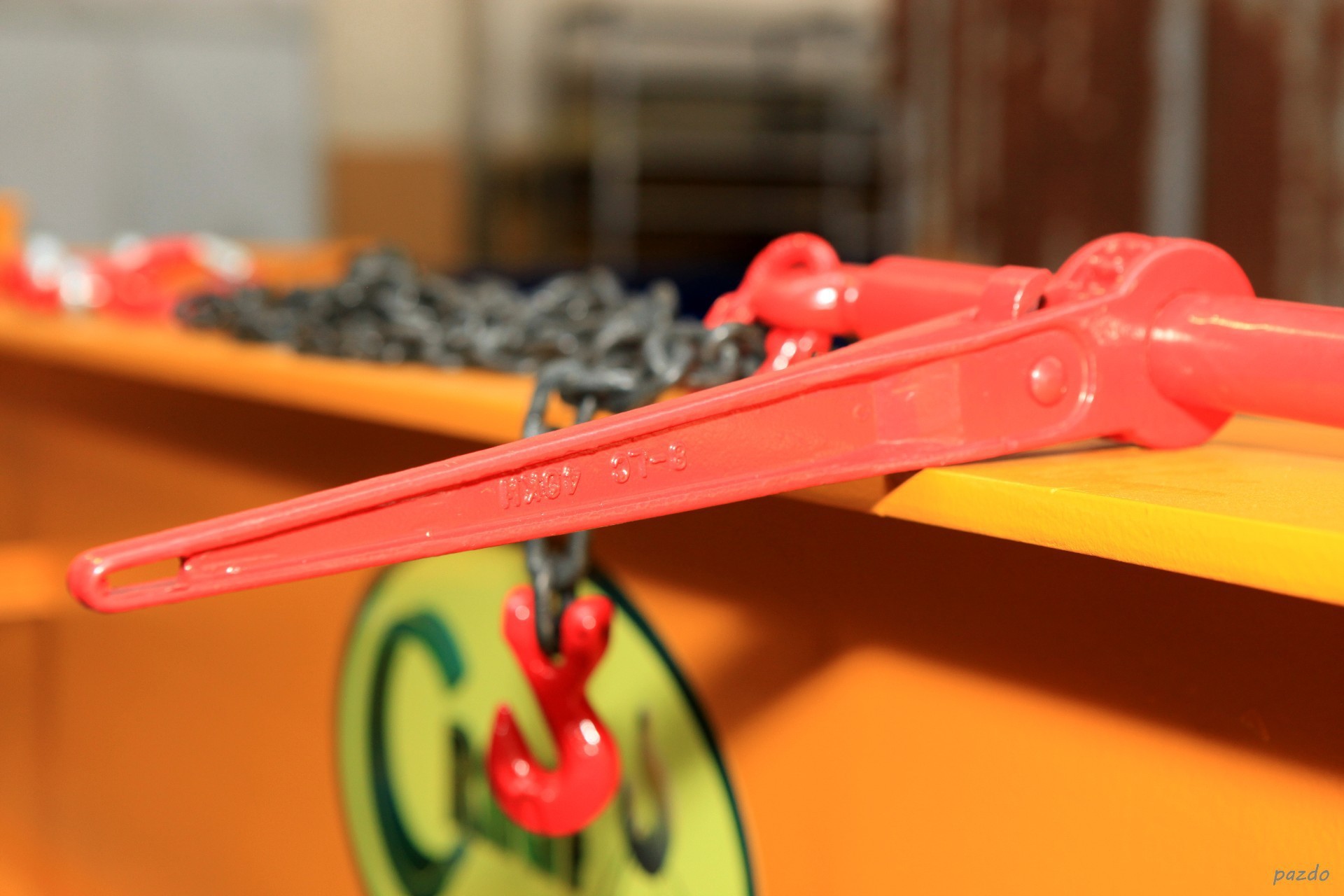

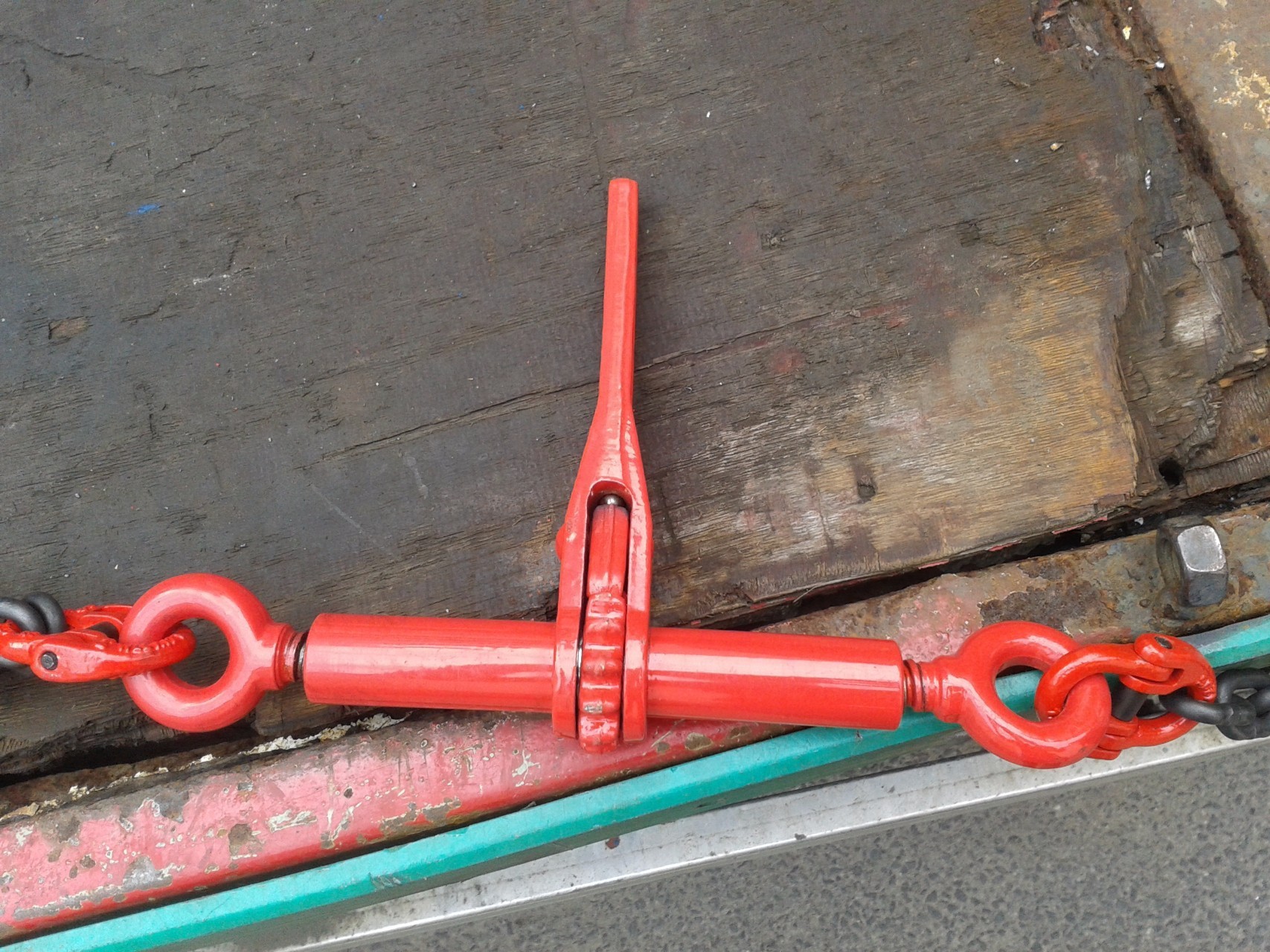

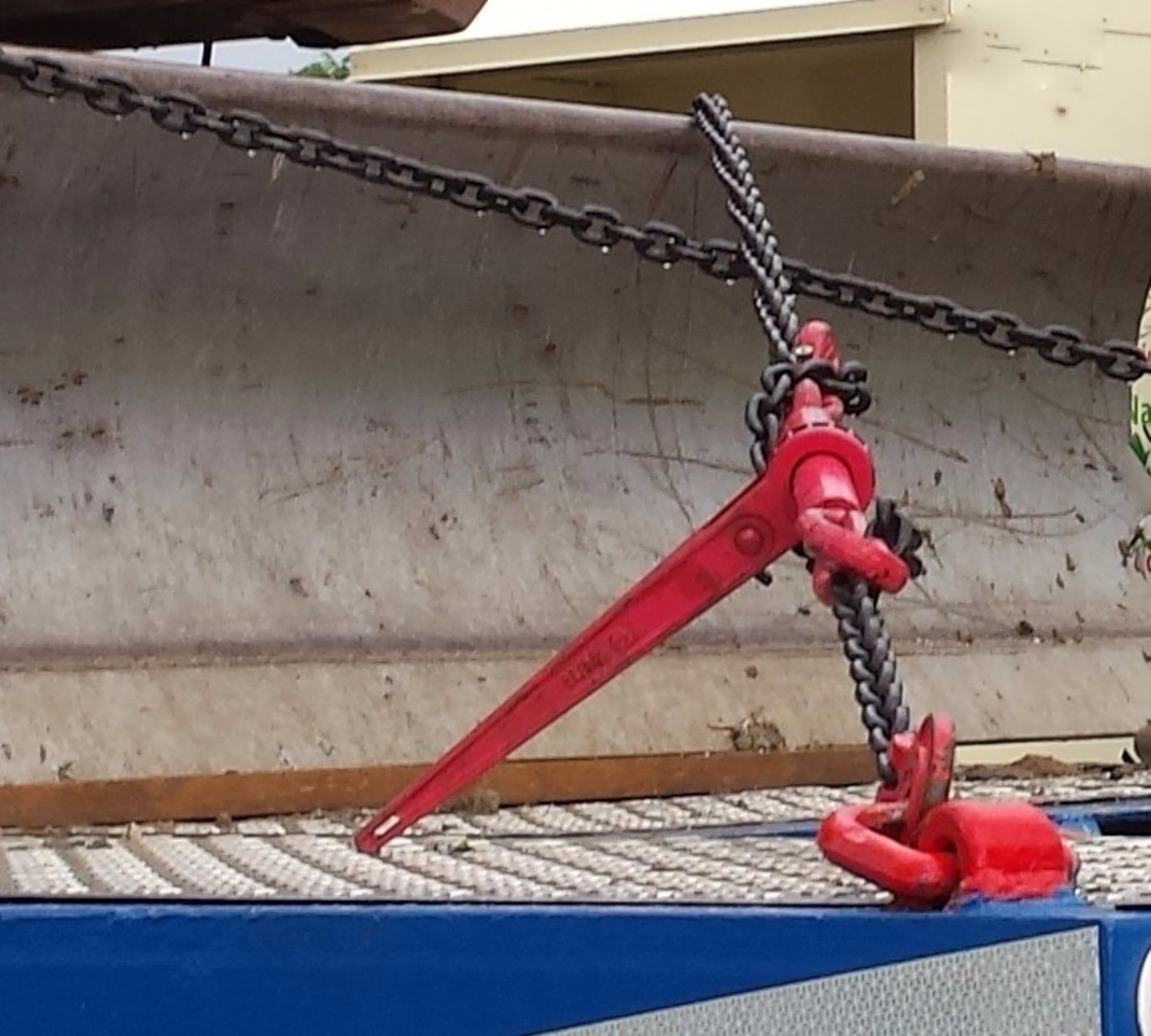

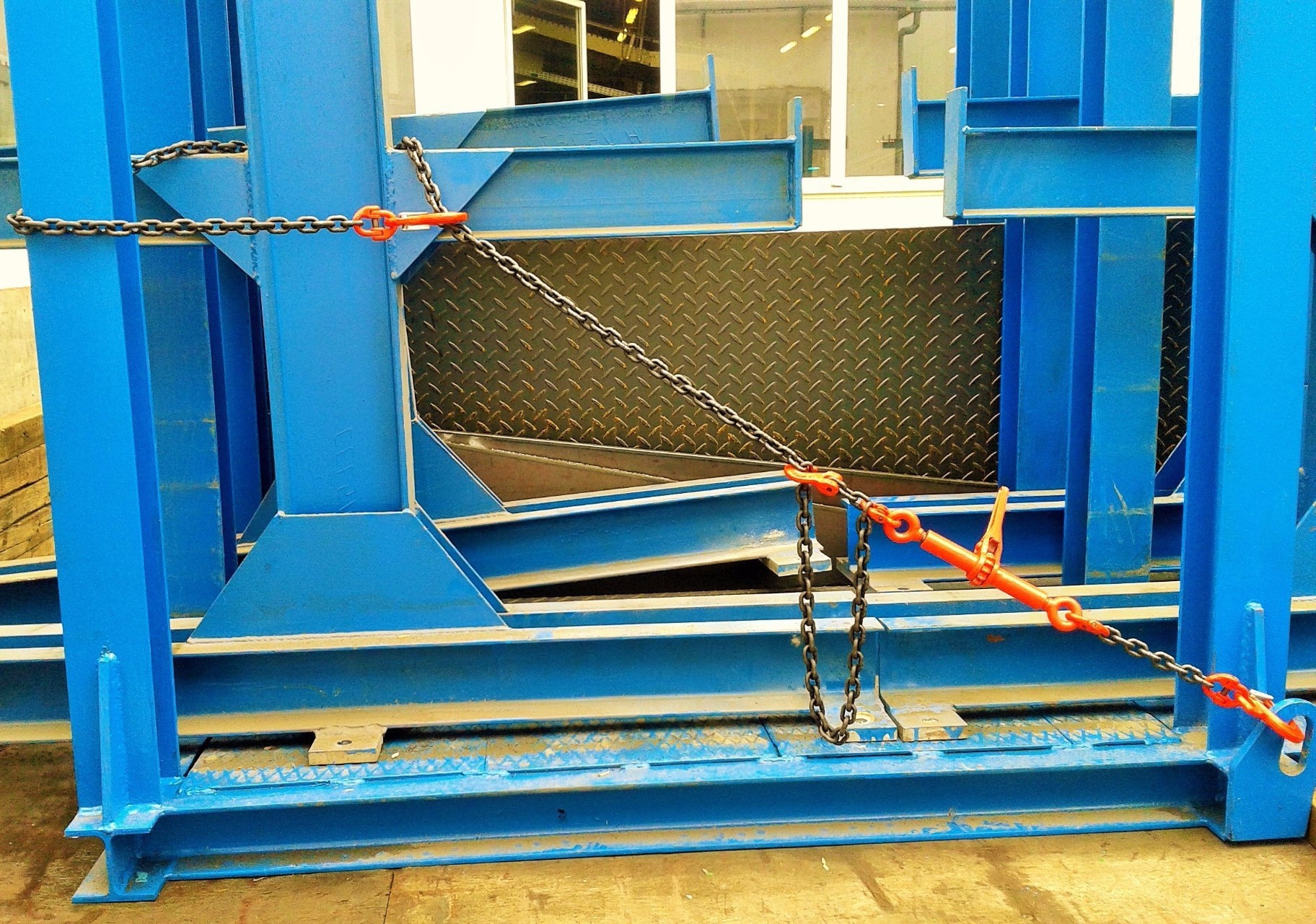

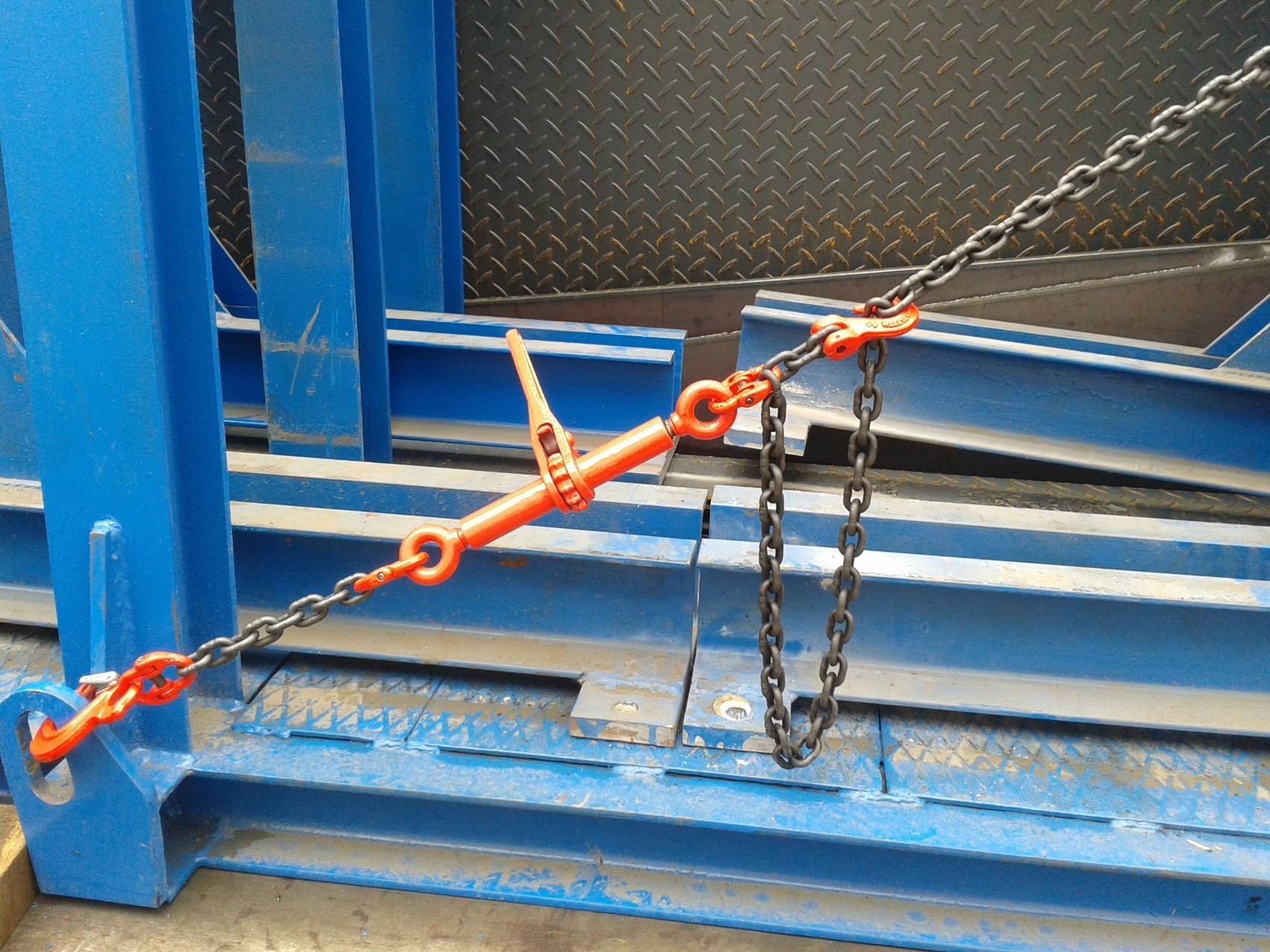

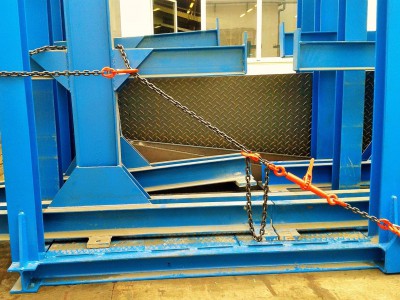

At the beggining the ratchet must be opened to the maximum. Chain hooks are fastened  to the load points, then the length of  chain must adjusted by using of shortening hooks. Pulling of the ratchet lever creates a sufficient tightening  force inside the system and secures the load.









TCLA Loadbinder


Type Ø (mm) LC
kN t
TCLA001 6 22 2,2
TCLA002 8 40 4,0
TCLA003 10 63 6,3
TCLA004 13 100 10,0

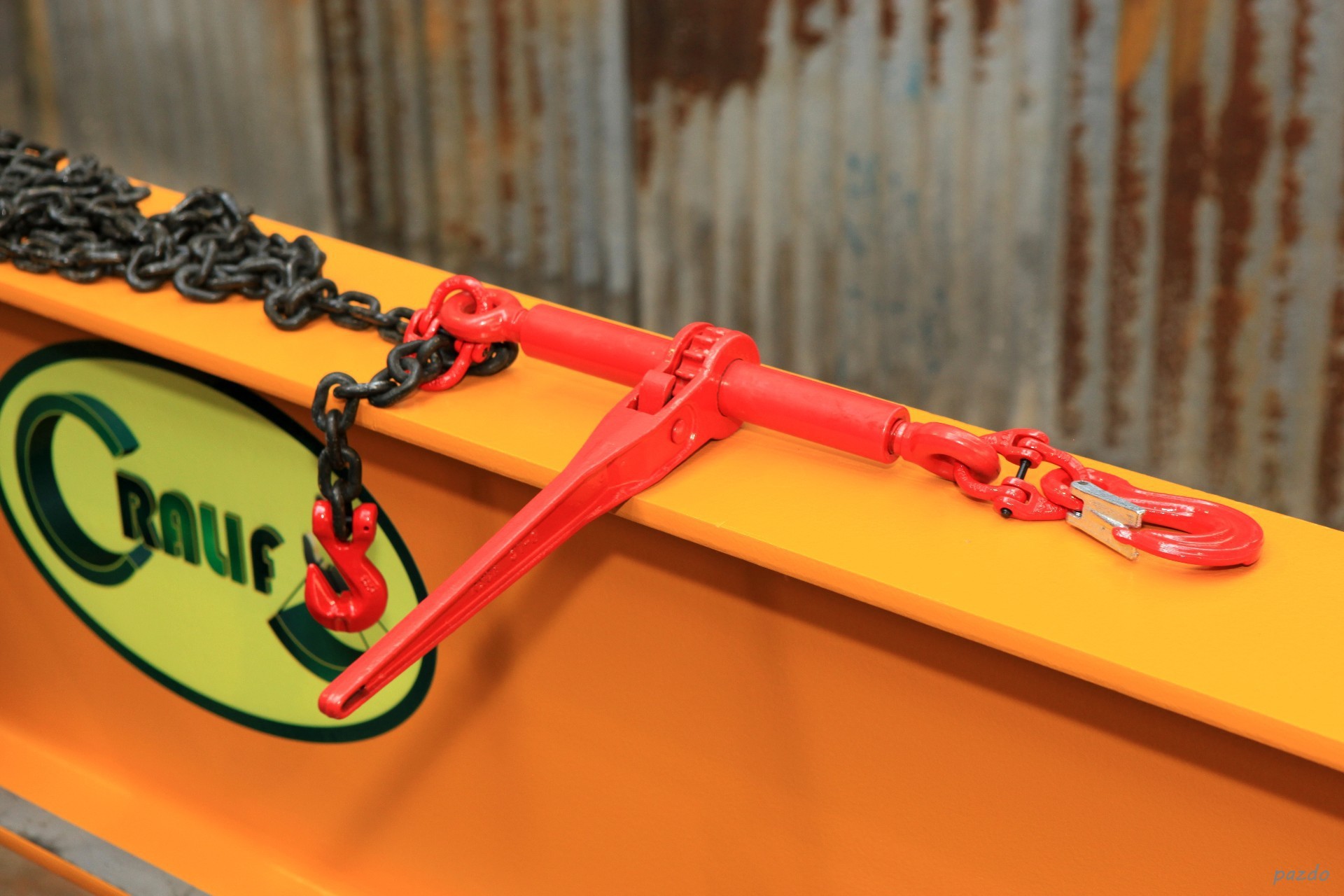

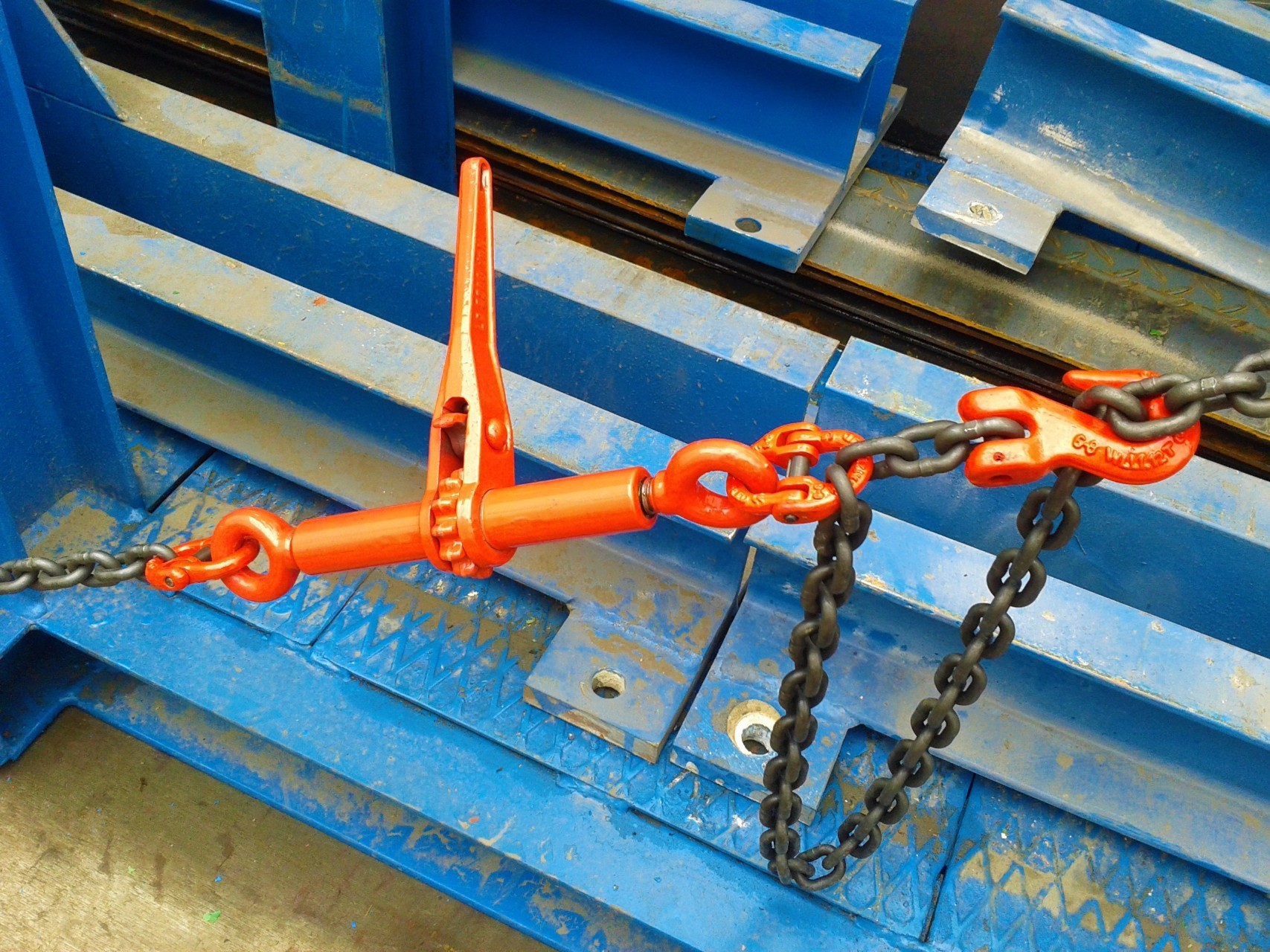

TCLC Loadbrinder with shortening hooks






Type Ø mm LC
kN t
TCLC001 6 22 2,2
TCLC002 8-10 40 4,0
TCLC003 10-13 63 6,3
TCLC004 13-16 100 10,0

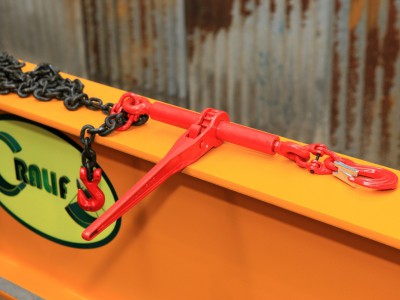

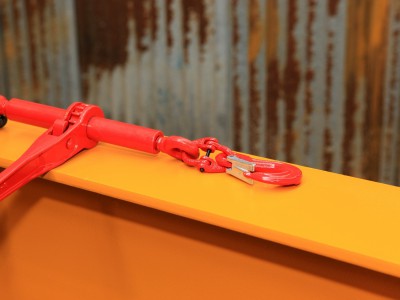

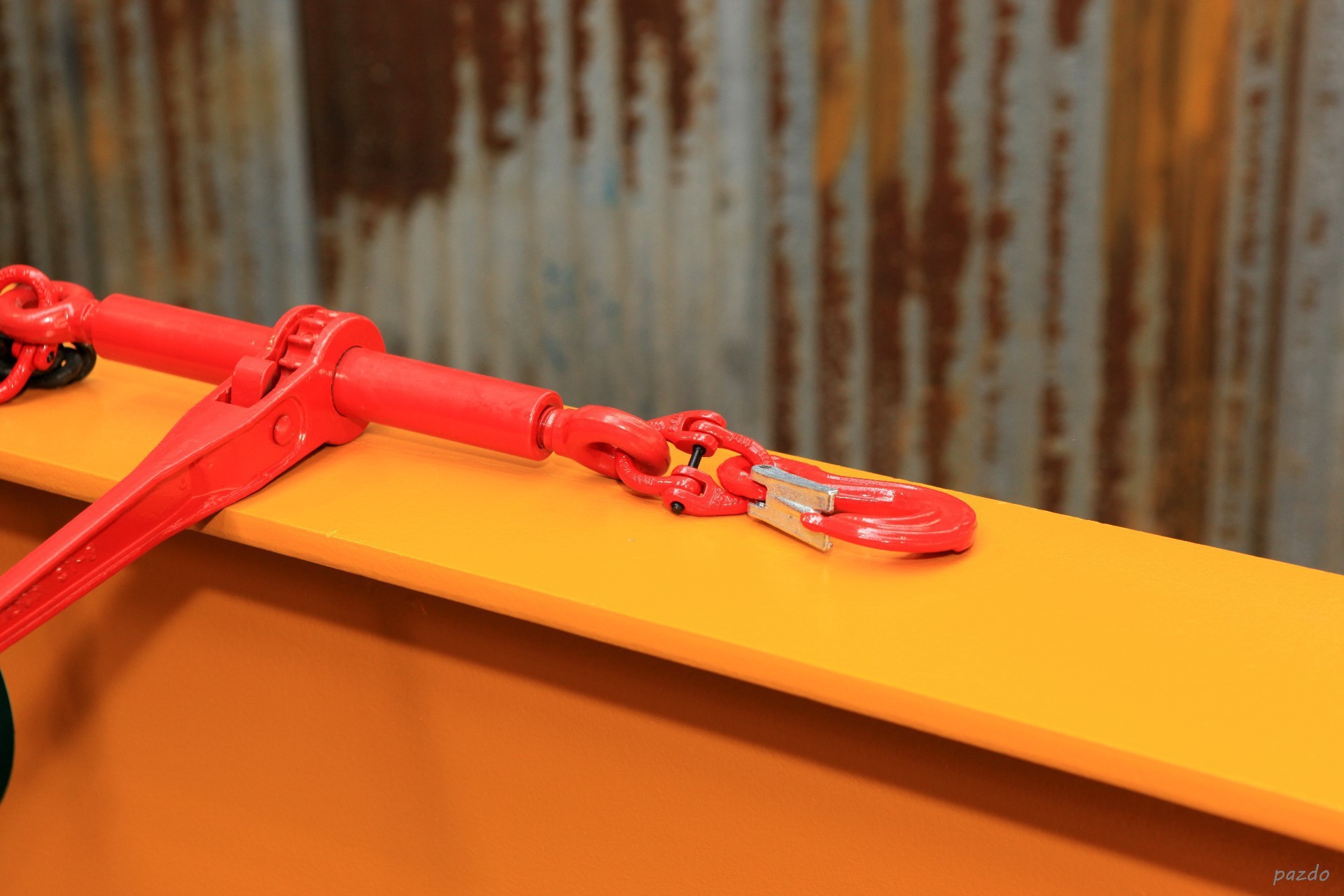

TCLC..G Loadbinder with shortening hooks woith latch


Type Ø (mm) LC
kN t
TCLC001G 8 40 4,0
TCLC002G 10 63 6,3
TCLC003G 13 100 10,0
