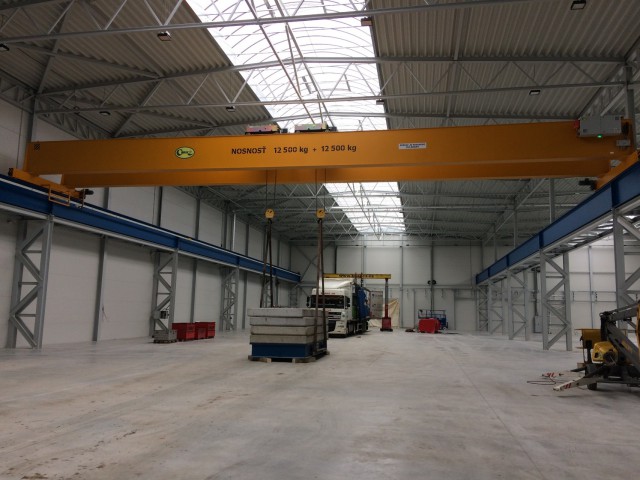

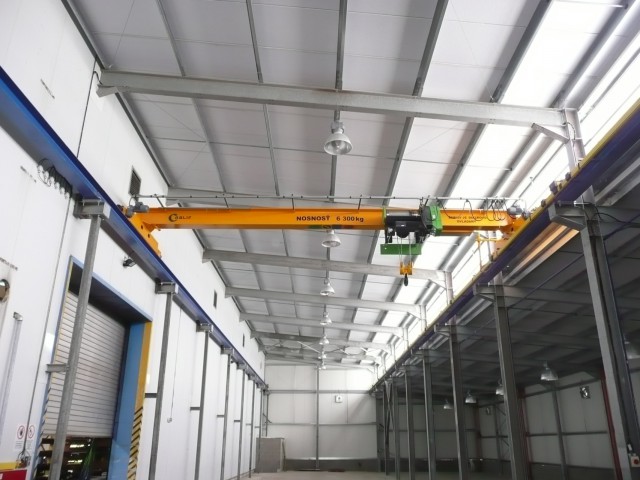

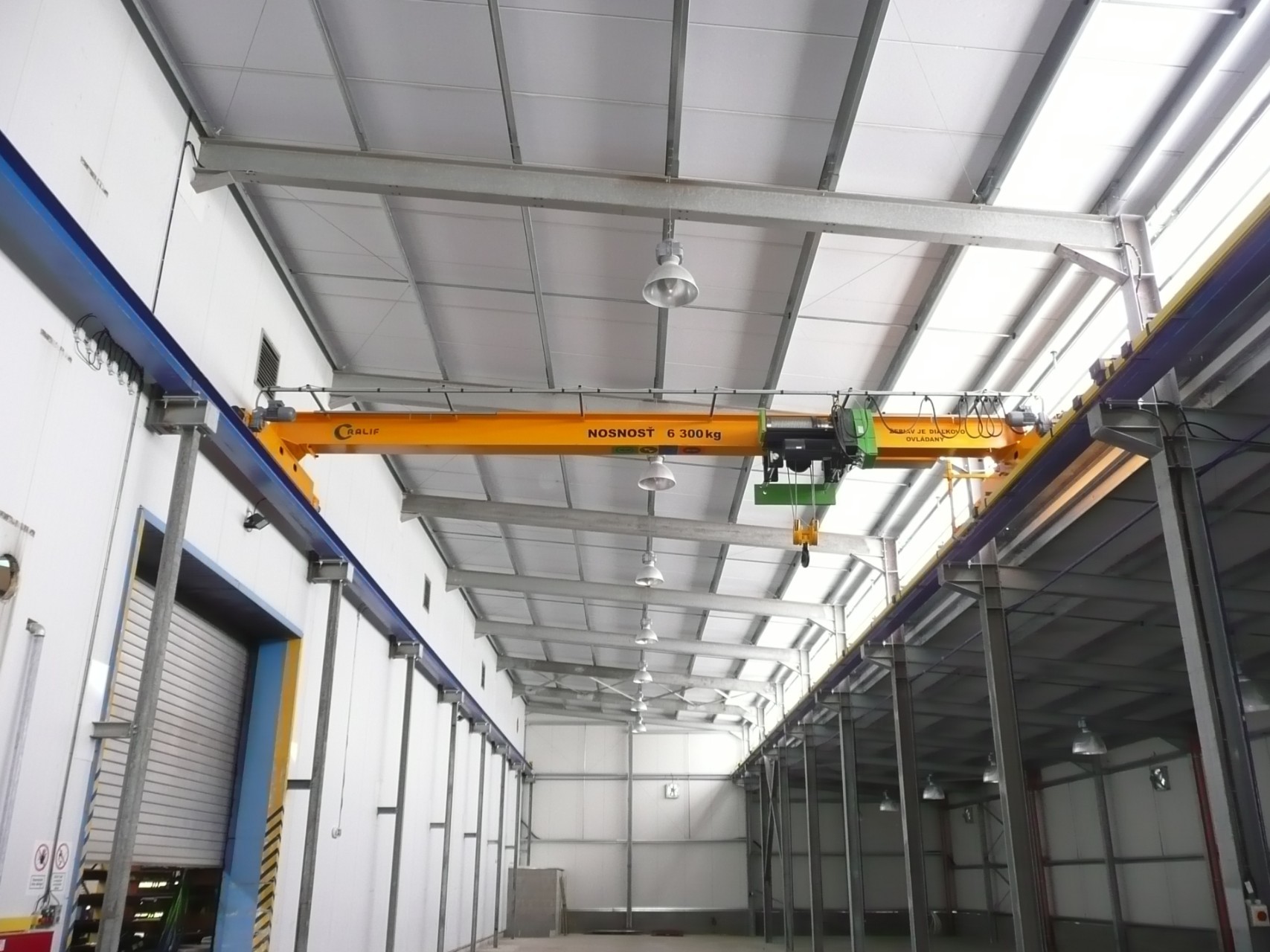

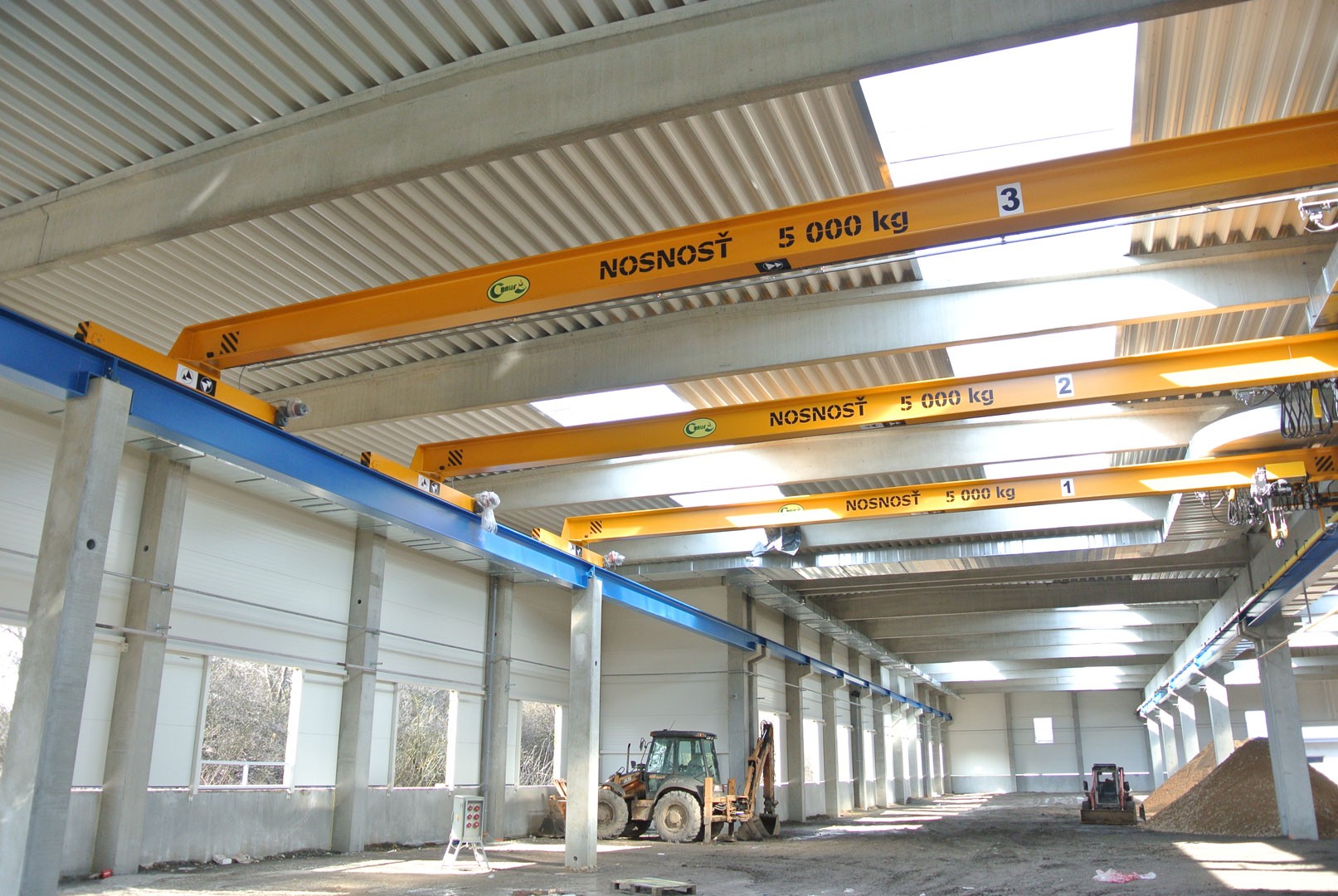

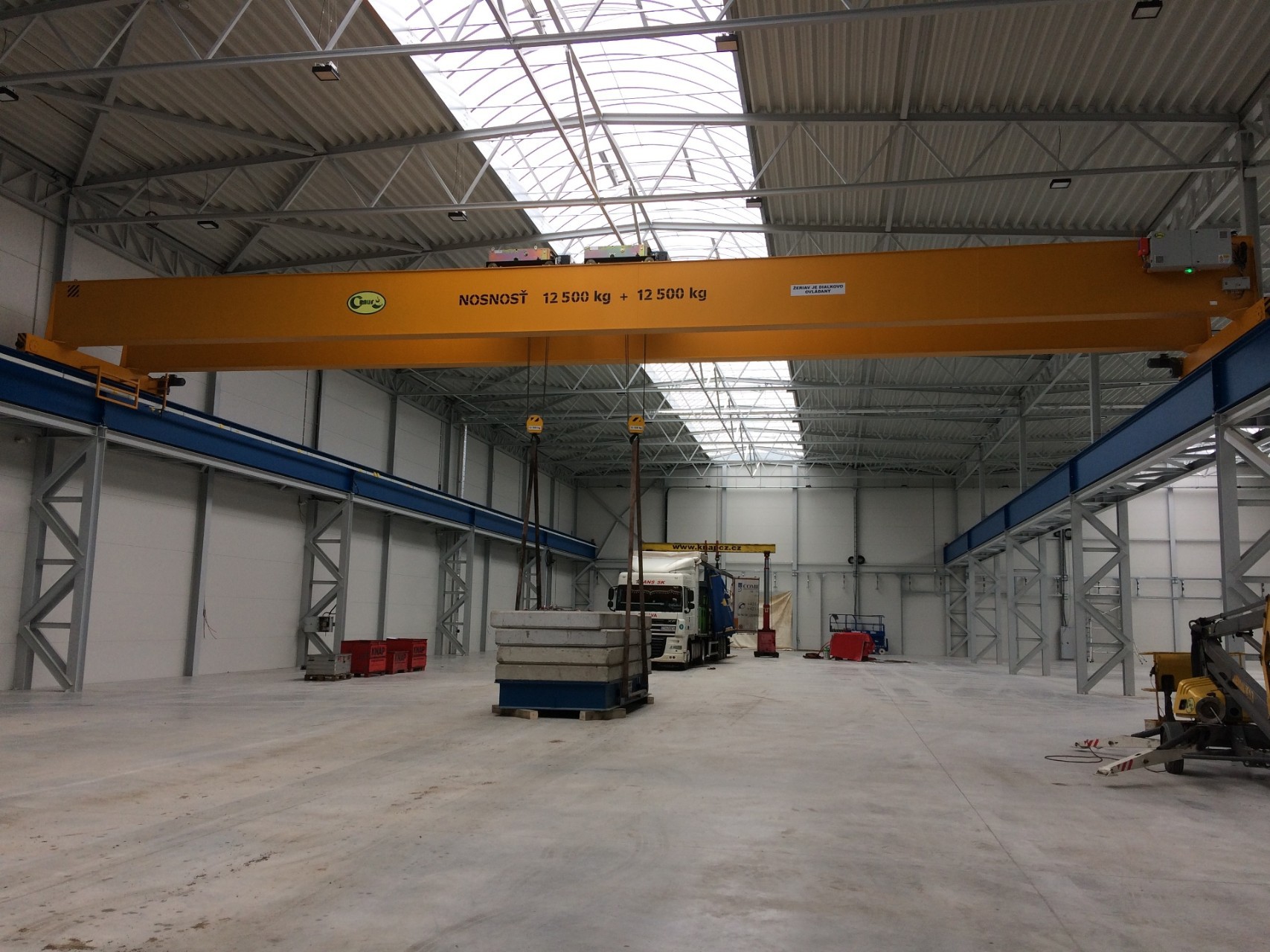

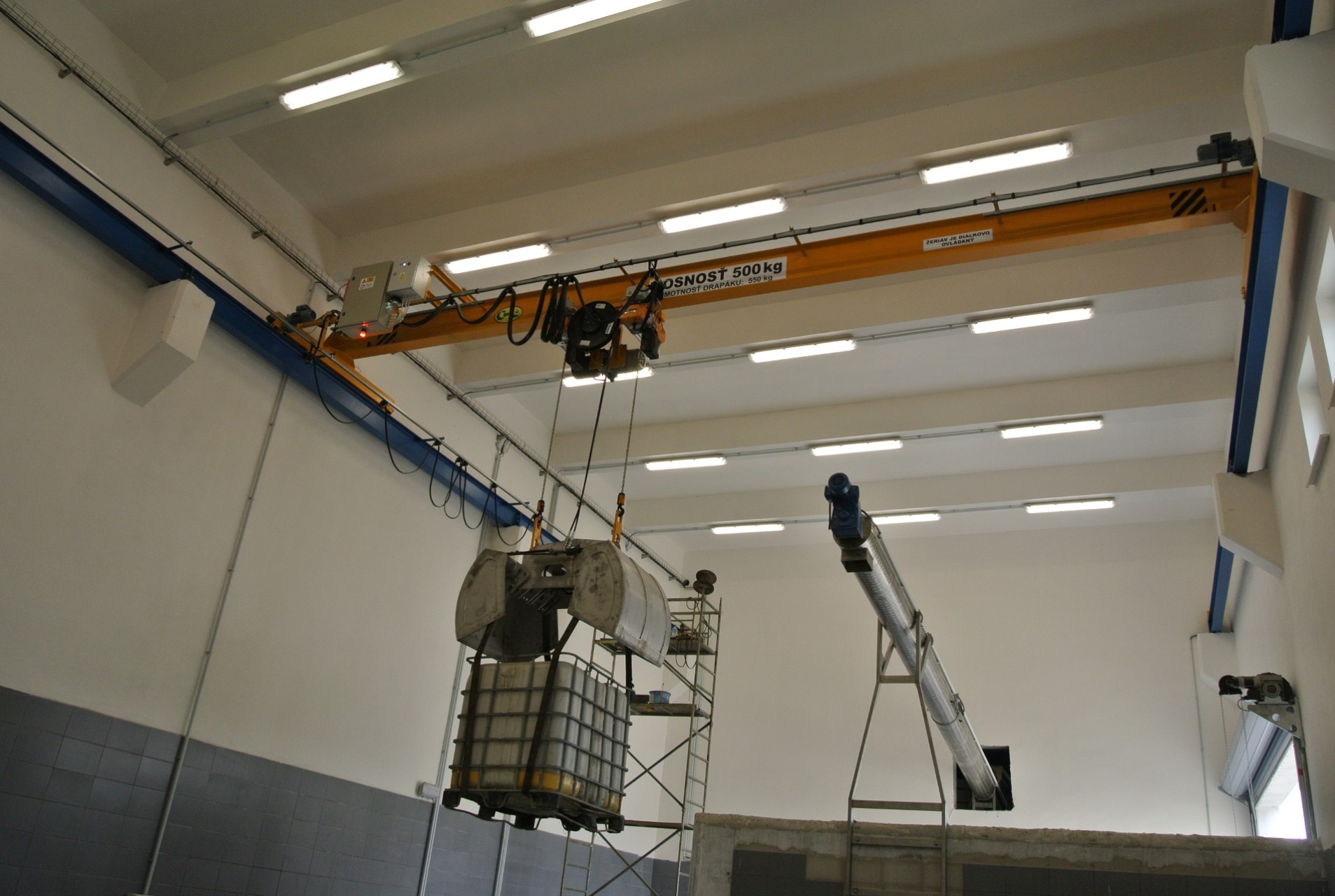

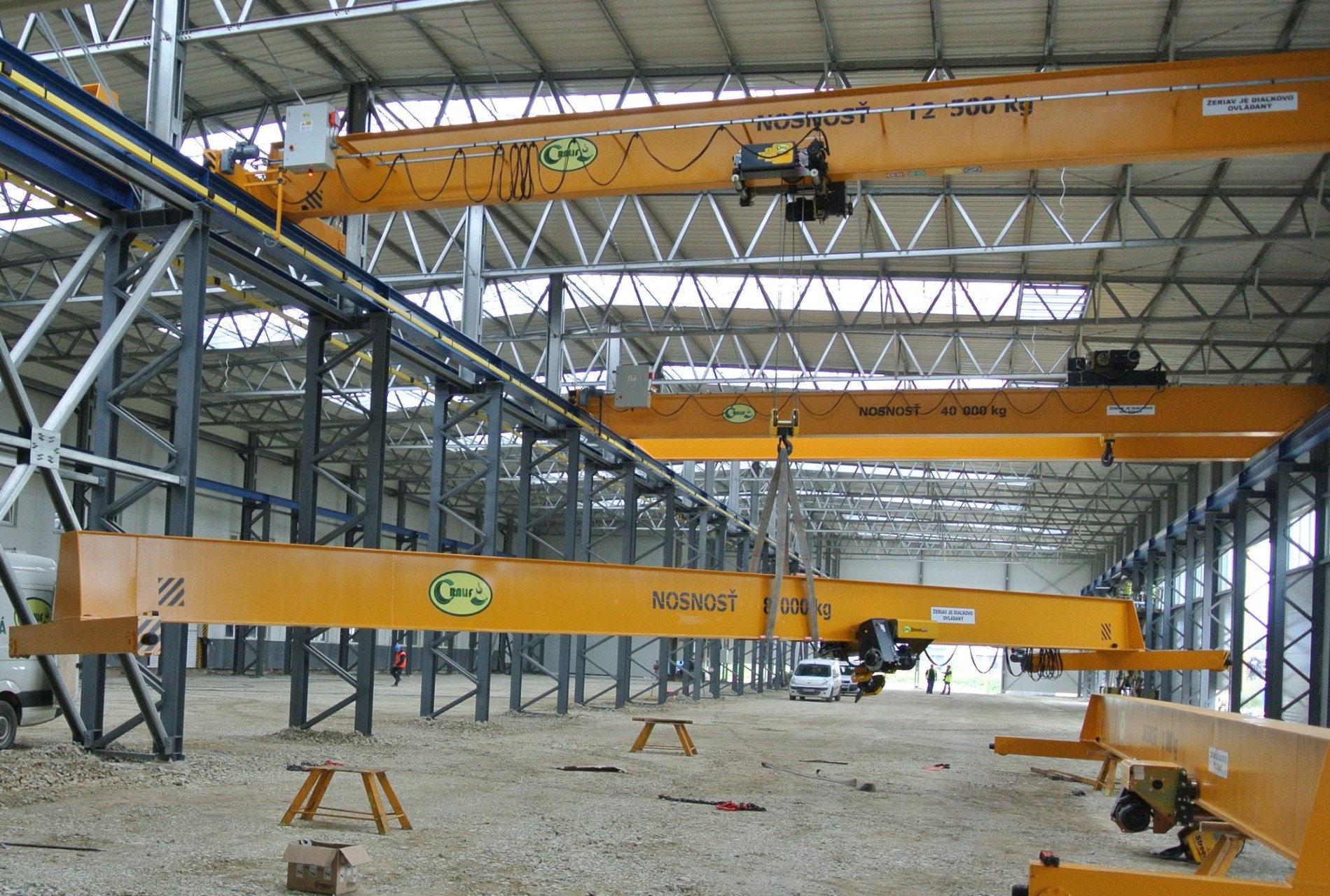

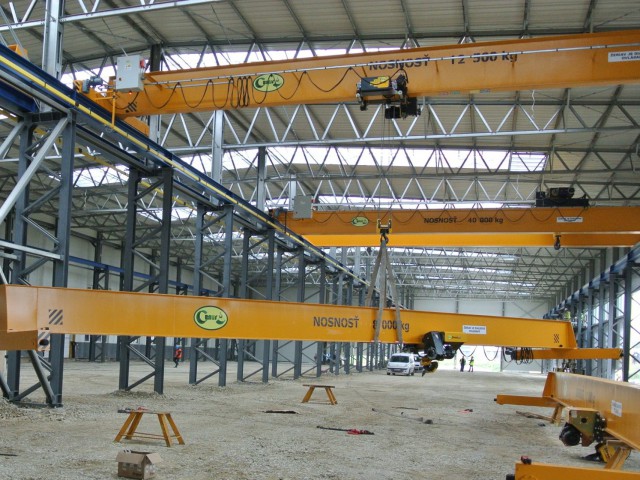

We produce crane railways for overhead cranes, portal/gantry cranes, for underslung cranes and for monorail cranes. The railway is possible to install on new steel construction, on shop floor bracket, on supporting pillars or already existing steel construction, bracket or pillar. We also carry out reparations, railways´ rectification including replacement of rails and performing of required heavy-duty test and geodetic measurement.





Railways have to be checked and maintained during their entire life time period. Providing of spare parts for crane railway components belong to our services as well. The Cralif, s.r.o. offers geodetic measurement and auditing exams of crane railways also for railways manufactured by other companies than Cralif, s.r.o. is.

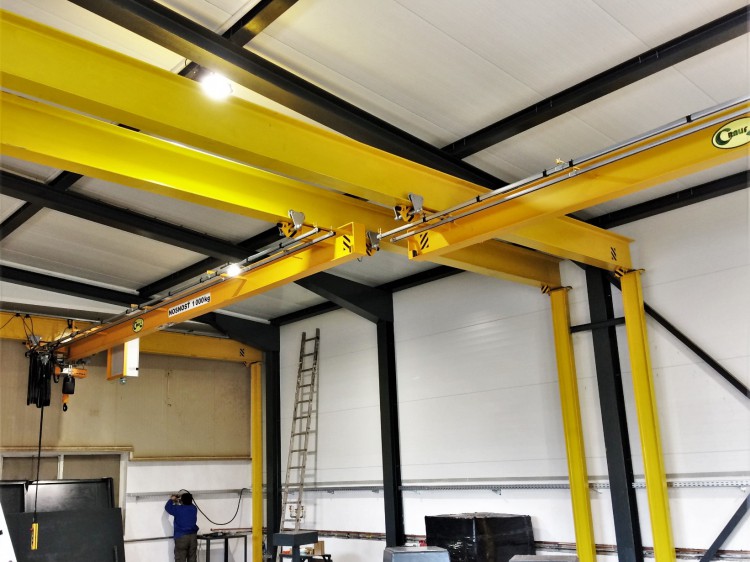

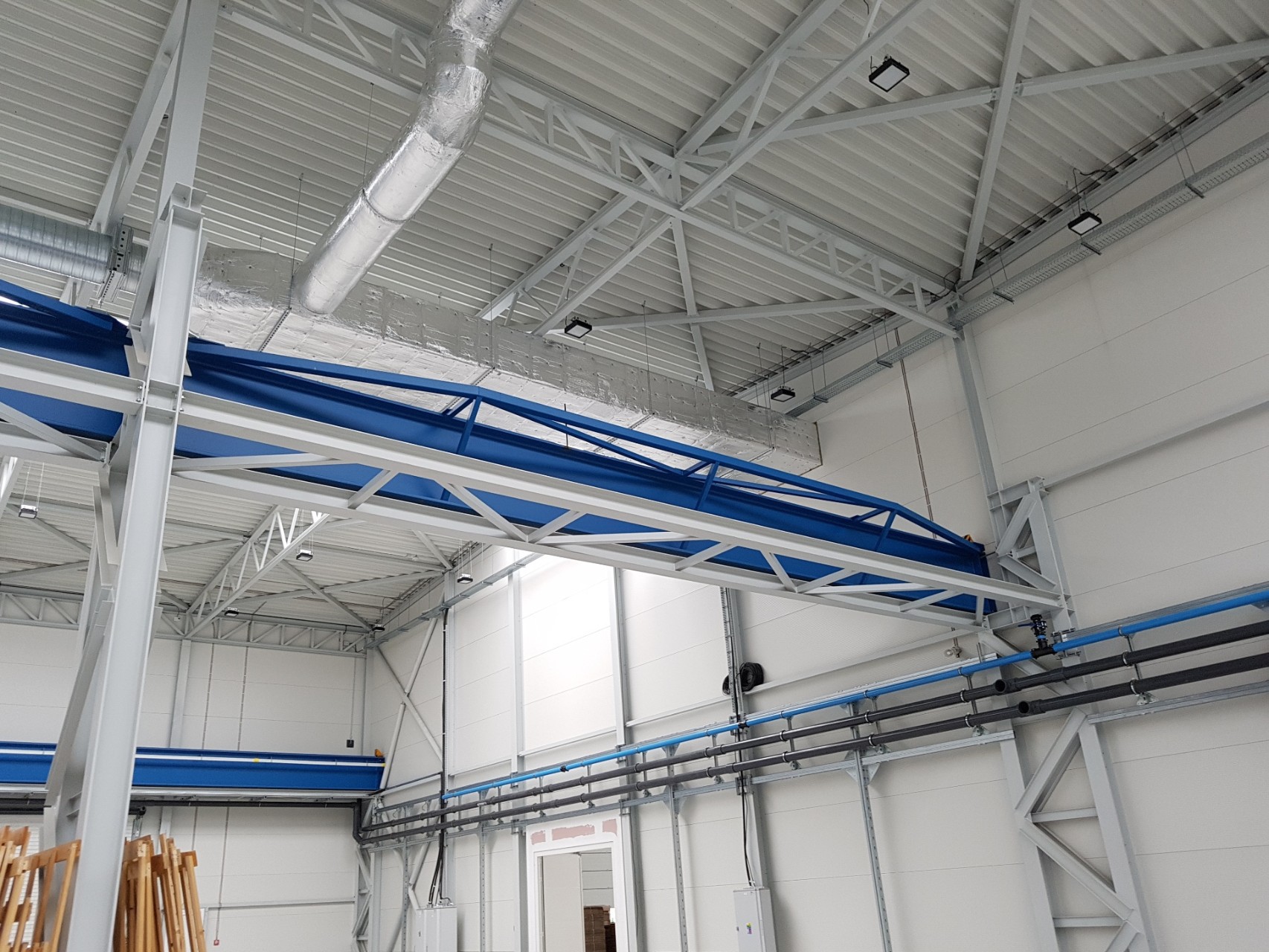

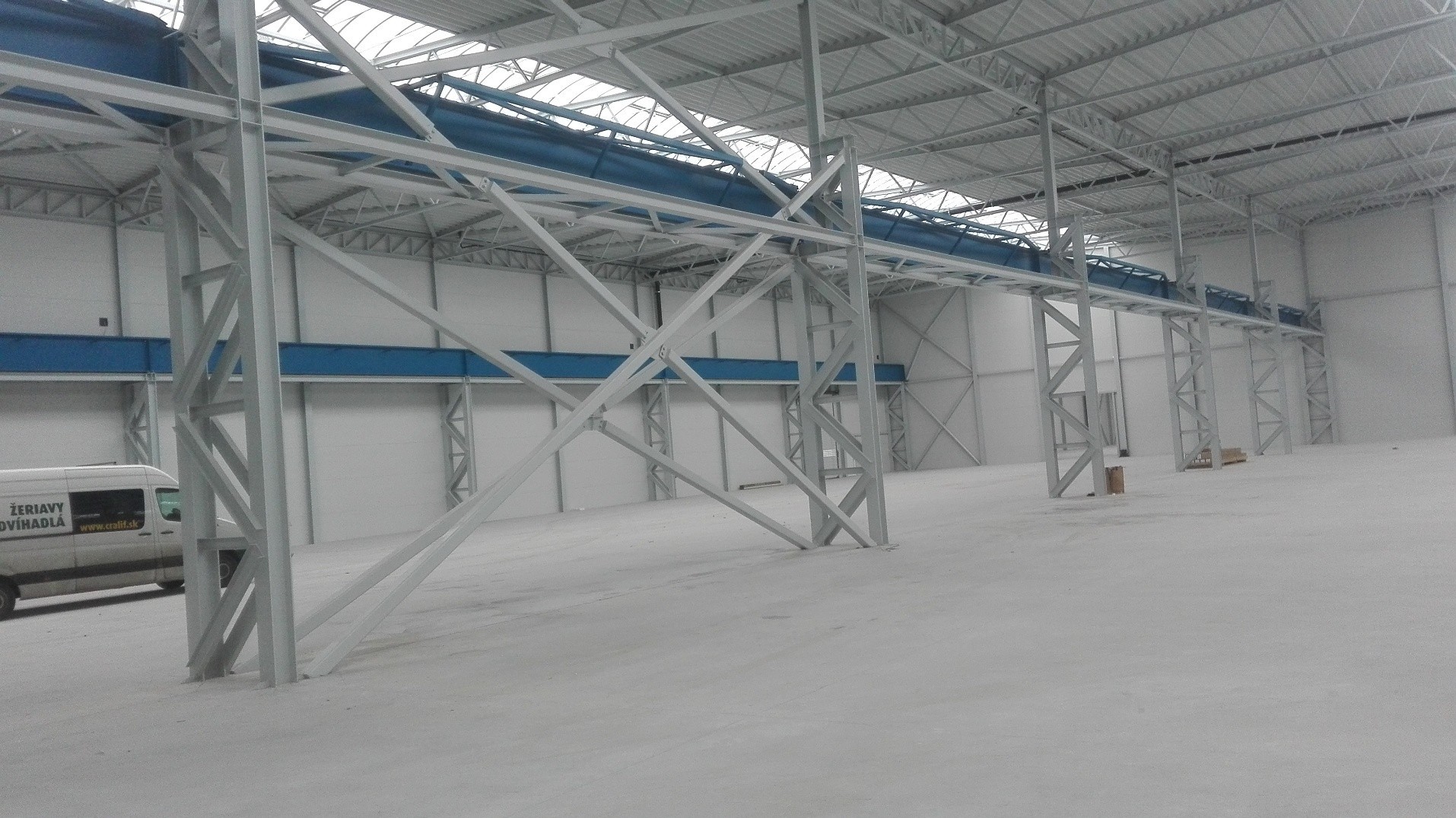

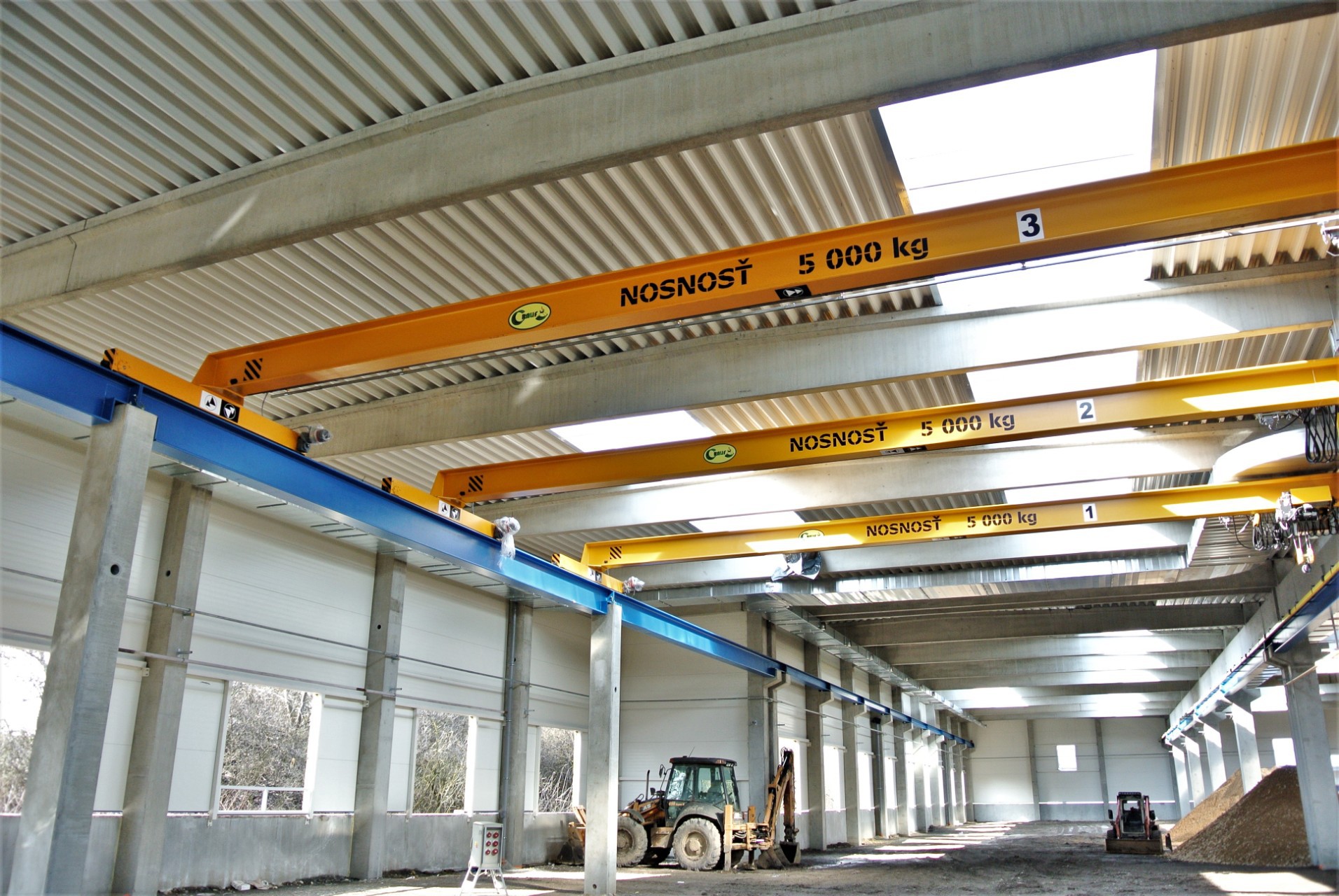

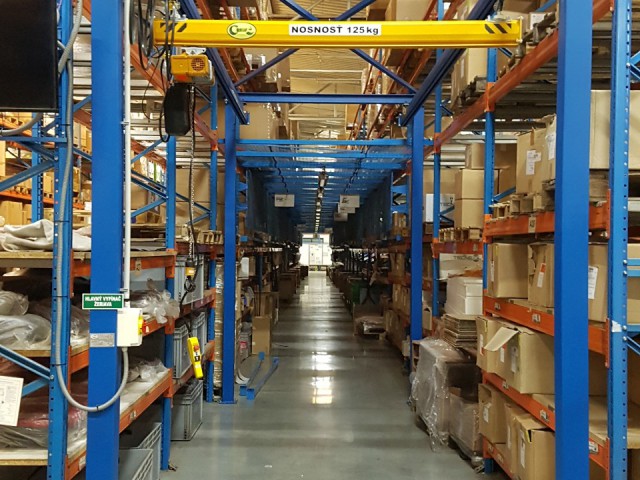

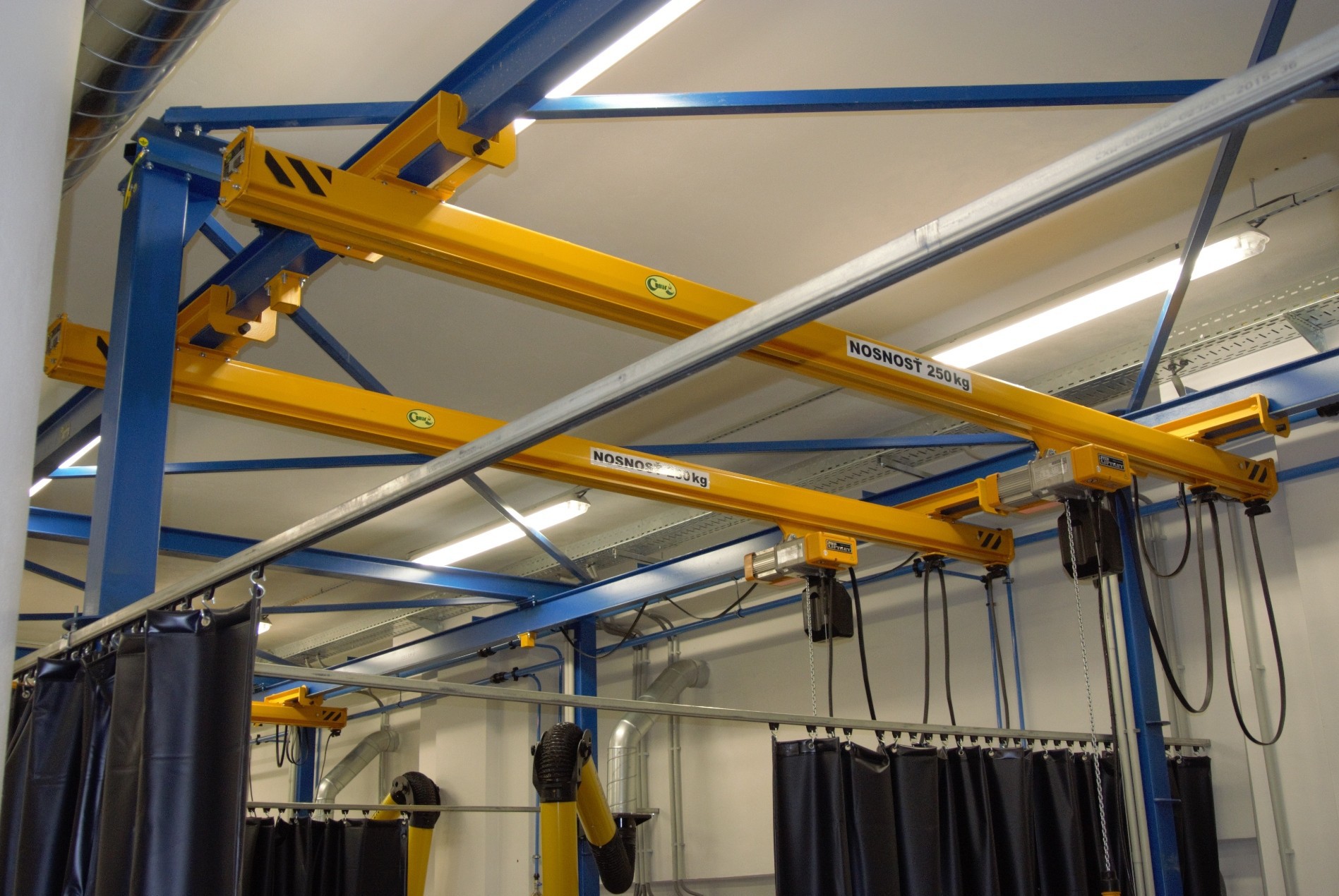

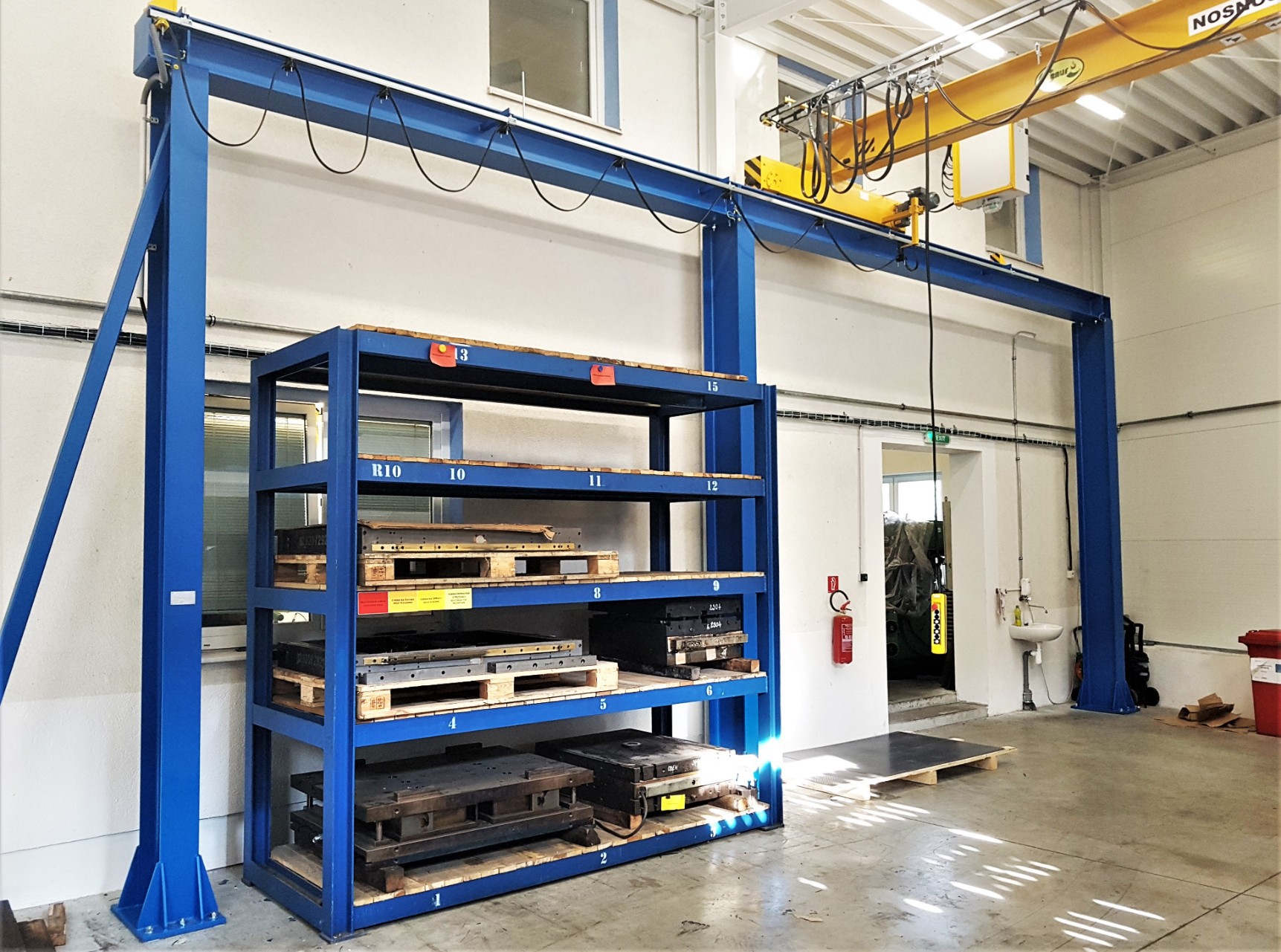

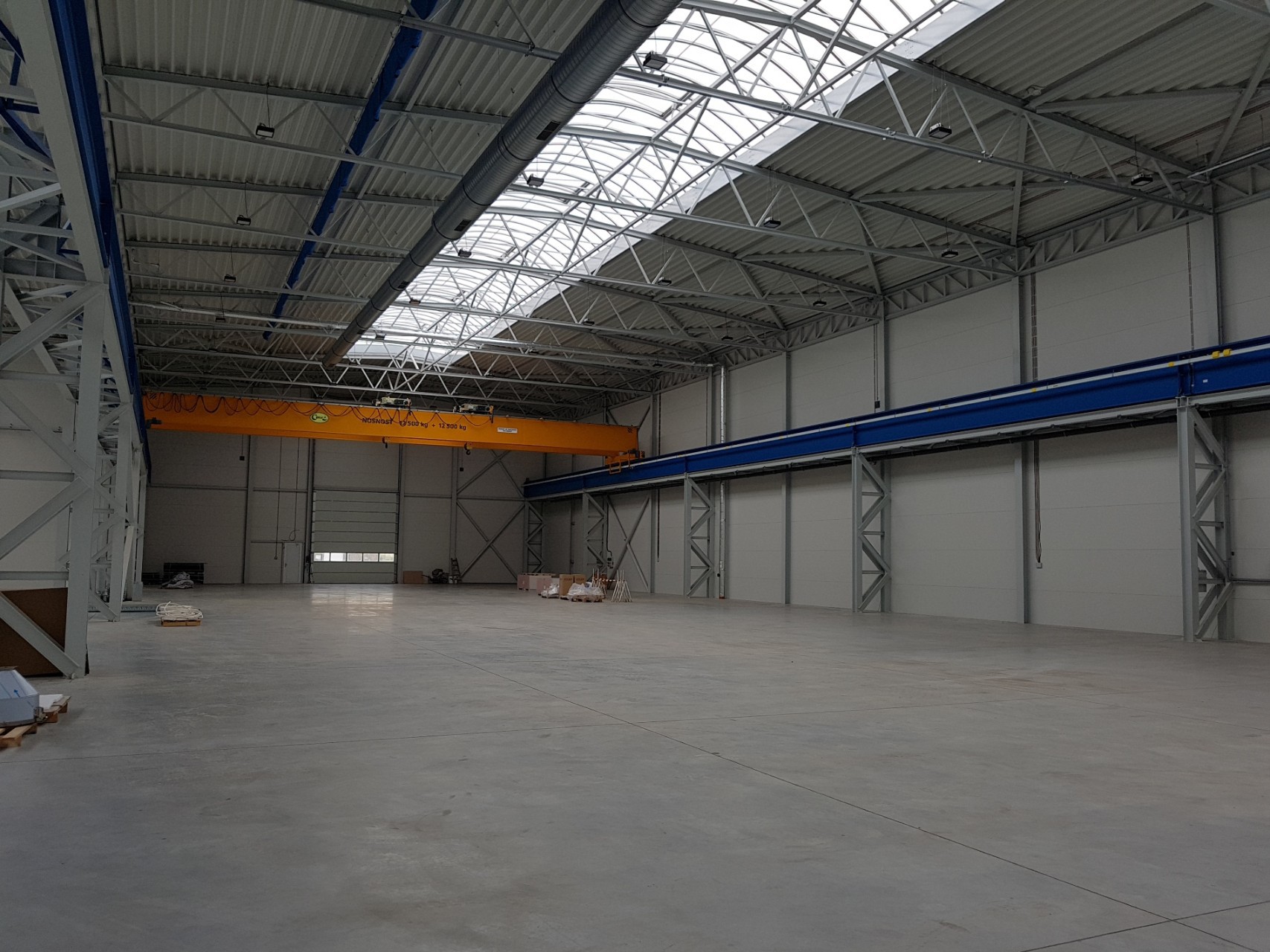

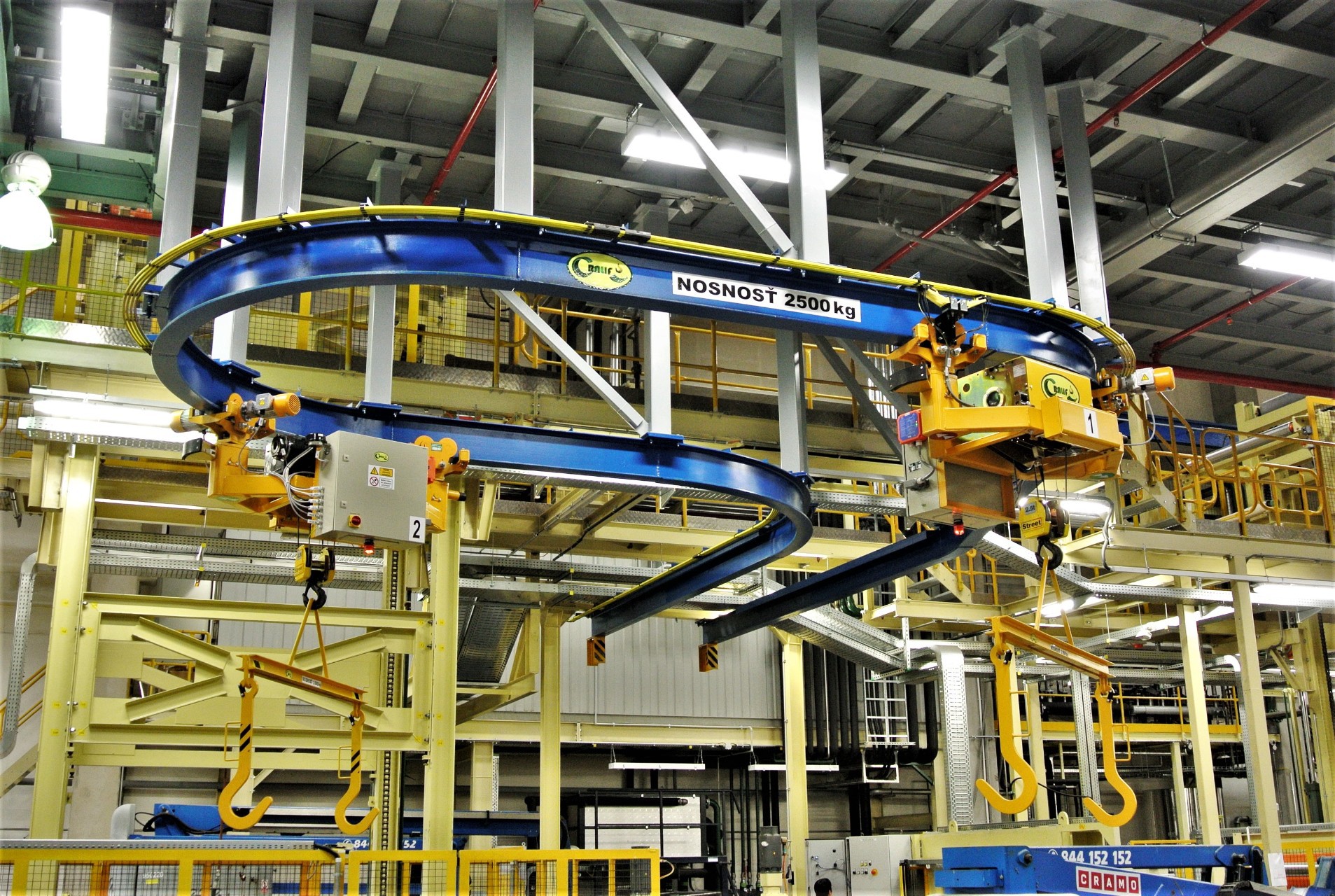

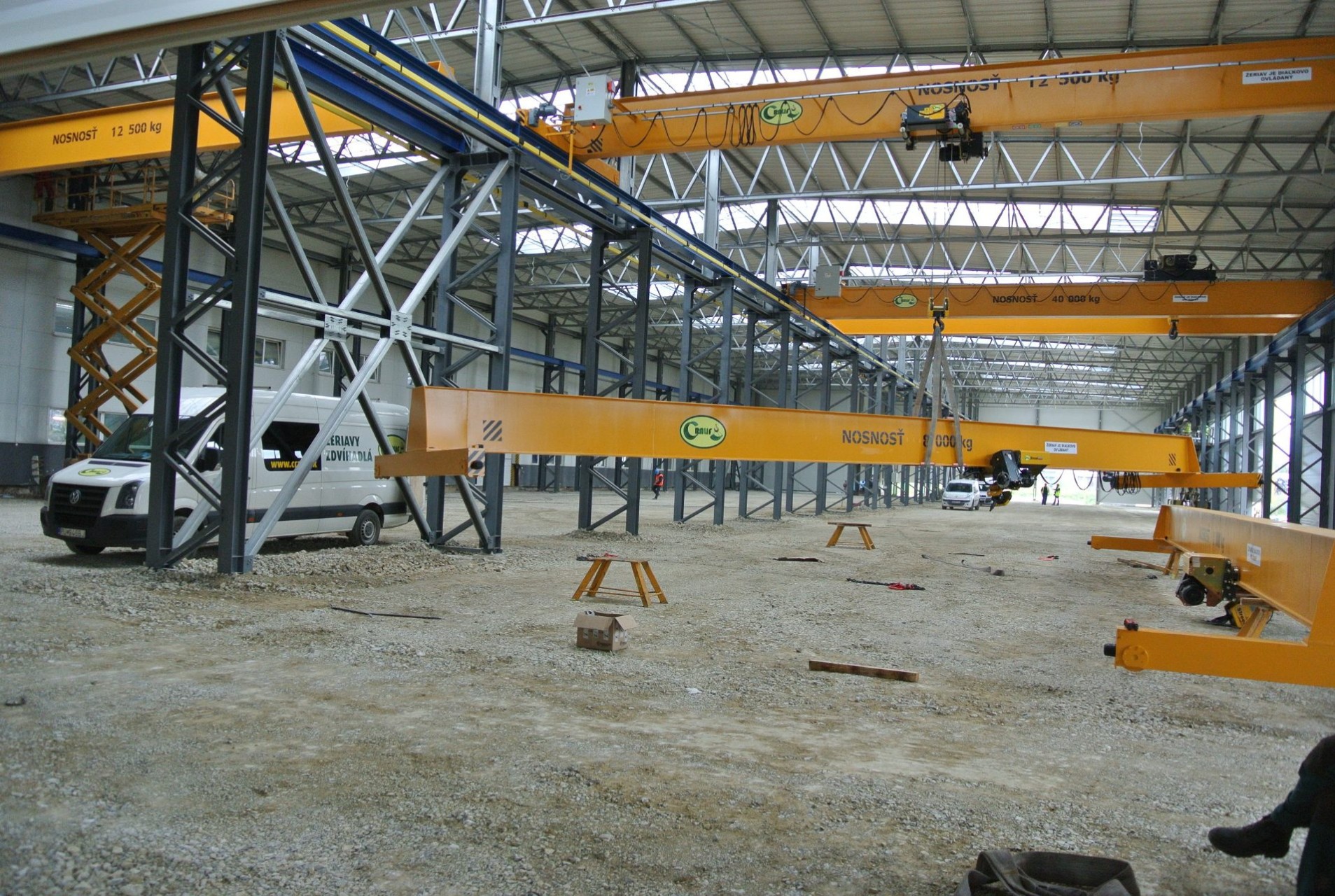

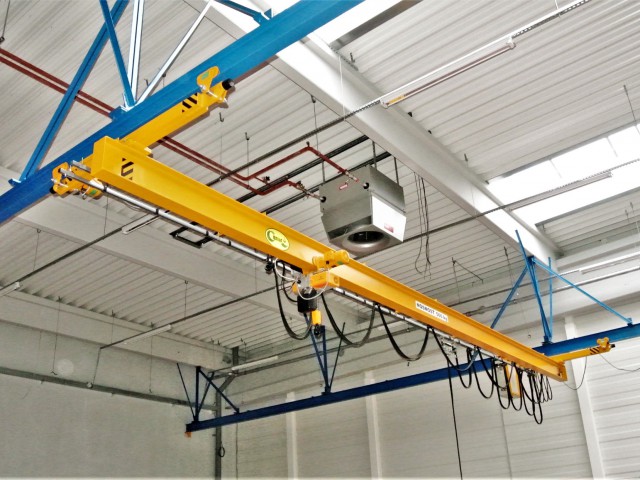

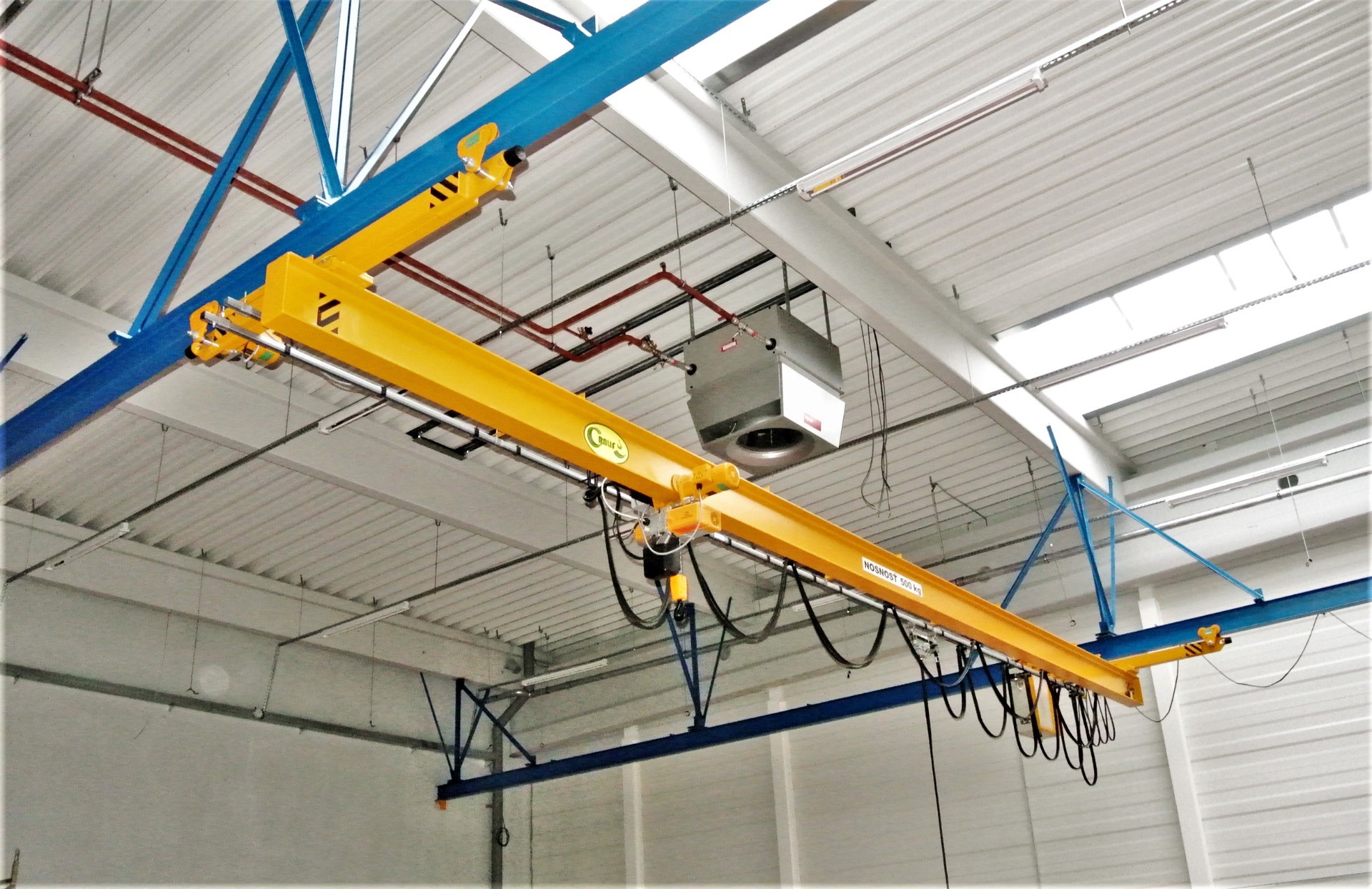

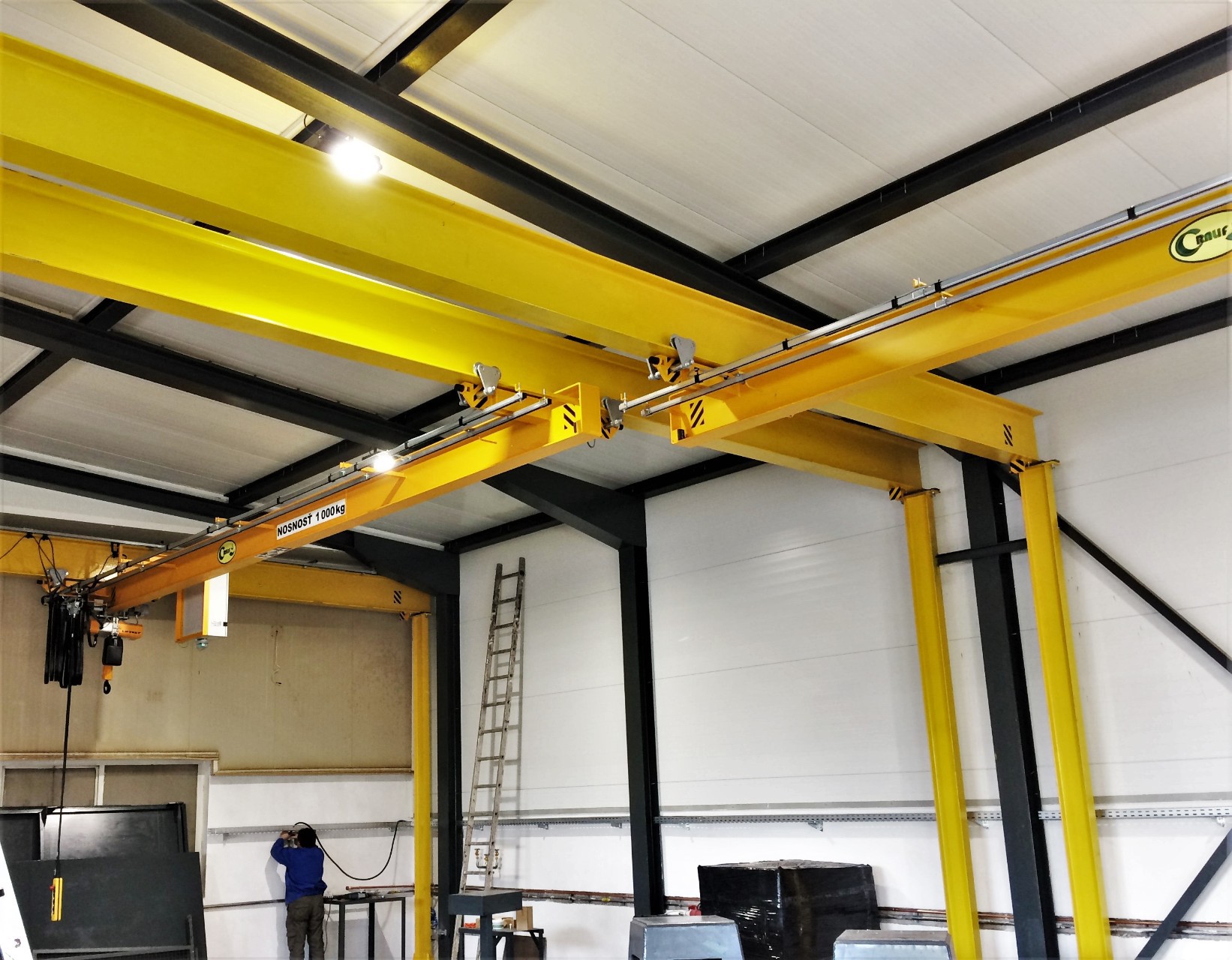

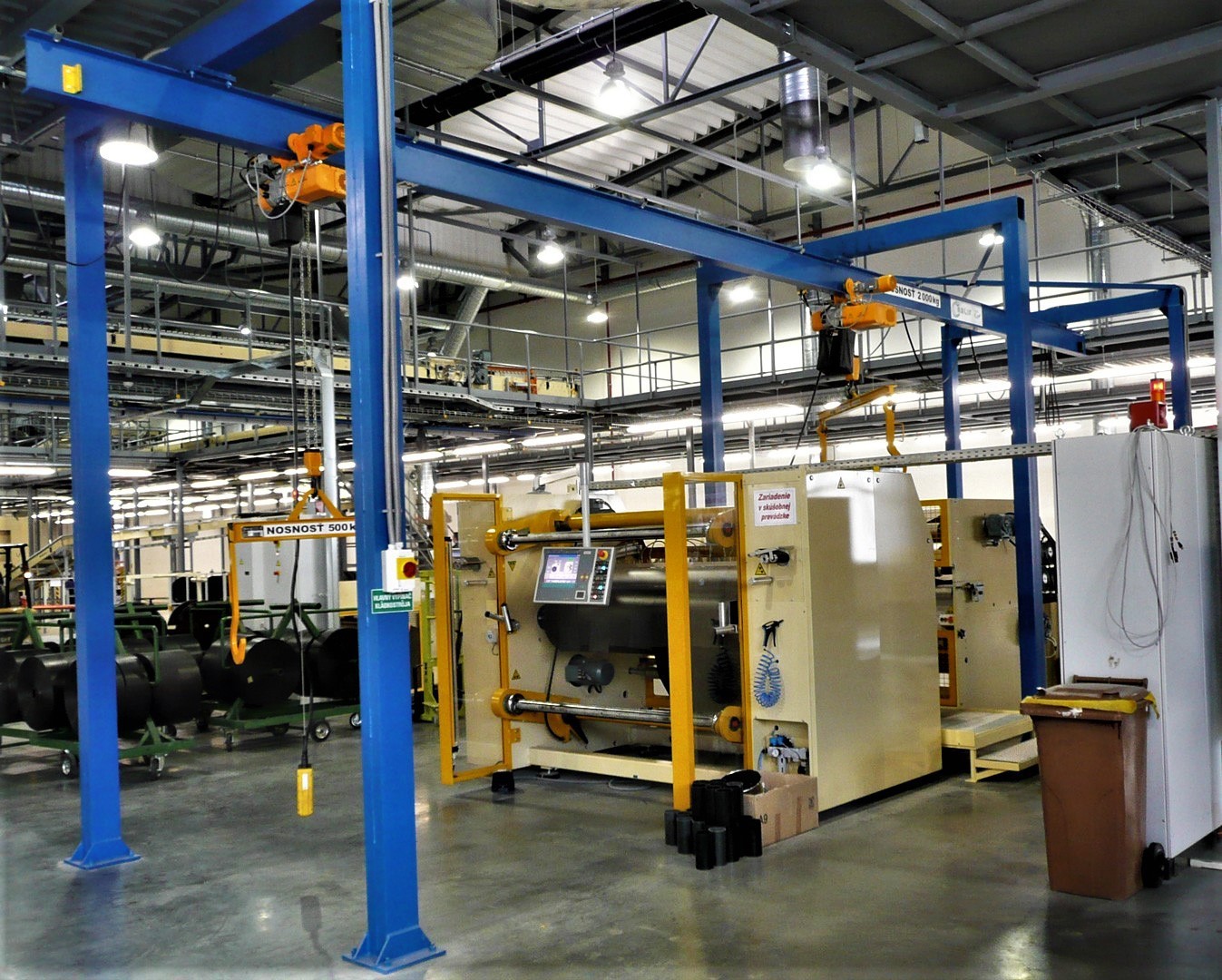

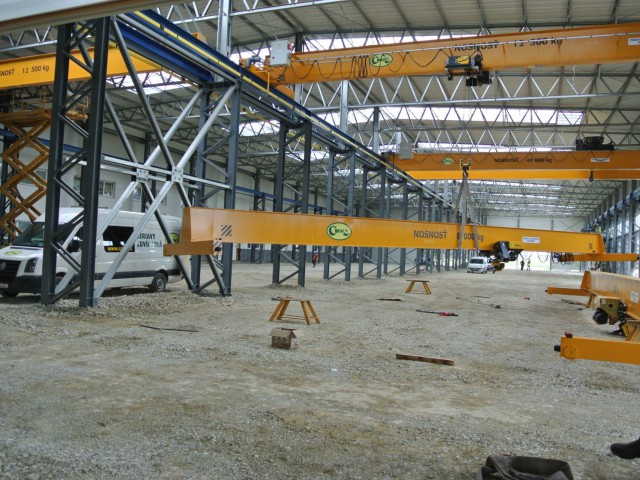

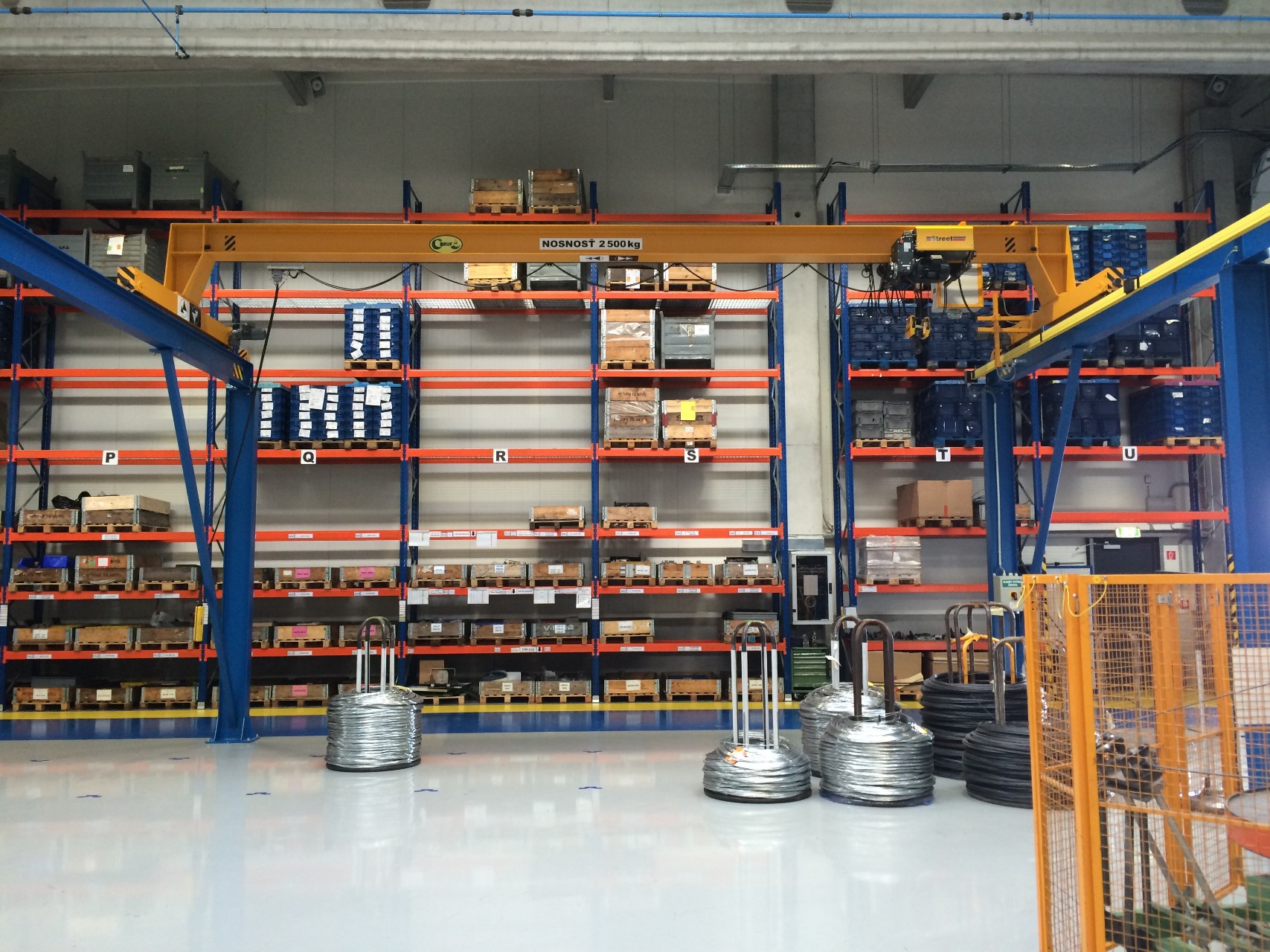

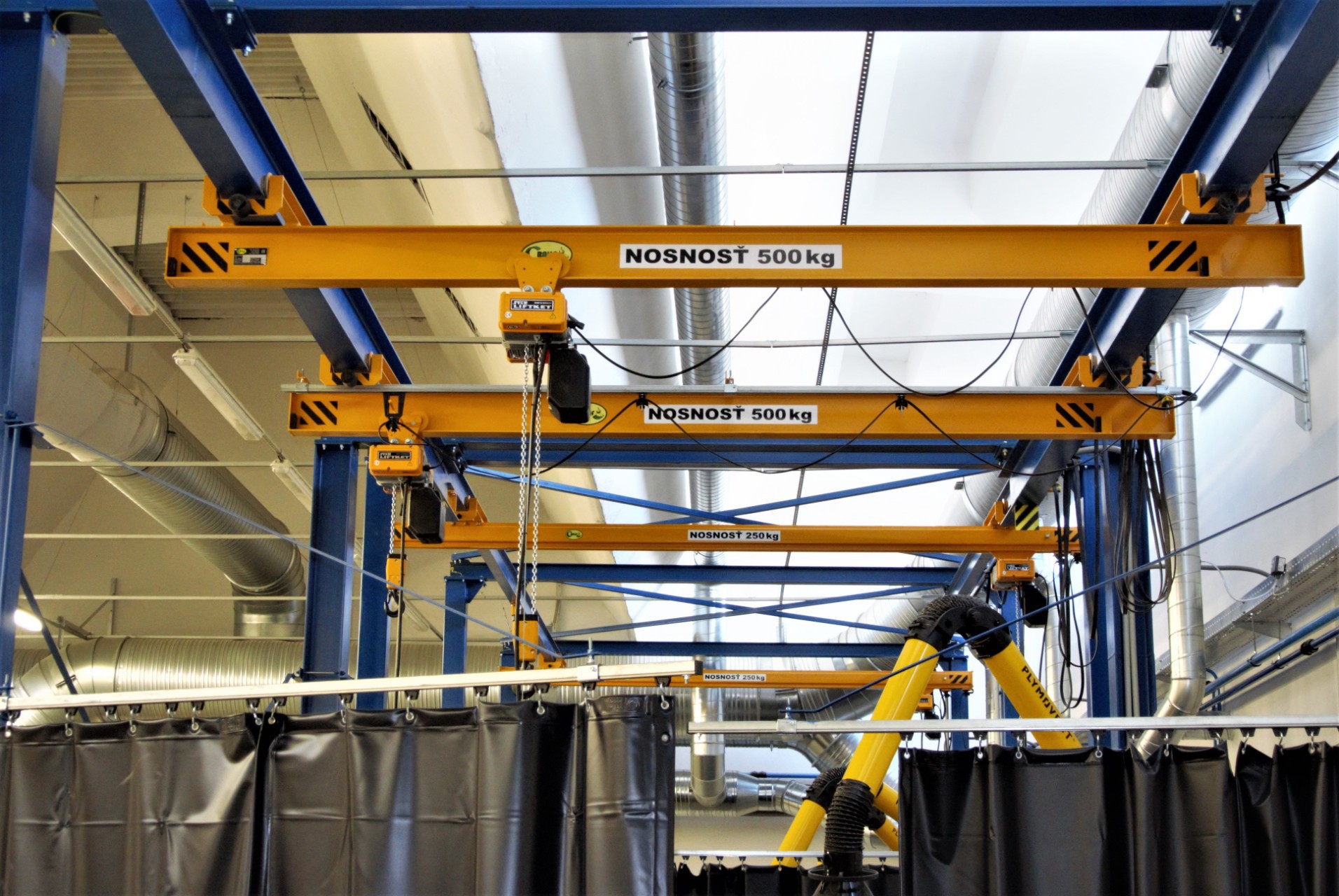

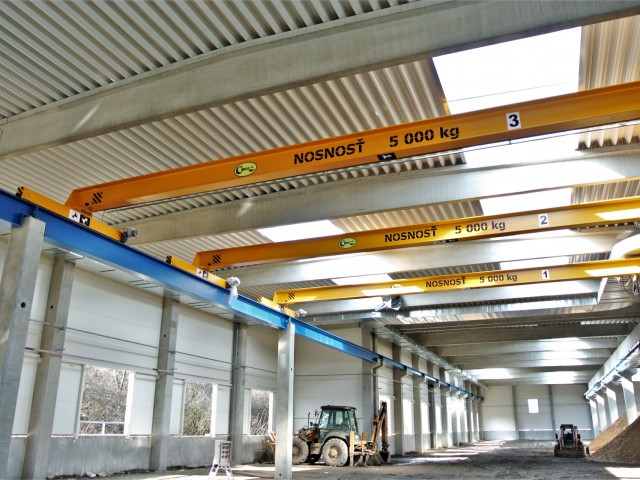

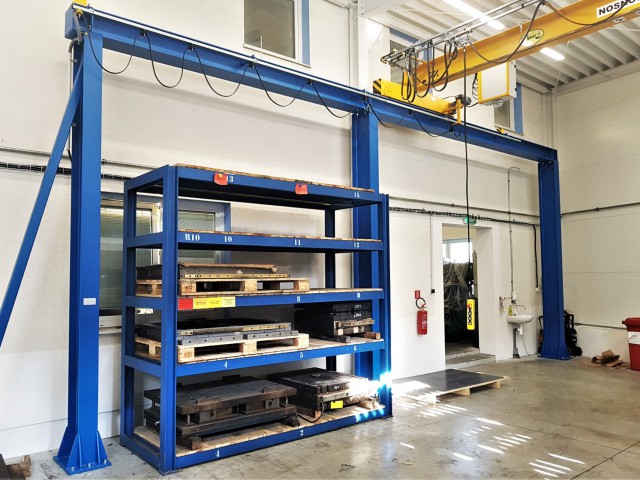

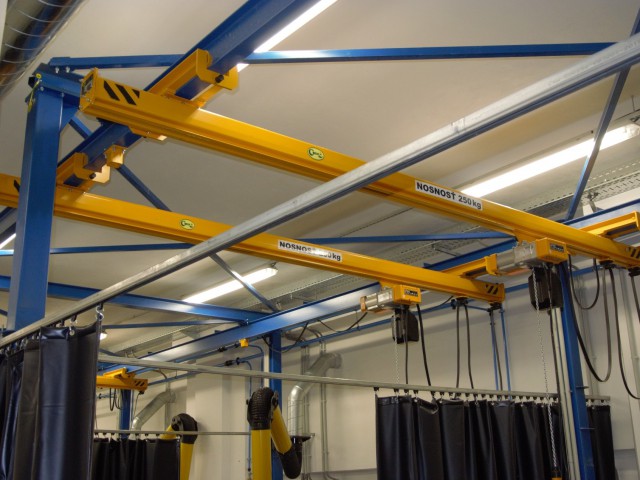

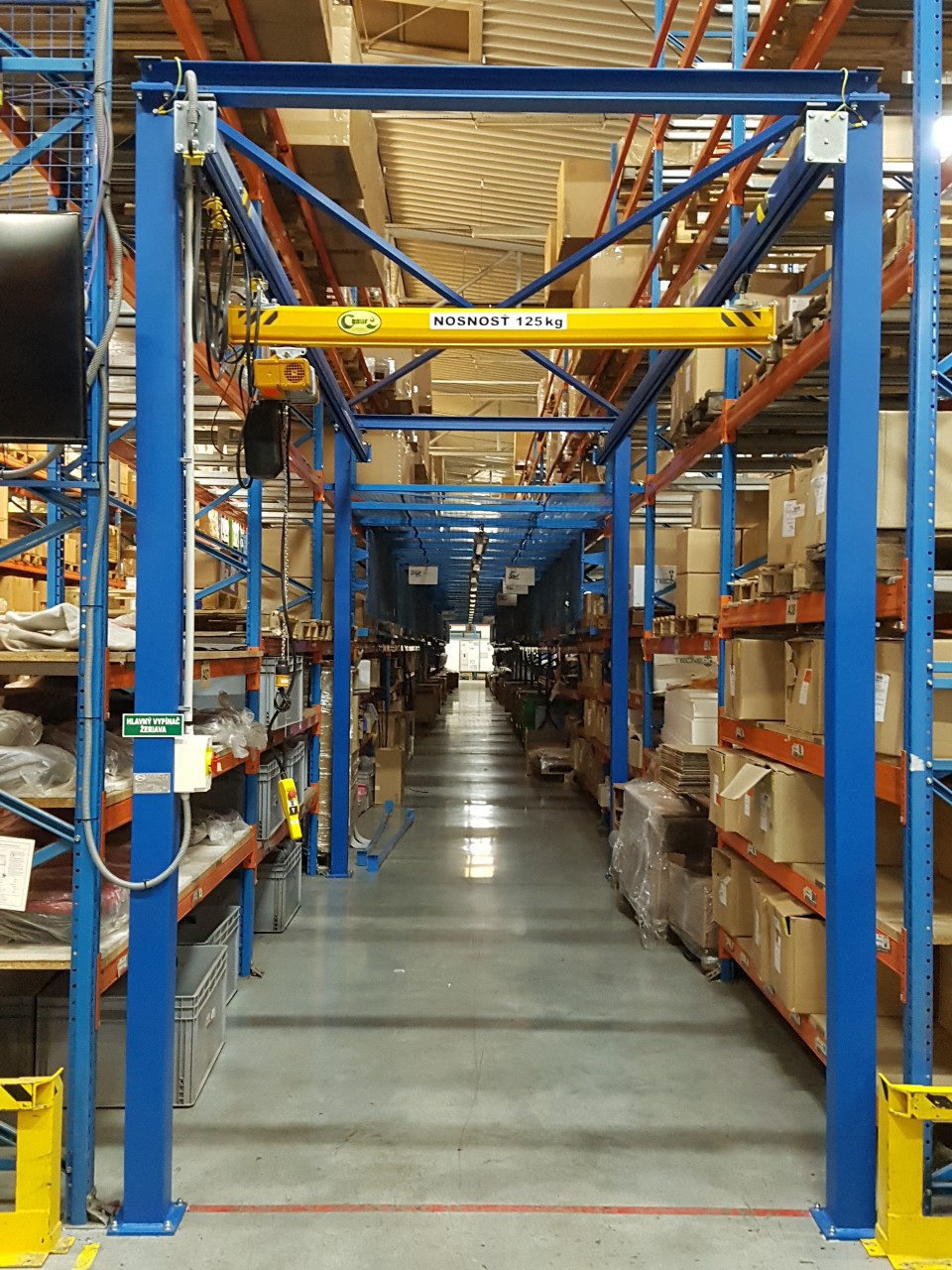

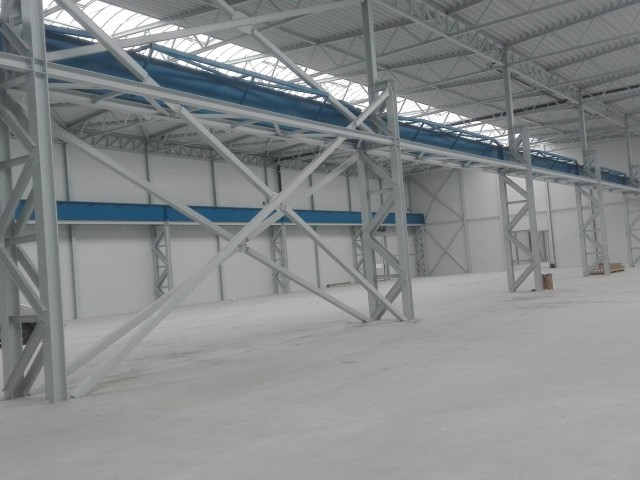

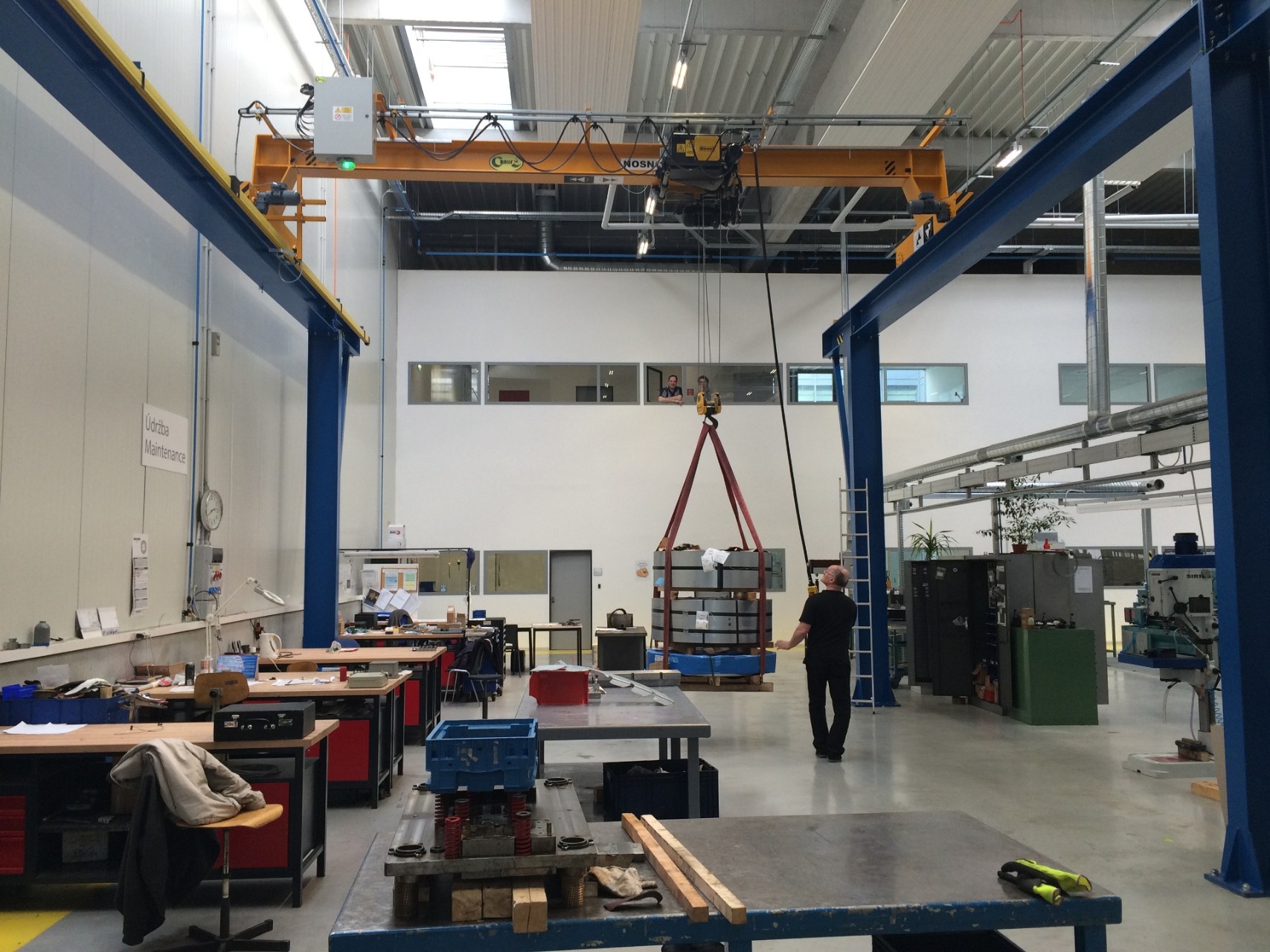

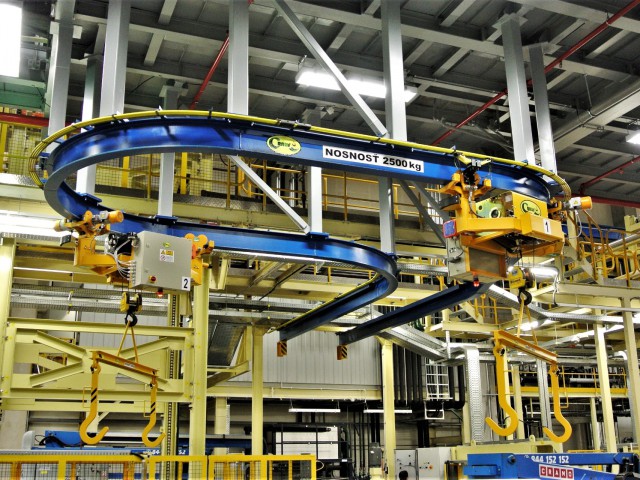

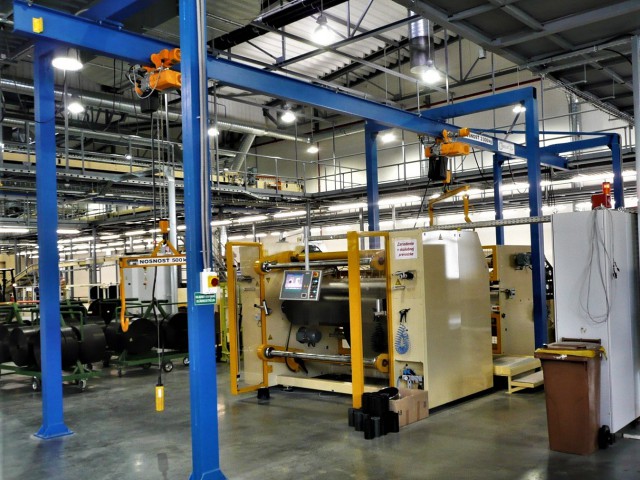

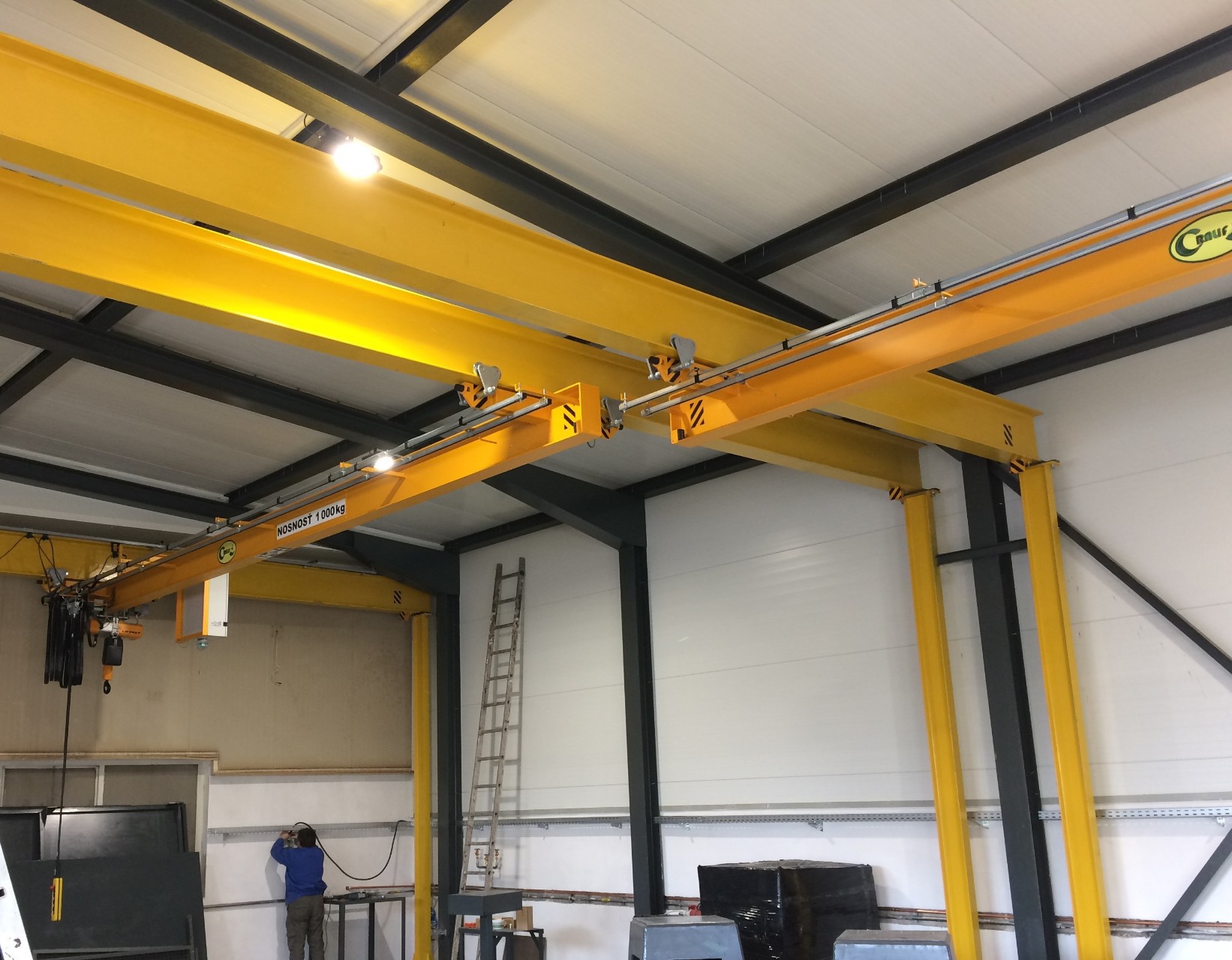

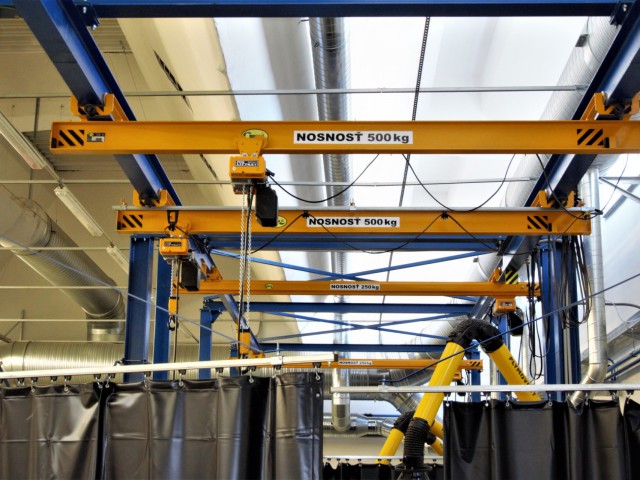

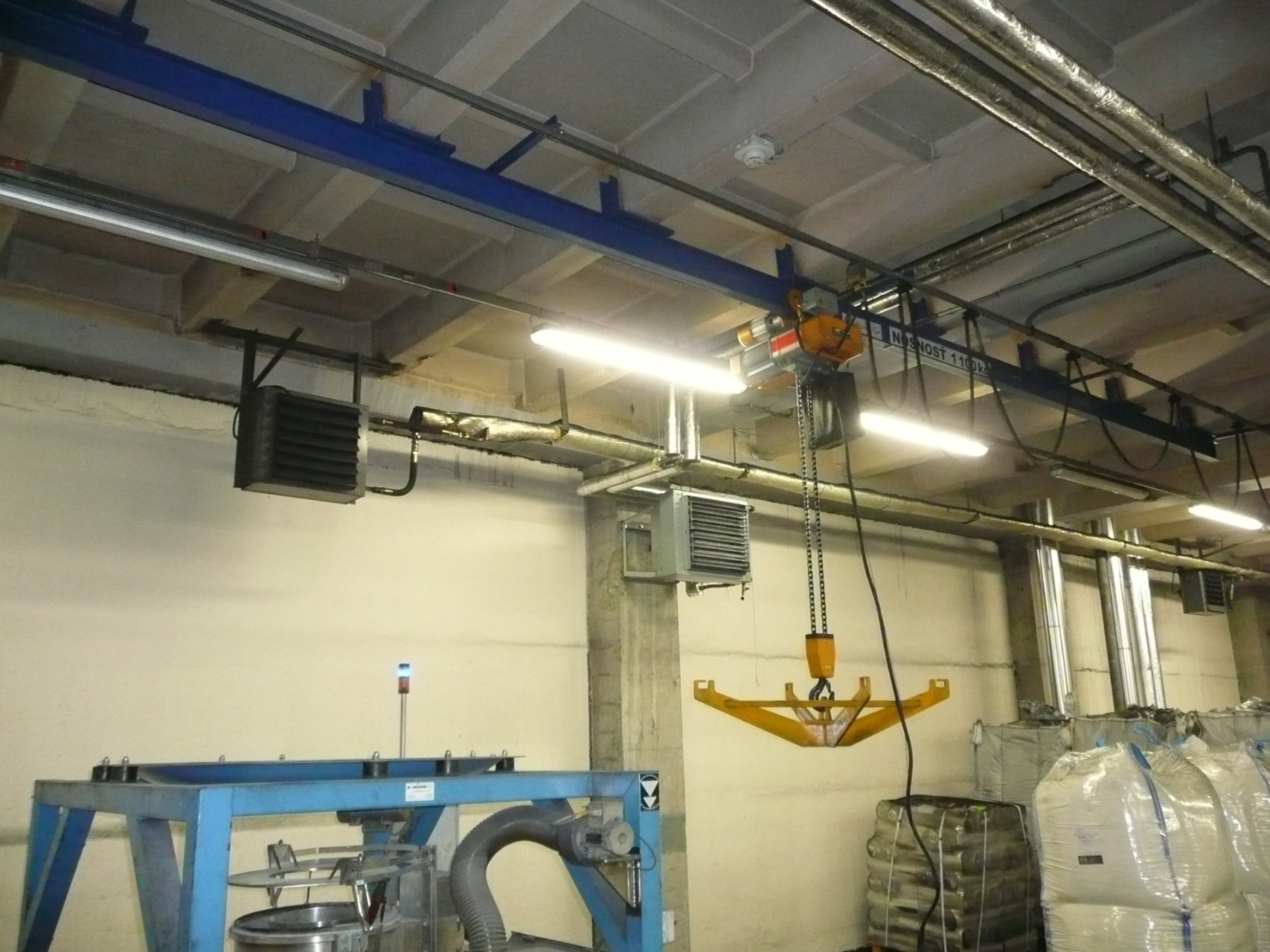

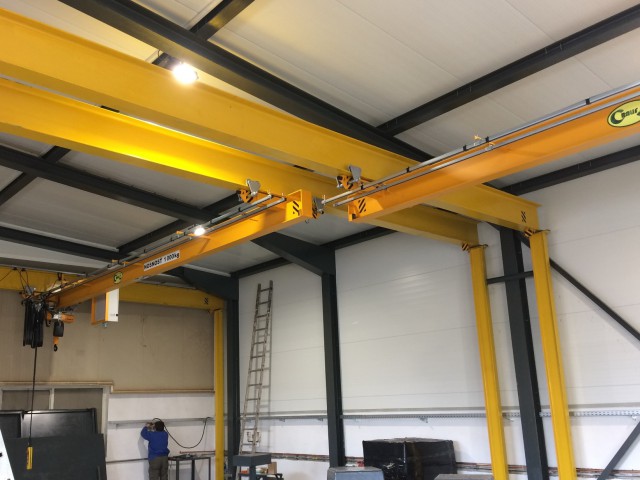

UNDERSLUNG RAILWAY   INDEPENDENTLY STANDING RAILWAY   RAILWAY FOR MONORAIL CRANES   RAILWAY ON PILLARS



 Technical information

The maximum load bear capacity 250 t
The colour RAL 5017
Profile type cold rolled HEA, IPE profile, box weldment made of rolled metal sheets

Material

S235JR, S355JR

Crane railways´ rail is made of

steel bar with a square or rectangular cross-section; the quality: S355JR, with proportion 30x30, 50x30, 60x40

Crane railway power supply

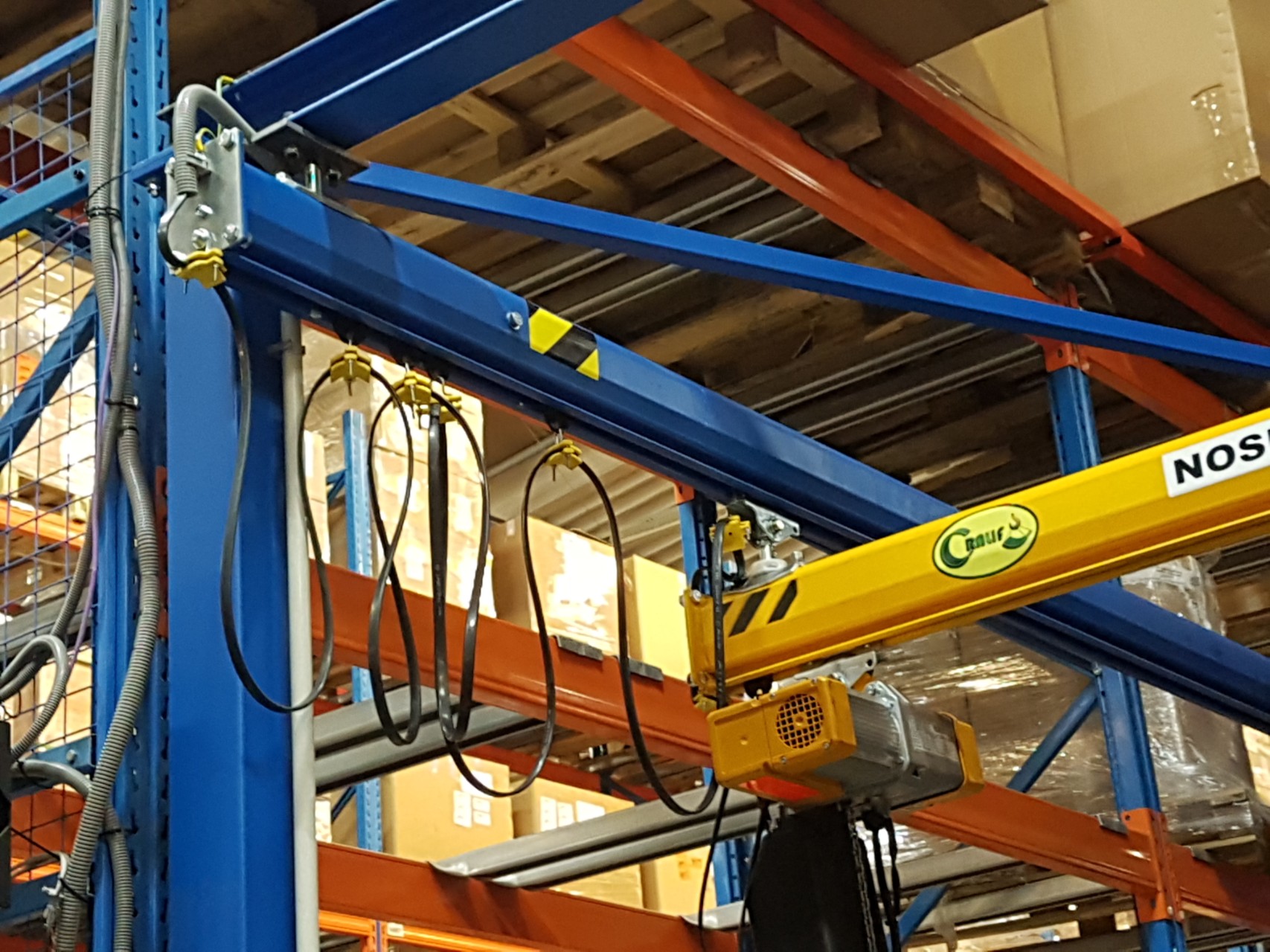

by a cable trolley WAMPFLER W230, W240 or by a covered plastic trolley WAPFLER W842

For all our crane railways is possible altitude and directional equalizing due to crane railway girder anchoring using rectification plates
Warning yellow stripping according to STN 018012-1,2 at dangerous places









 Advantages

  • They facilitate load handling and increase work efficiency
  • The possibility of crossing between crane railways what enables crane operating from different workplaces

















 Accessories and Option

  • The colour of a steel construction according to customer´s requirements
  • Complete crane railways assembling including welding works by trained certificated specialists on the spot
  • Crane railway project made to measure according to customer´s requirements
  • Trolley or cable power supply
  • Crane railways´ components: trolley drive wheels, trolley engines, bumpers, power supplying, end carriages…
  • A final coat
  • Performing of prescribed heavy-duty tests and geodetic measurement
  • In case of need, our company is able to manufacture walk-through bridges along the entire crane railway´s length and service platforms according to customer´s requirements. As a part of service platforms or bridges there could be a ladder or staircases serving as an entrance to bridge or platform as well
