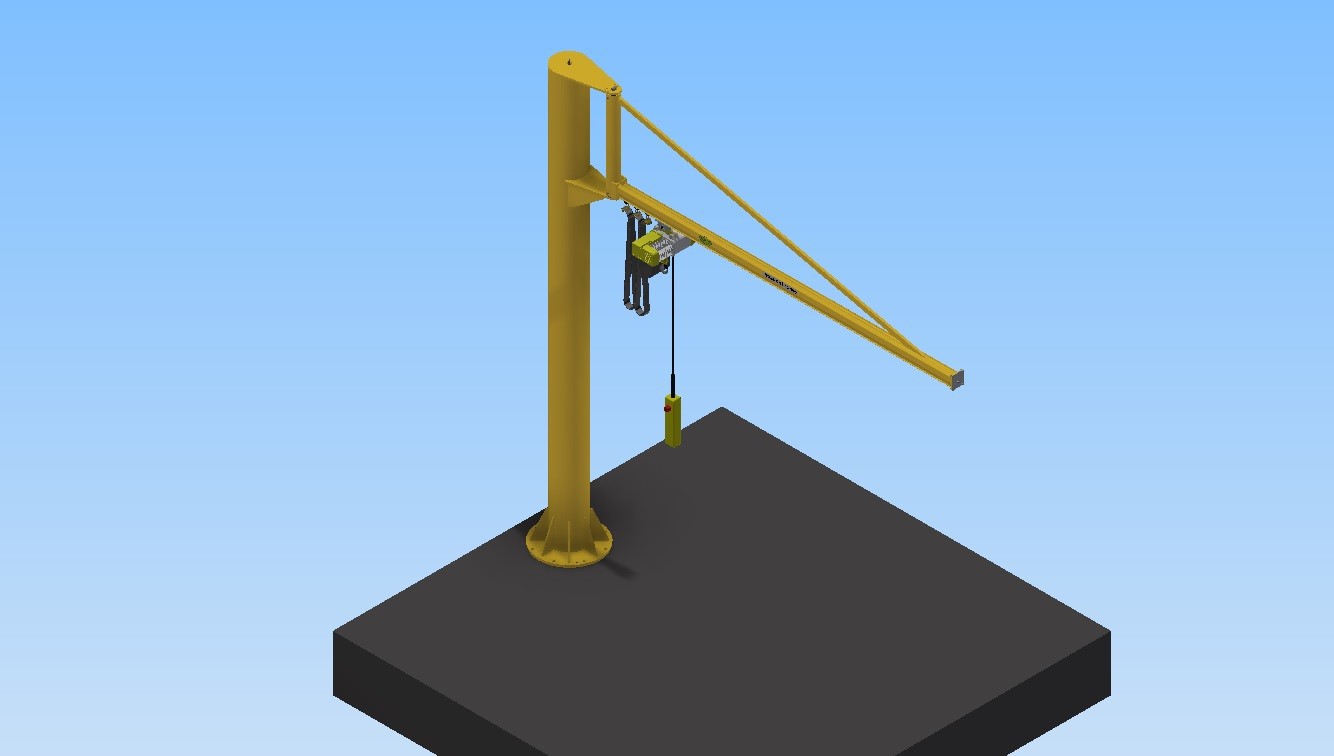

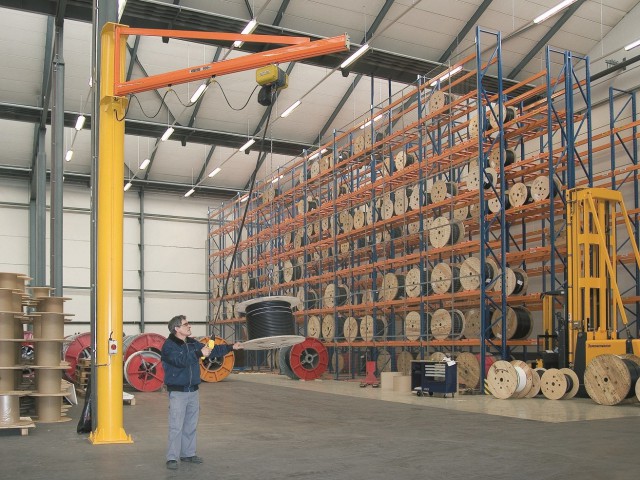

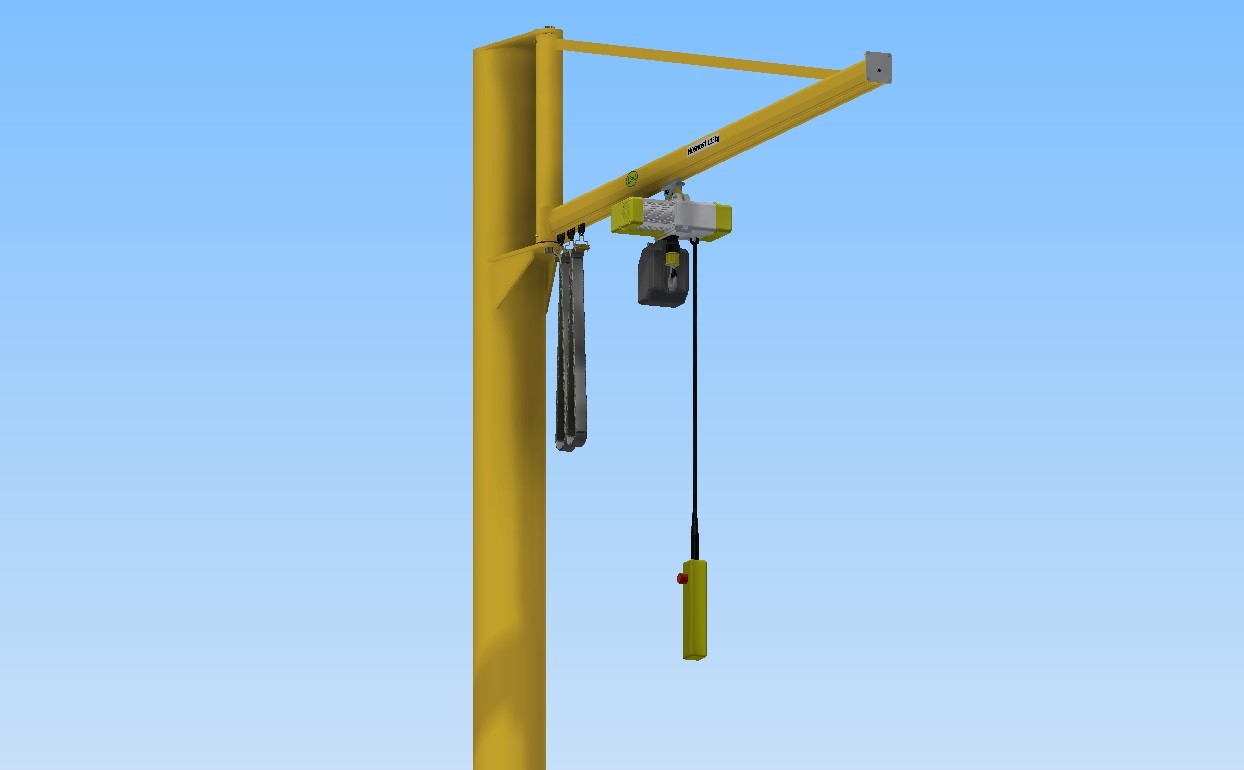

Slewing jib pillar cranes and wall slewing cranes offer simple and economically favourable way of operation of smaller working places. Considering the required unloading and load bear capacity, 4 different sizes of supporting profiles are used. All profiles are hollow what guarantees lower height of the crane, and lower straining of ground, walls or a steel construction connected with it.
|
Due to flexibility and production made to measure, anchoring of cranes to grounds, walls, ceilings and to pillars of constructions without any encroaching on the pillar construction, or to existing construction at the work place is possible. Cranes are endowed with slewing angles up to 270°. |
Technical information| The maximum load bearing capacity | 1 000 kg |
| The colour | RAL 1007 for the crane |

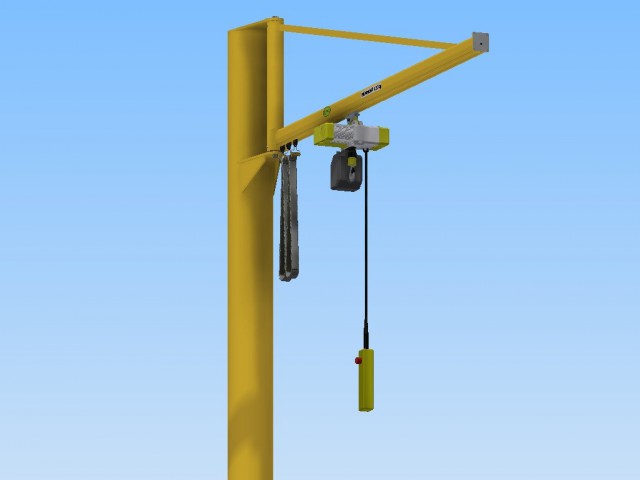

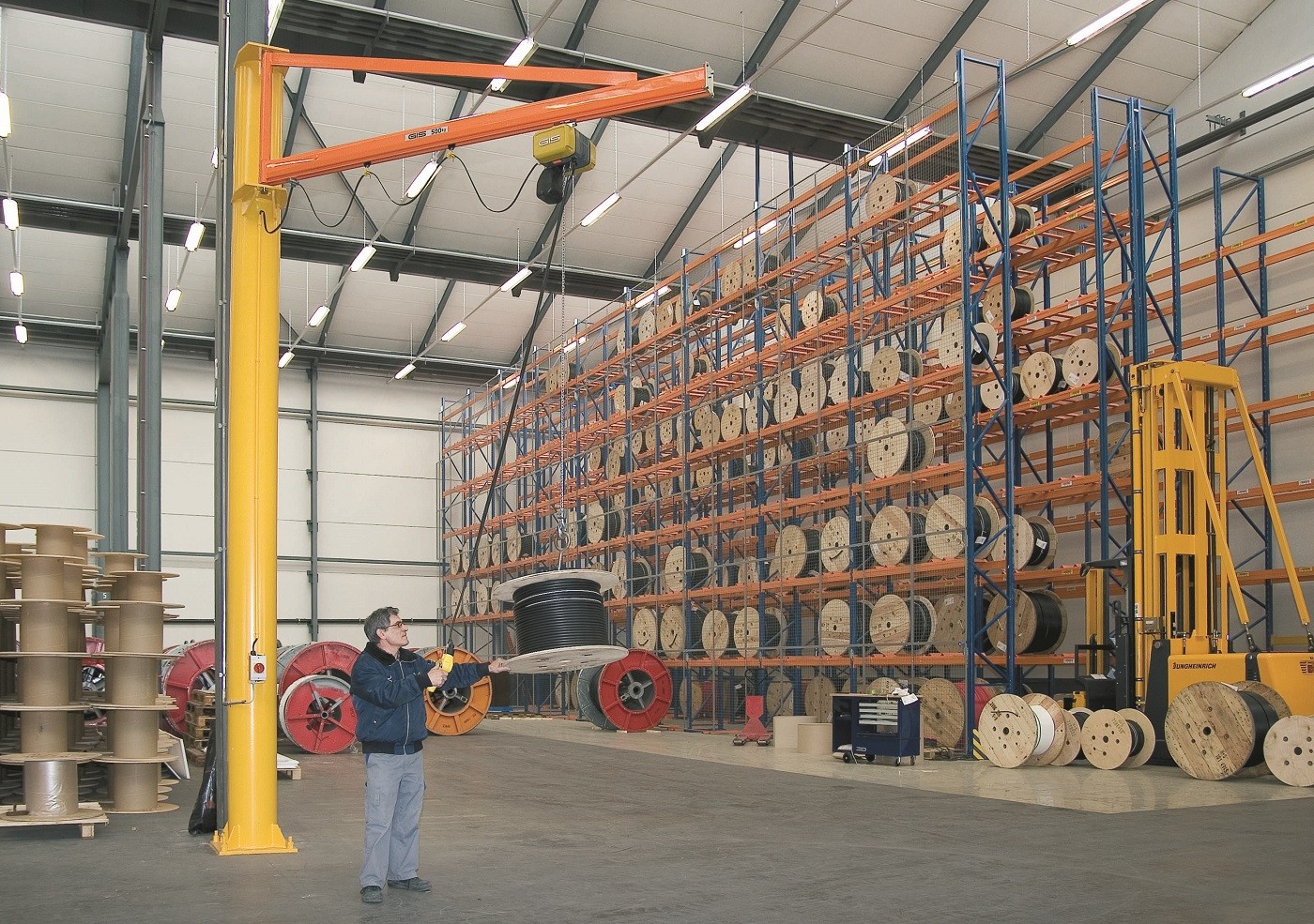

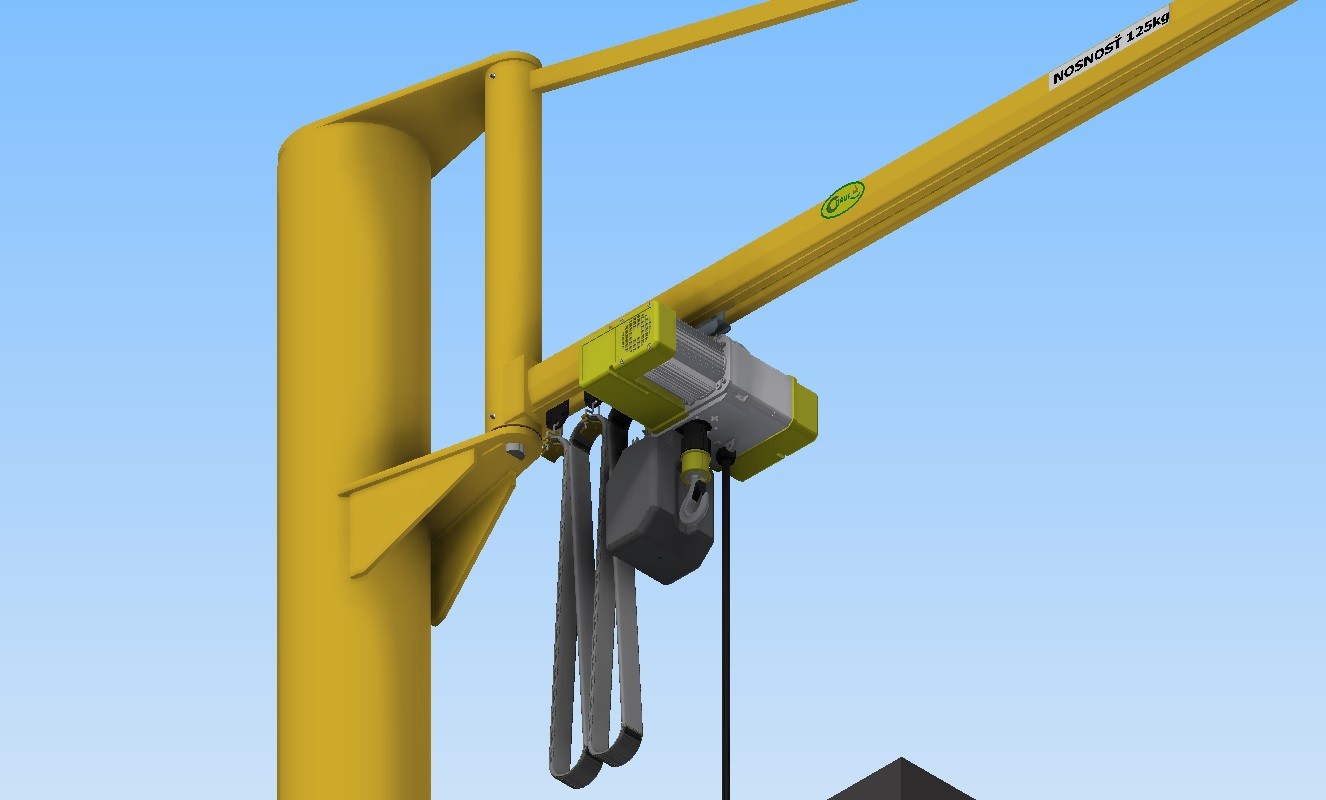

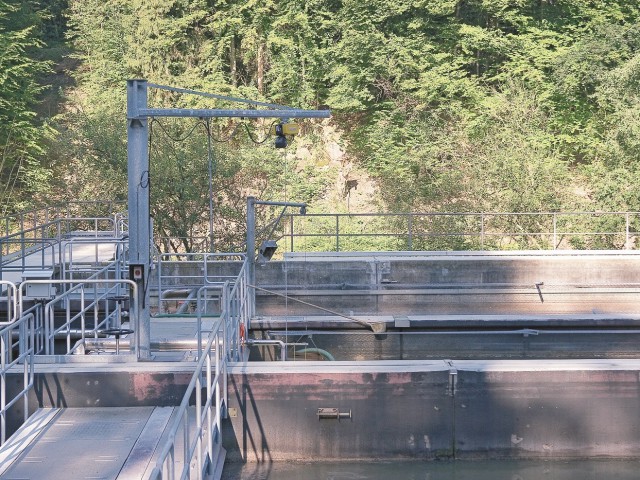

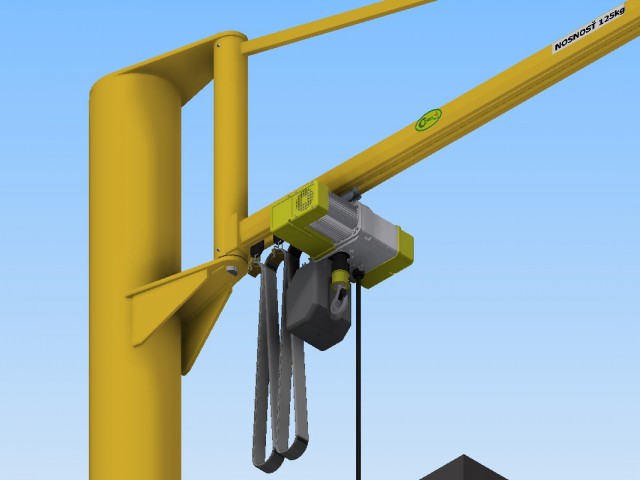

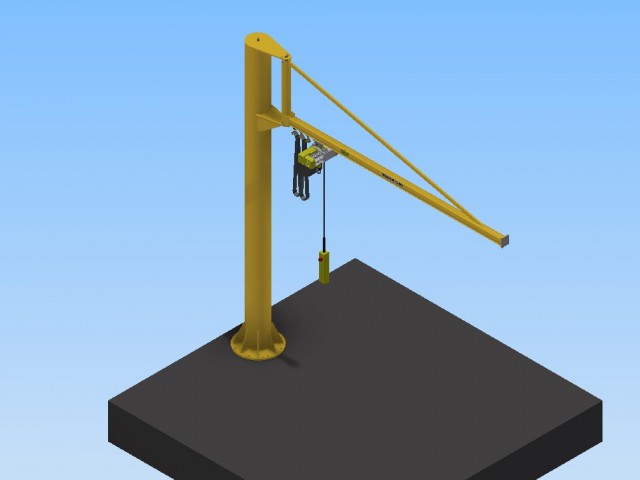

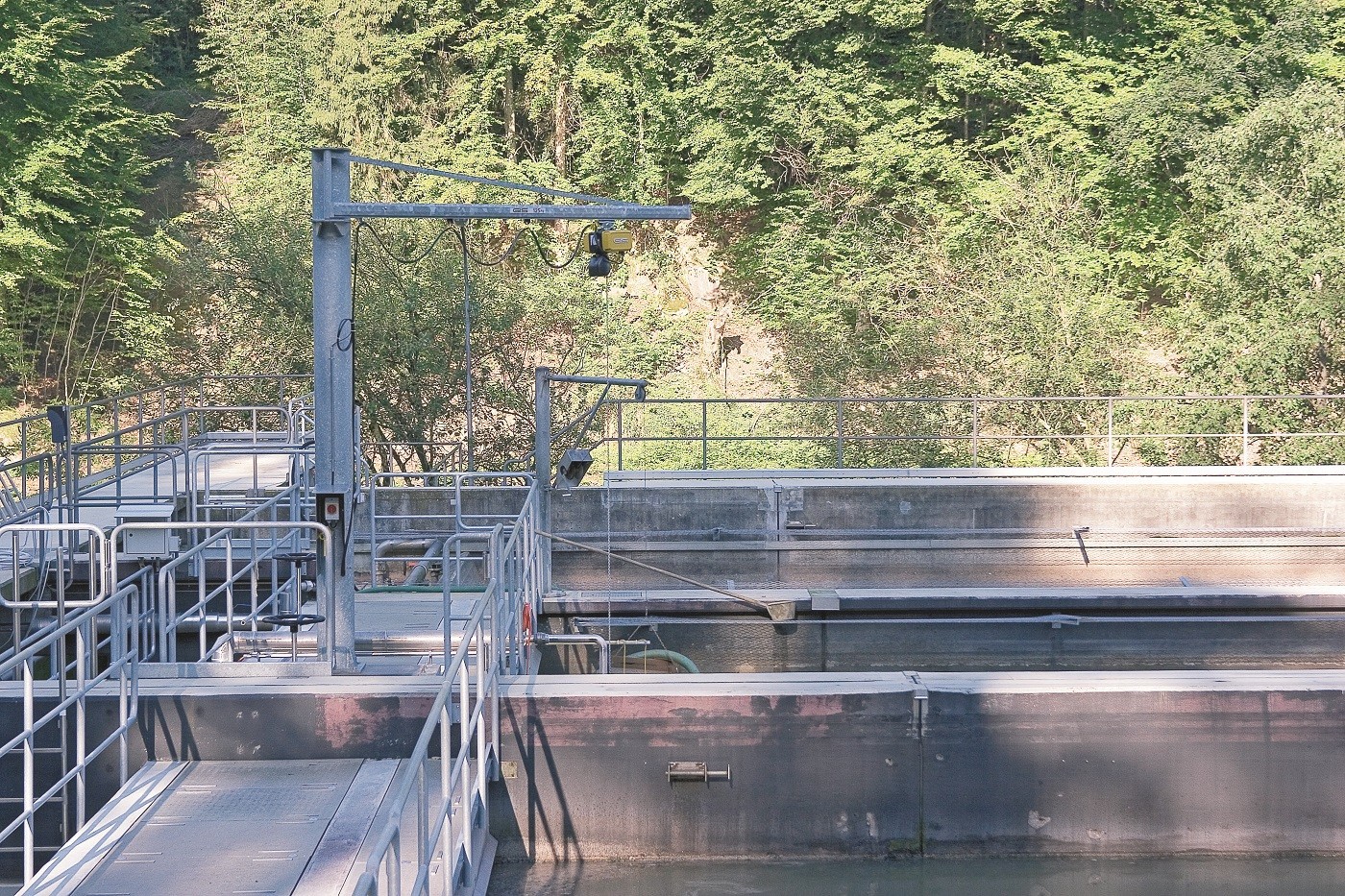

| Crane setting | interior slewing jib pillar cranes |
|
Chain hoist |
manual or electric |
| Arm slewing | manual arm slewing |
|
Drive wheels |
plastic trolley drive wheels guarantee low noise level |
|
The height of pillar |
up to 4,2 m; higher according to customer´s requirements |
|
The pillar is anchored |
right into the ground |
|
|
|
|
|
 |
Technical information| The maximum load bearing capacity | 1 000 kg |
| The colour | RAL 1007 for the crane, RAL 5017 for the anchoring construction |

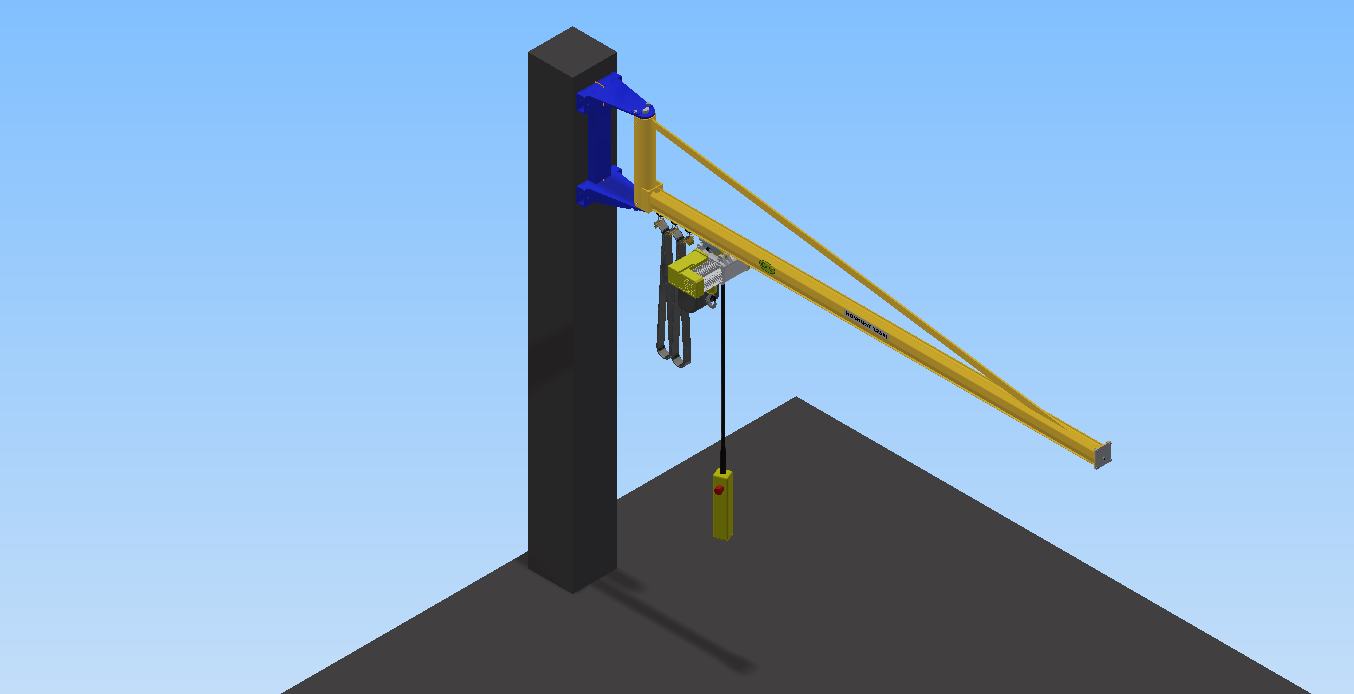

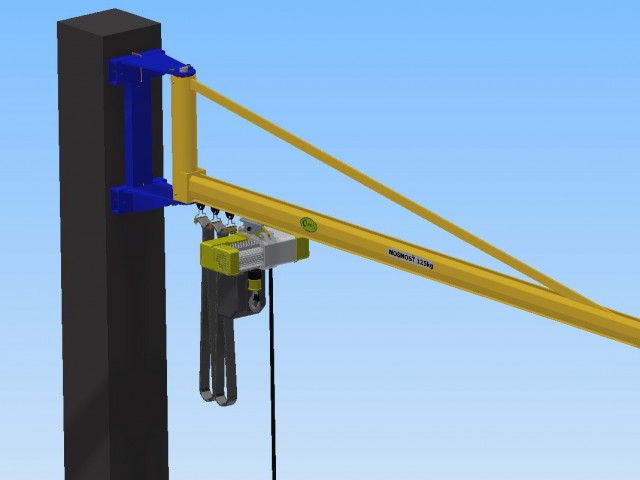

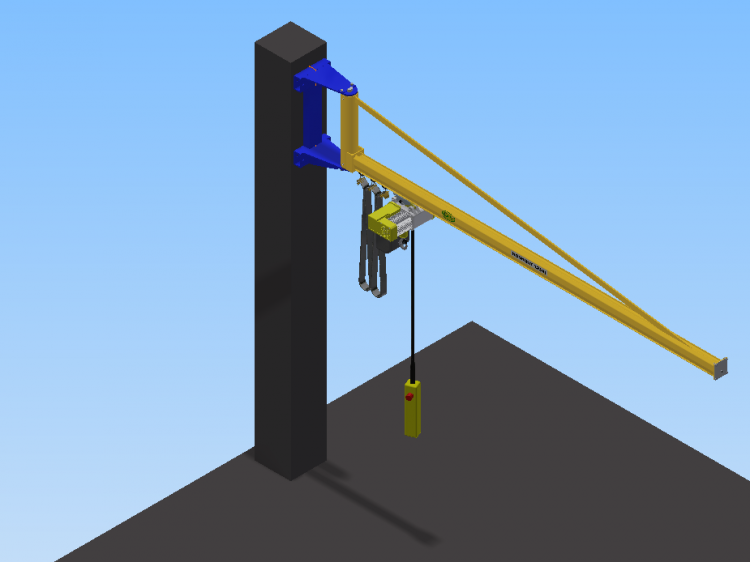

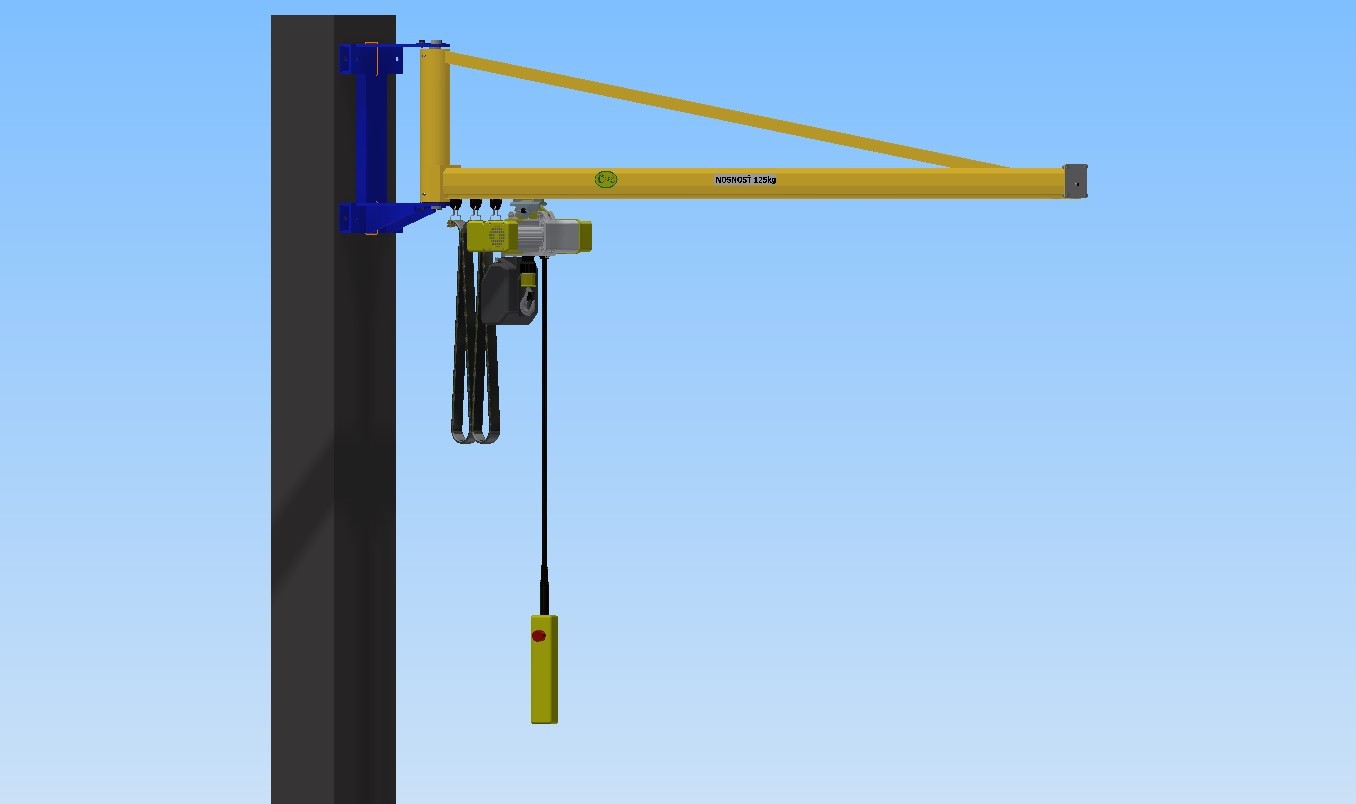

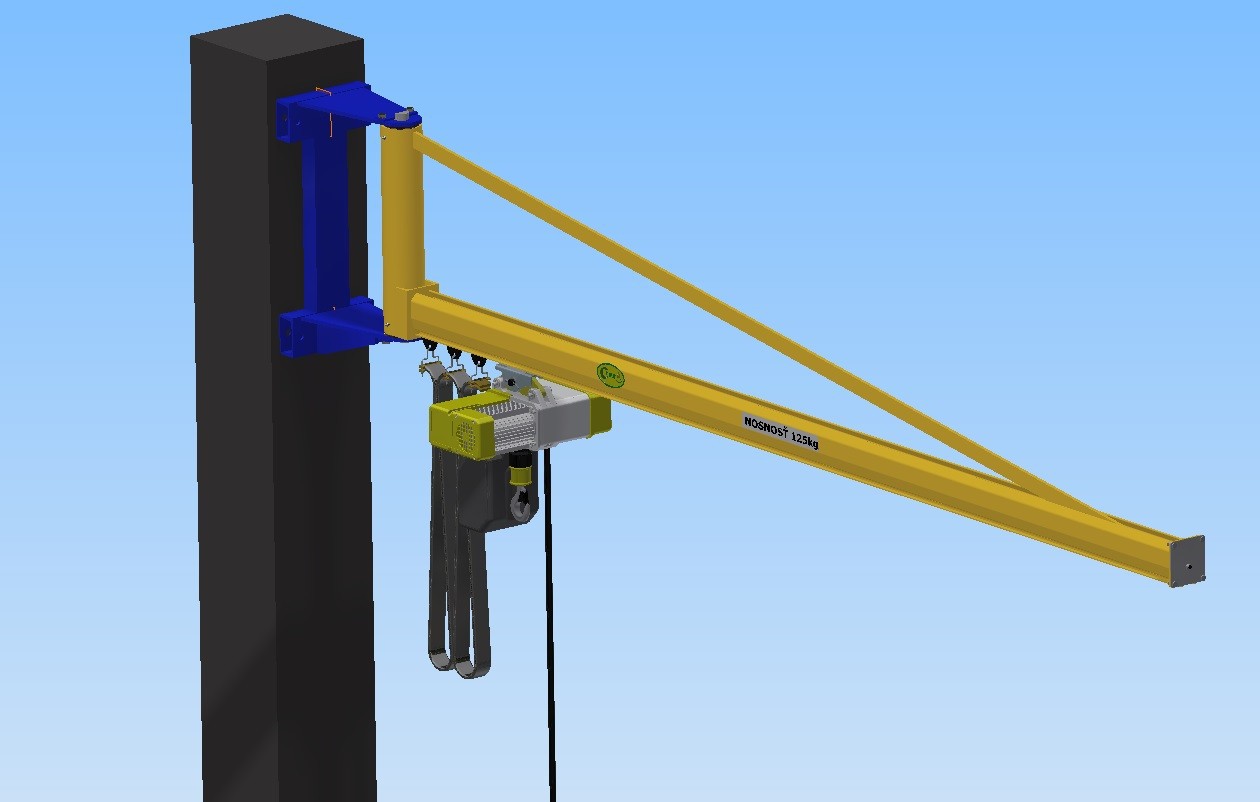

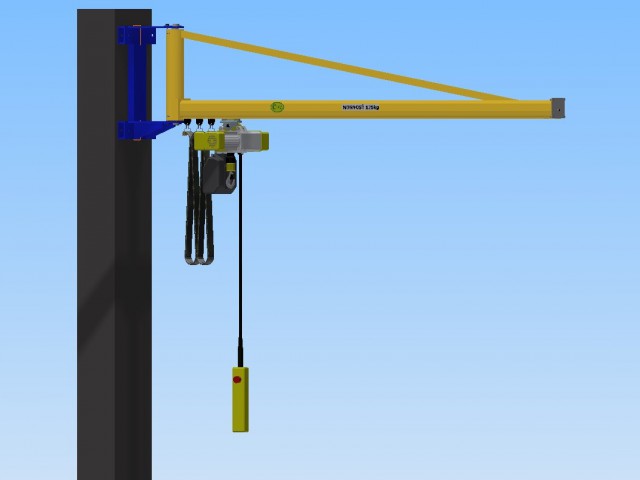

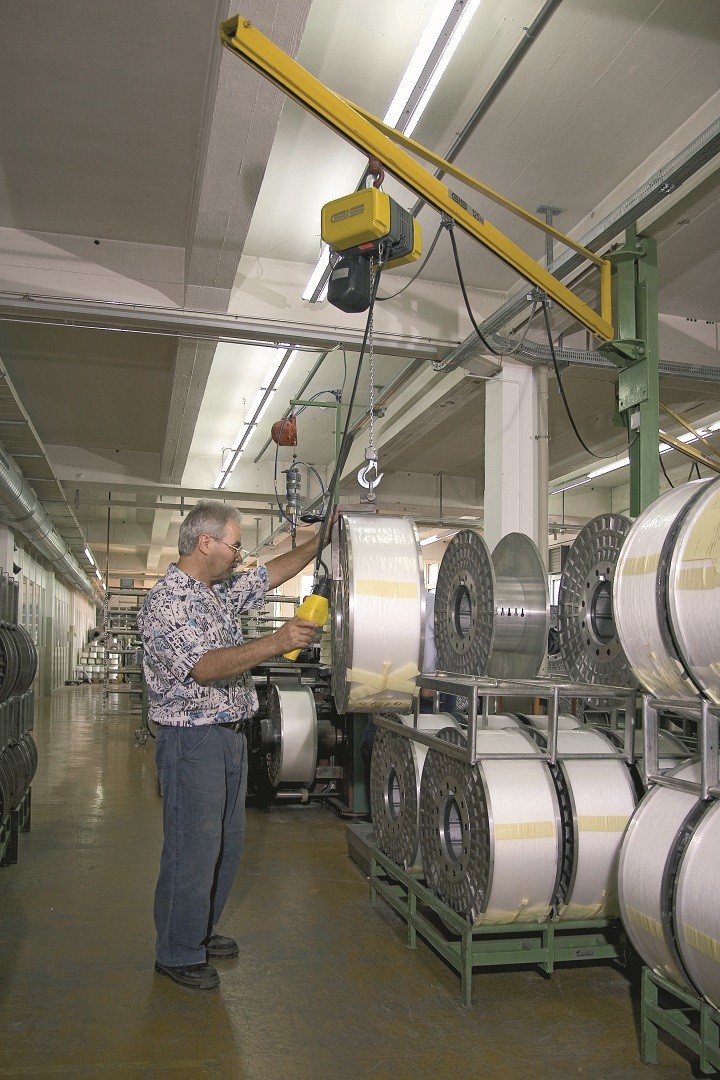

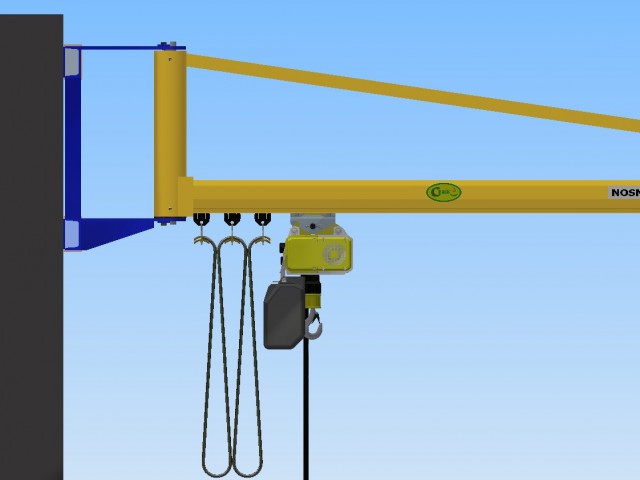

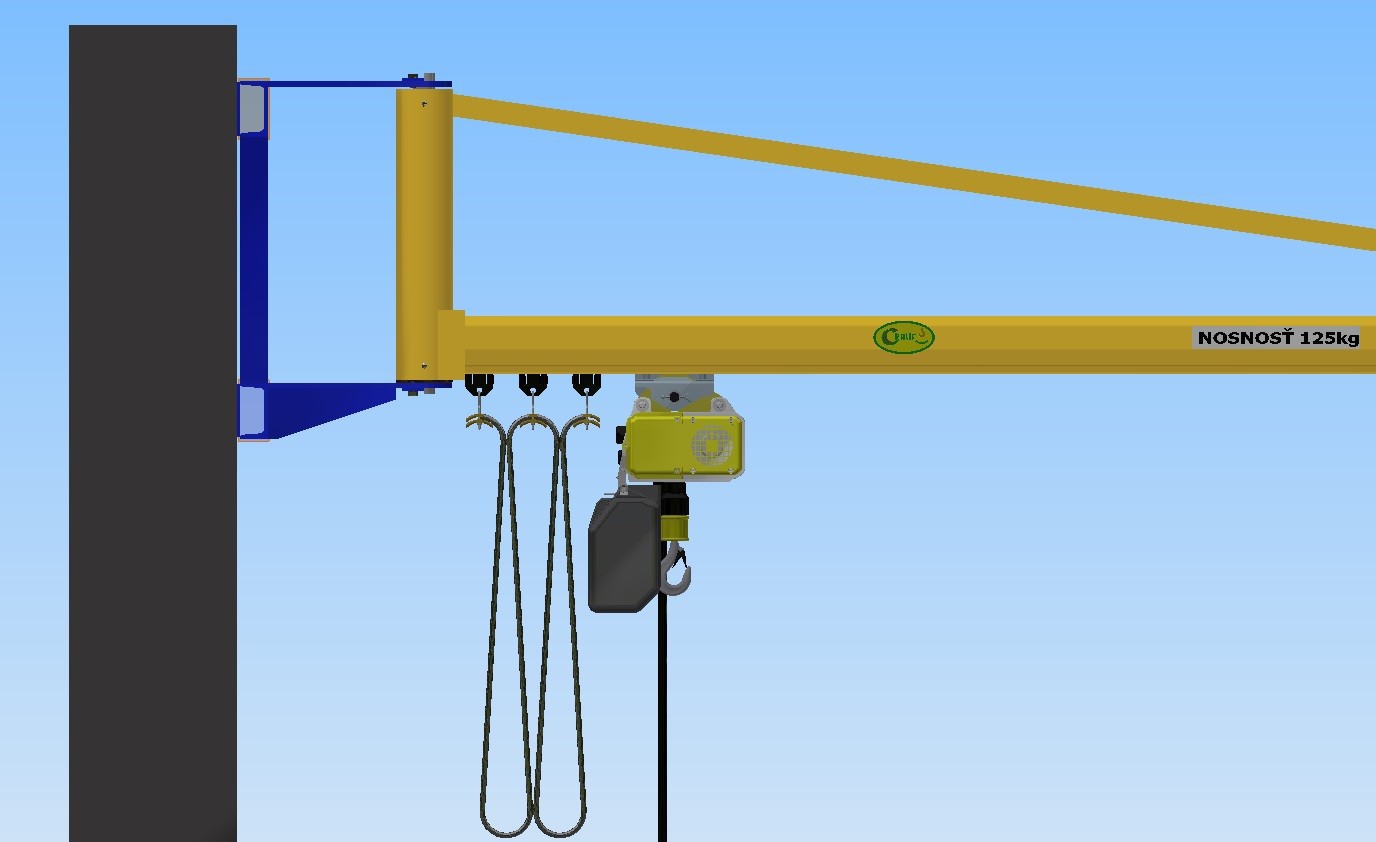

| Crane setting | interior wall slewing cranes |
|
Chain hoist |
manual or electric |
| Arm slewing | manual arm slewing |
|
Drive wheels |
plastic trolley drive wheels guarantee low noise level |
|
The height of crane arm |
up to 6 m, higher according to customer´s requirements |
|
Anchoring |
by a wall, a pillar or a steel construction |
|
|
