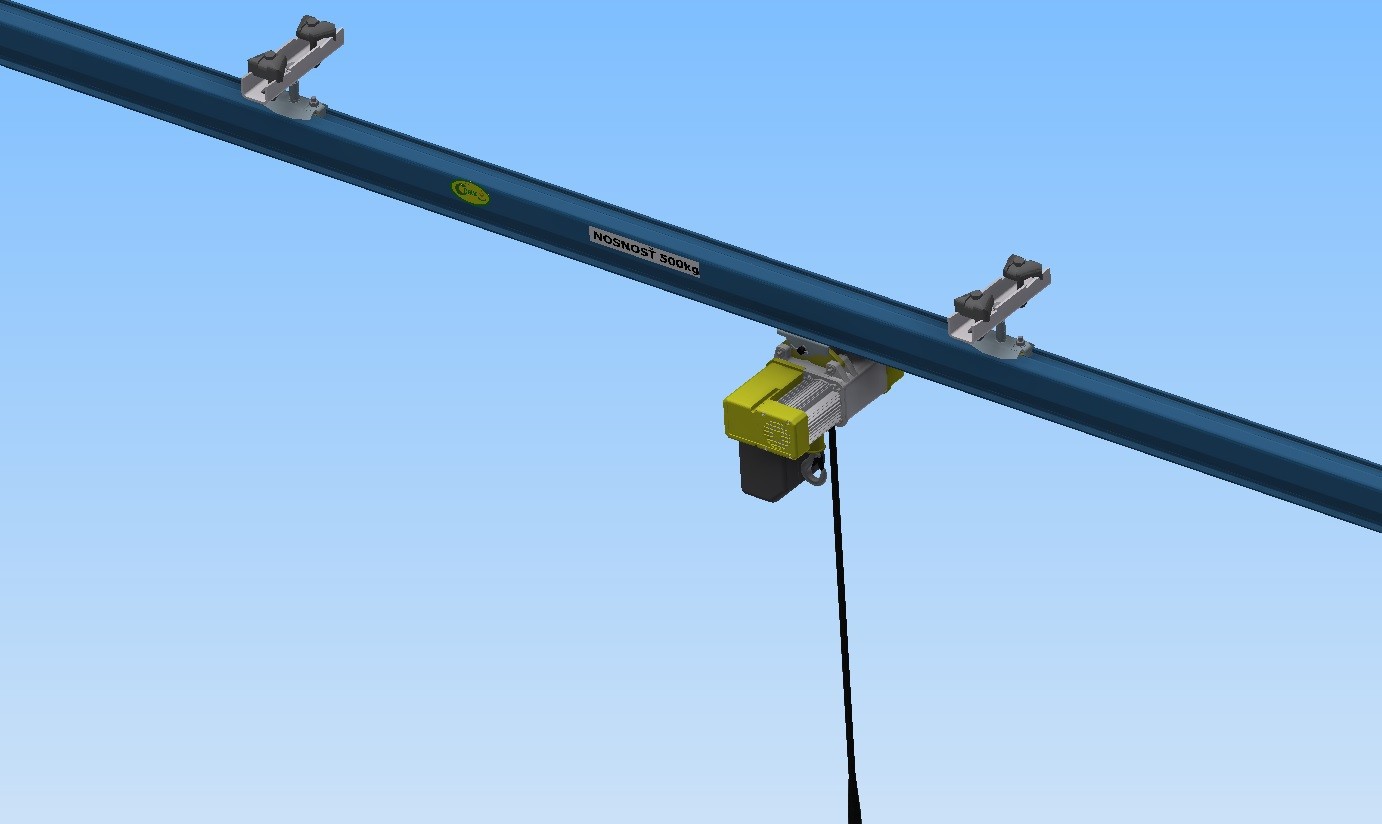

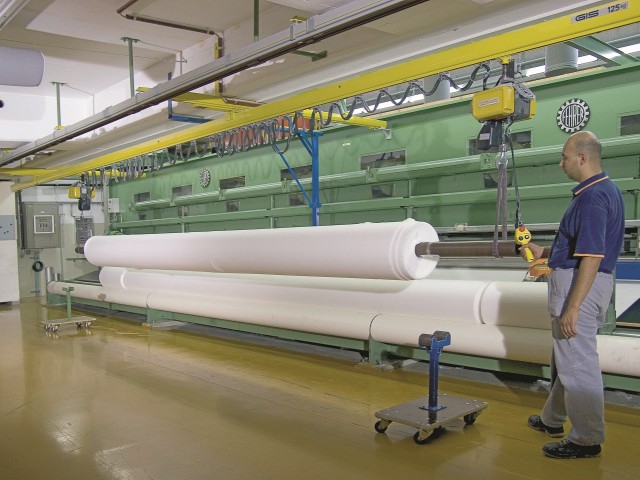

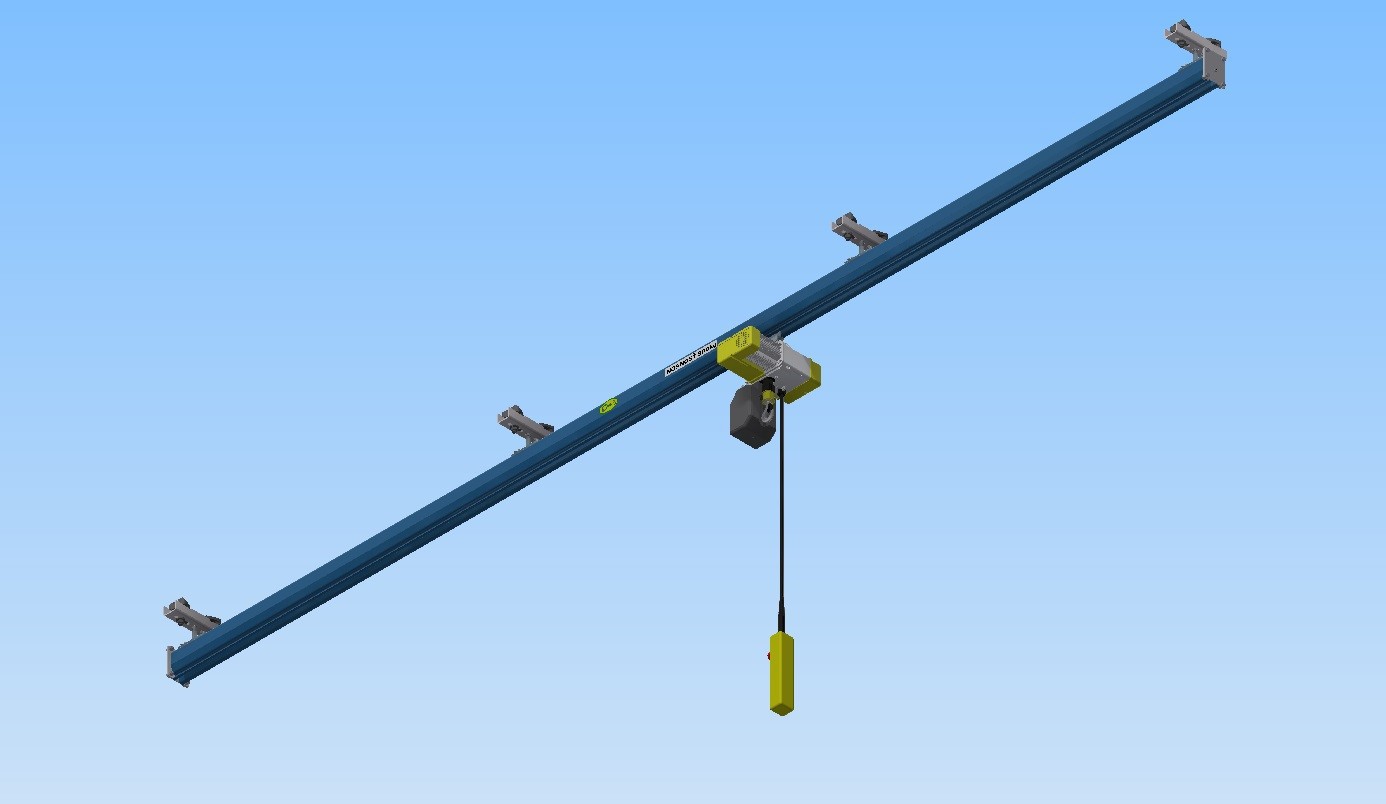

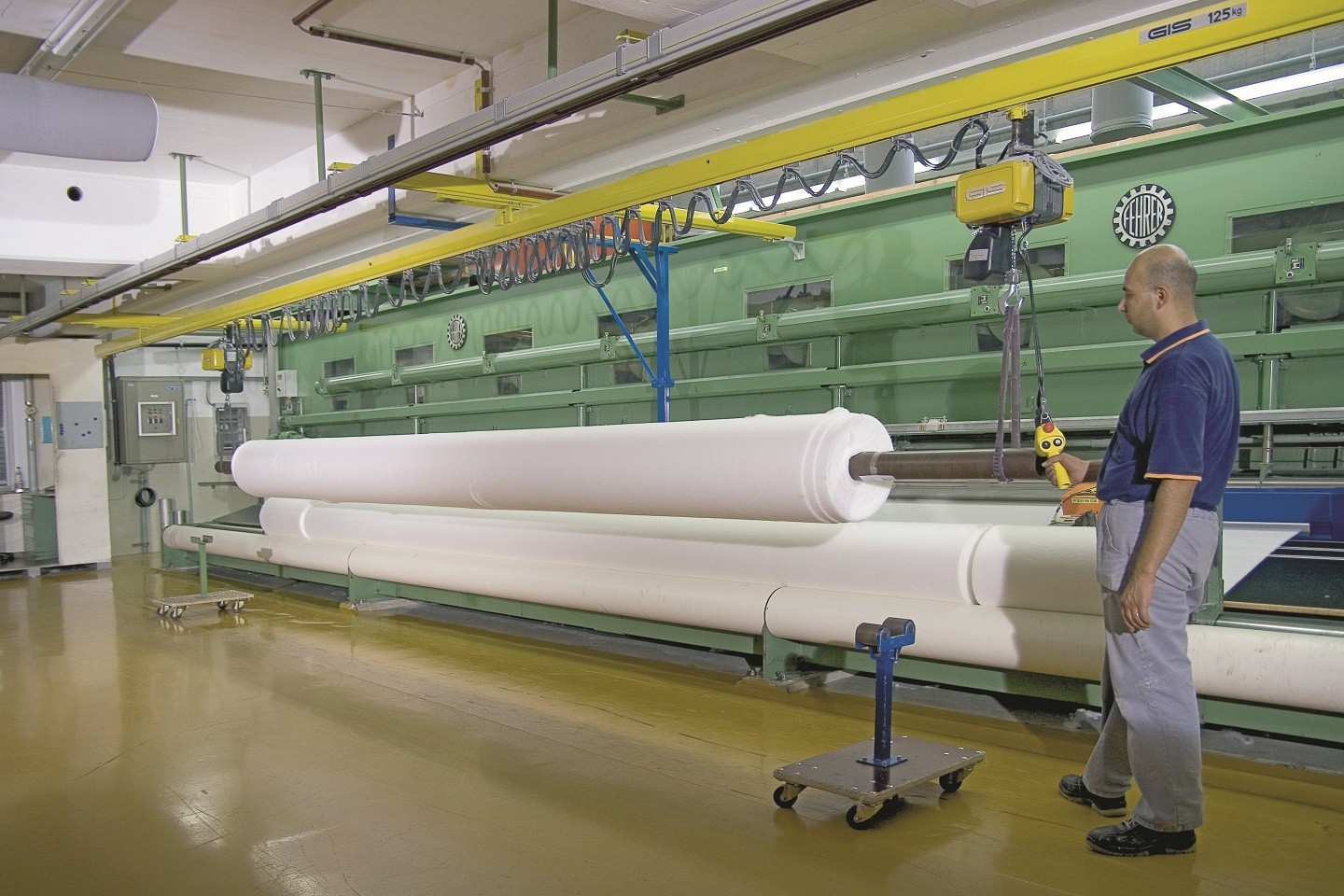

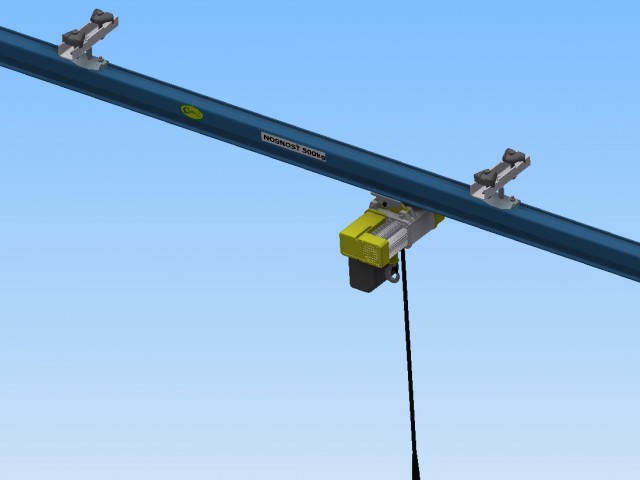

Single underslung railways with hoist are suitable for operating and transferring of a load between work places in two directions. Hoists are usually transferred by pushing the load or by pulling at load-bearing chain or at hanging push-button panel of hoists.



Simple construction and effective design of trolley drive cart guarantees easy and physically undemanding transfer even of a heavier load.




 Technical information

The maximum load bearing capacity is 1 600 kg
The colour RAL 5017
Railway 4 sizes of profiles for various load bearing capacity of railway


could be shaped of 30° and 45°

Trolleys drive with quiet plastic rollers


of usage of electric or manual hoist

Electric trolley drive hoist

if necessary, there is a possibility of electric trolley drive hoist controlled by frequency inverters

A limit switch of lift

and in case of electric trolley there is a limit switch of trolley drive as well

A possibility of remote control of a hoist

Height of railway

the adjustable height of railway hanging according to customer´s requirements

Possibility to lead electrical power of hoist right into the beam or into the trolley next to the beam






  • By the combination of formed profiles and transfer system, one hoist can operate different workplaces from different railways
  • Electric trolley drive of hoist controlled by frequency inverter reduces the extent of putting the load in motion when the hoist is moving
  • For enhancing the flexibility of operating, the lifting device could be operated by a remote control









 Accessories and Options

  • The colour of a steel construction according to customer´s requirements
  • Galvanization of profiles
  • Manual or electric transition systems between railways
  • Manual or electric slewing systems for perpendicular railways
  • Special suspenders
  • Power supply right in profiles or using energy chain
  • The hanging button-controller freely moves along to railway
  • Gripping equipment
