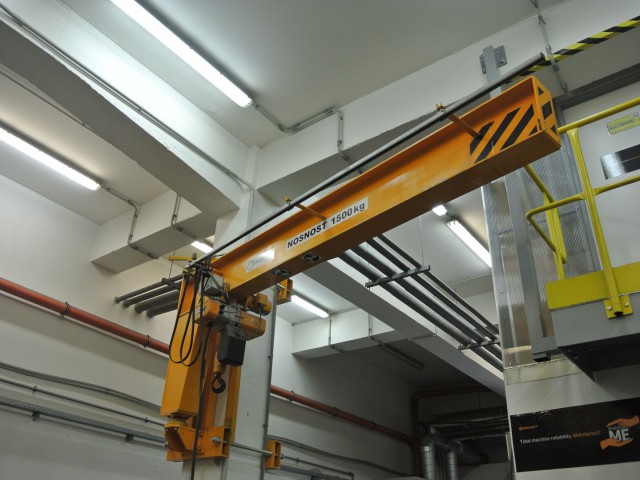

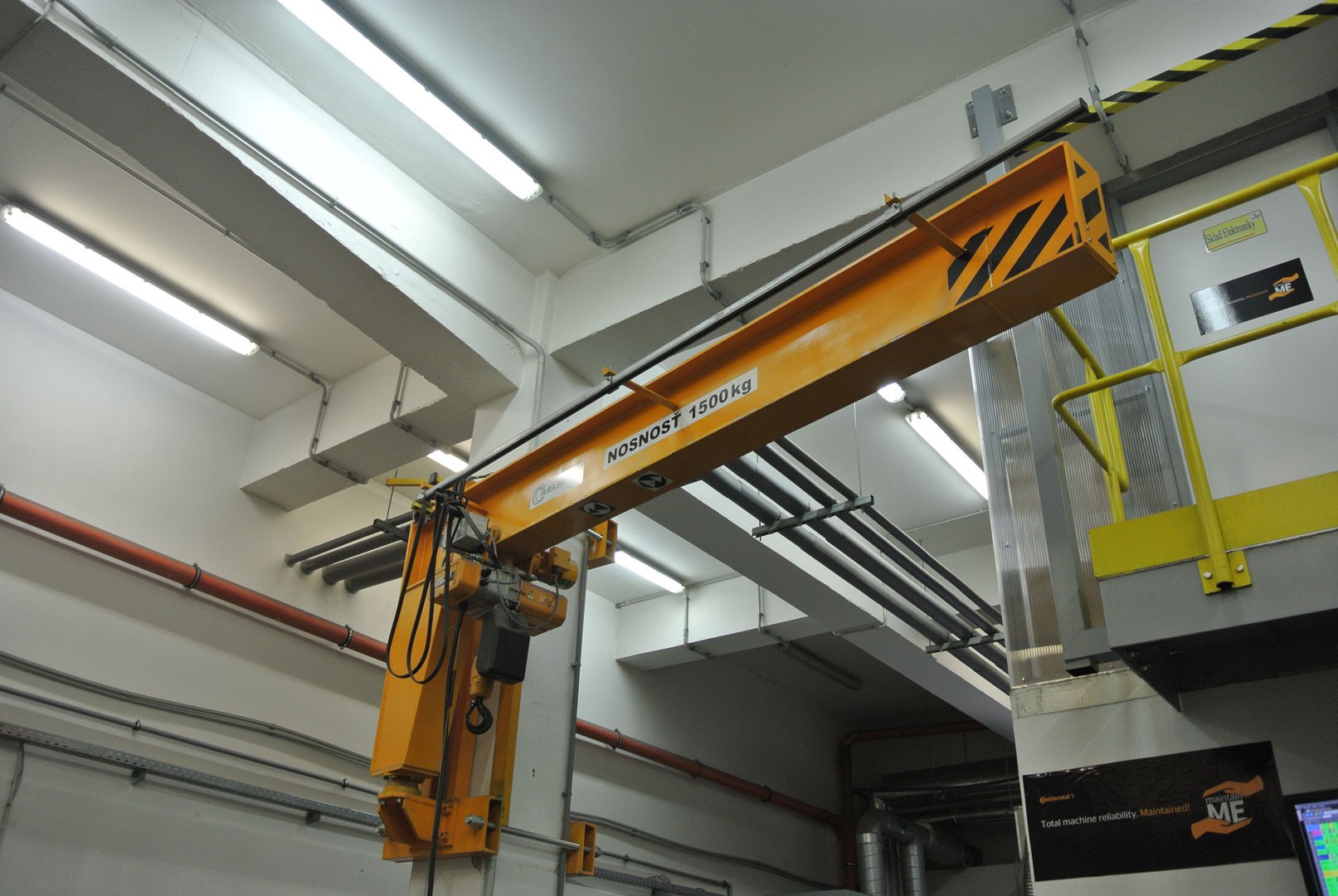

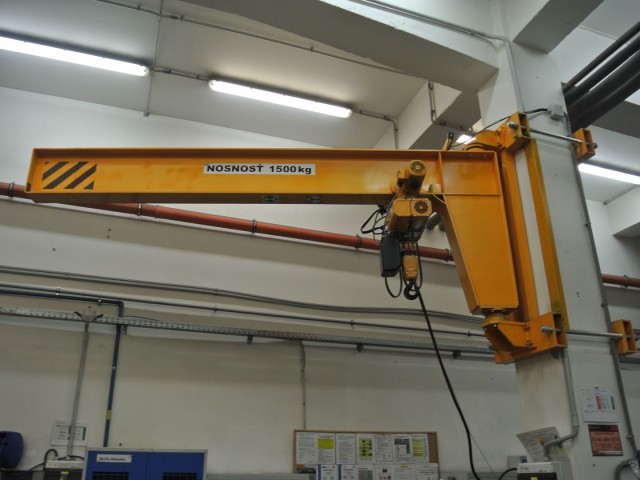

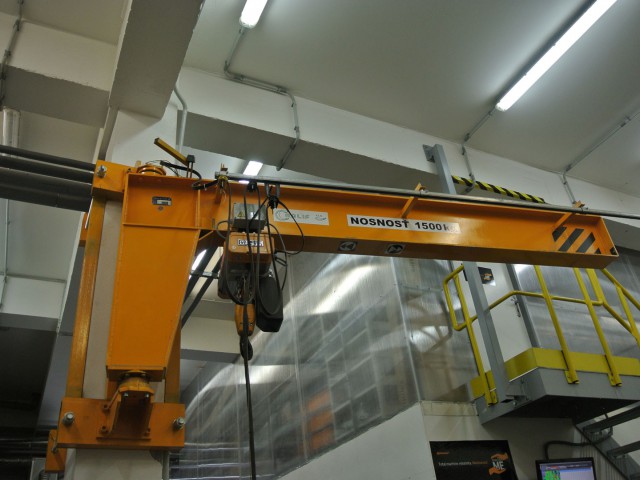

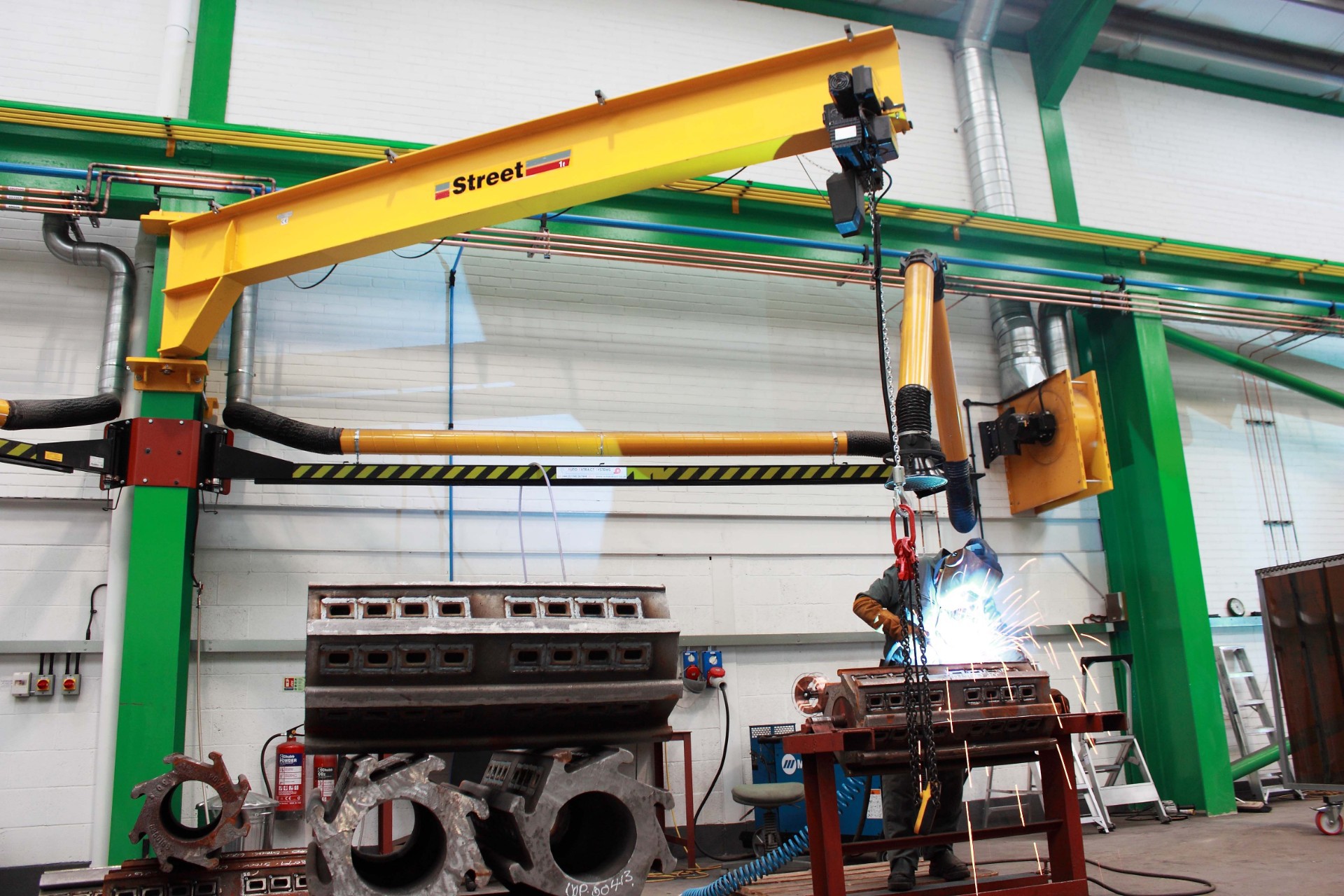

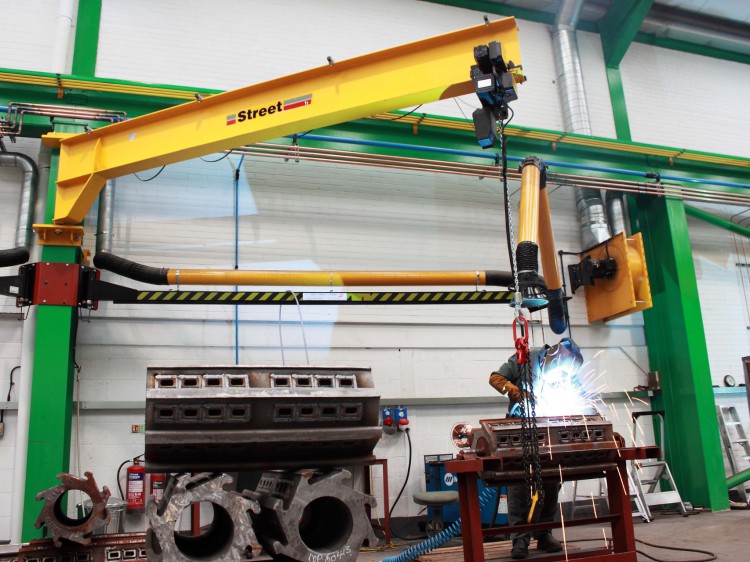

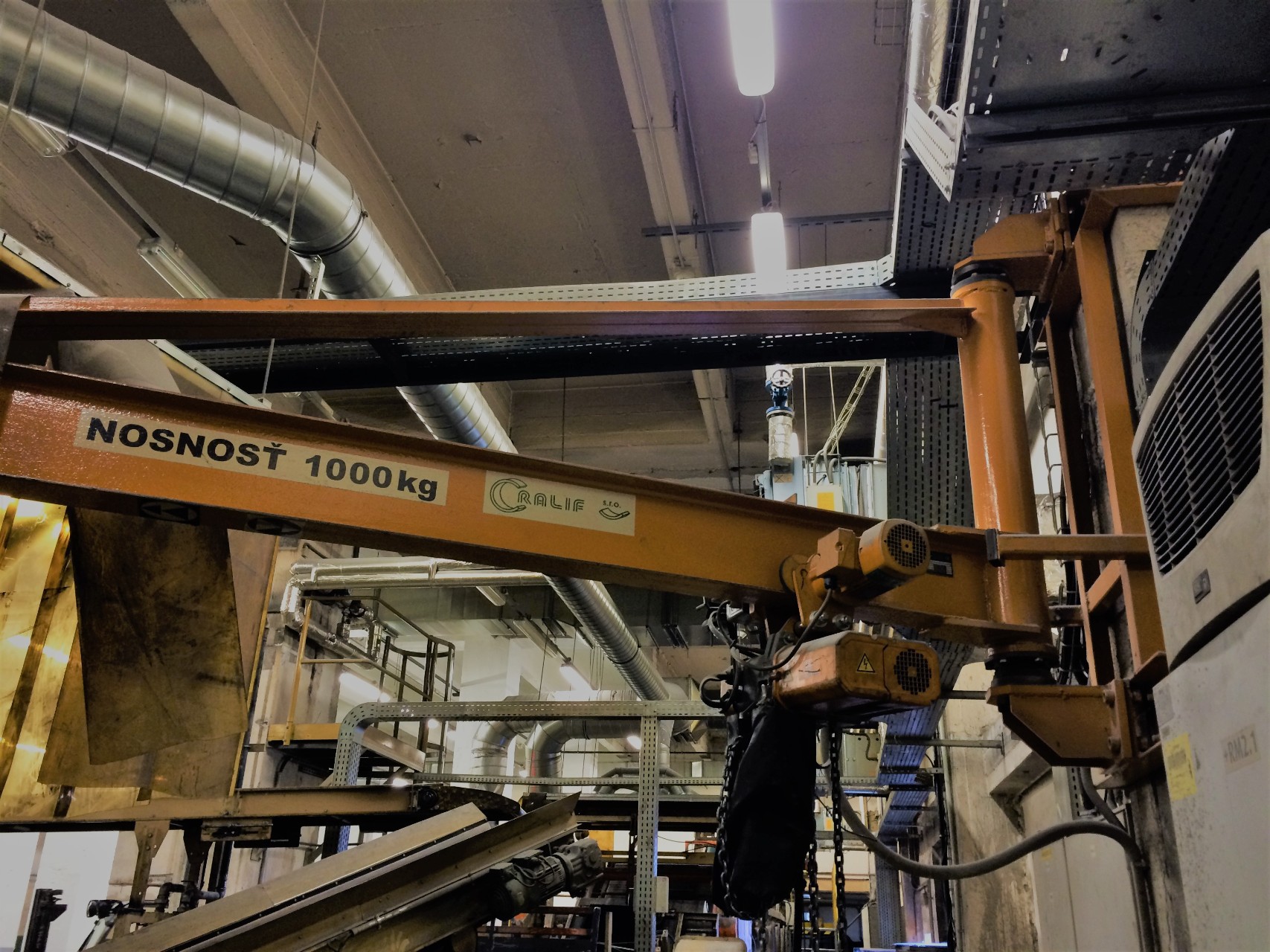

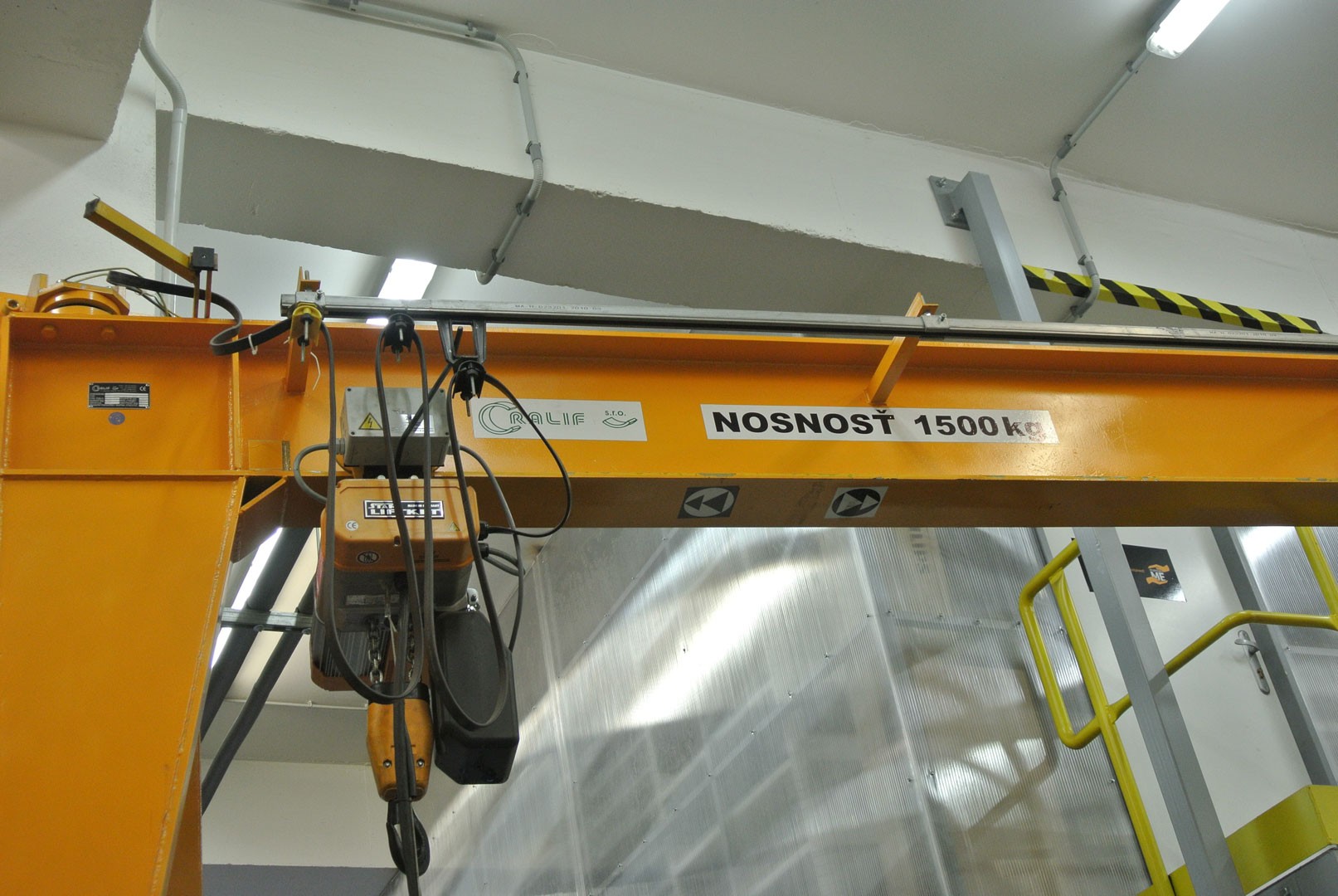

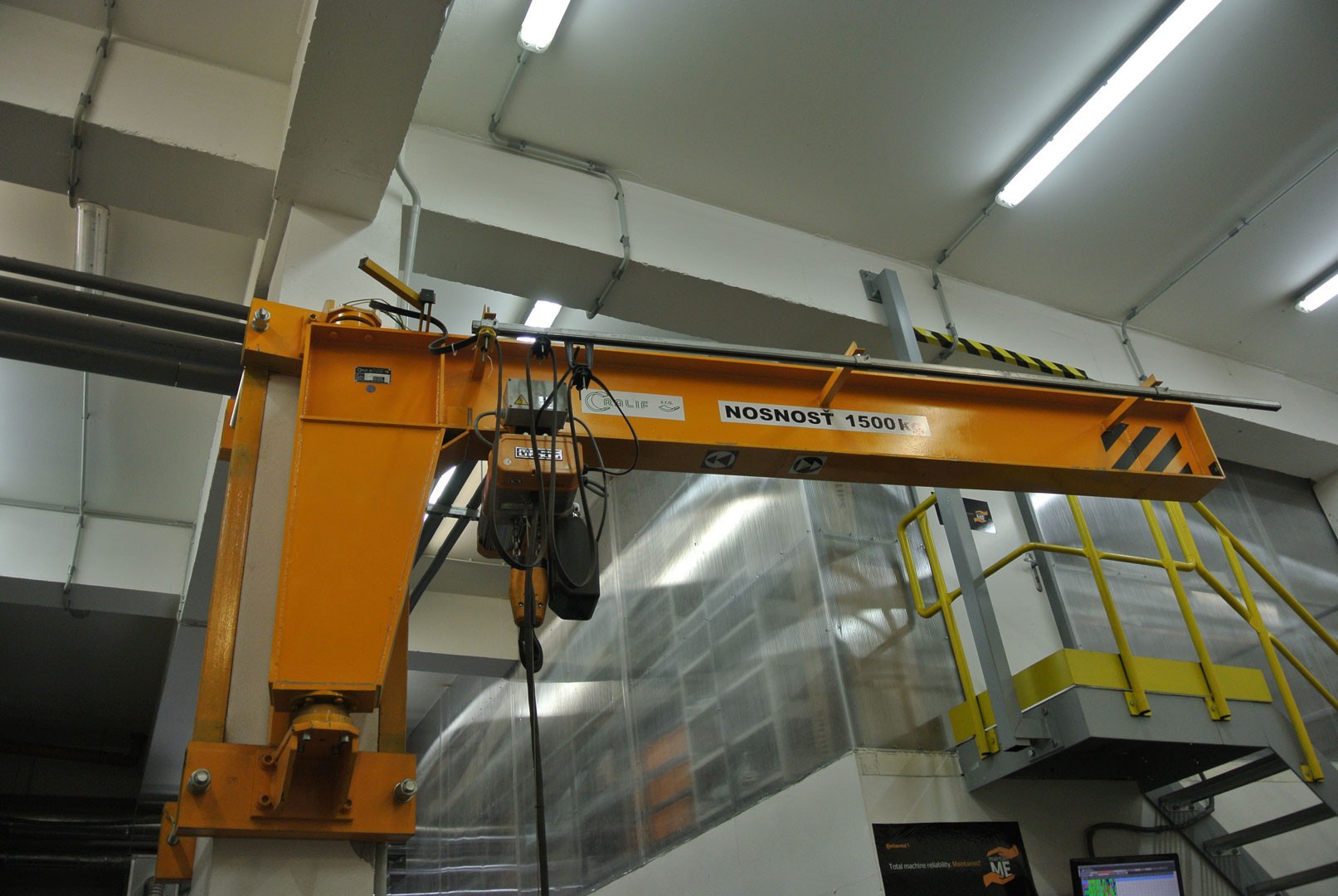

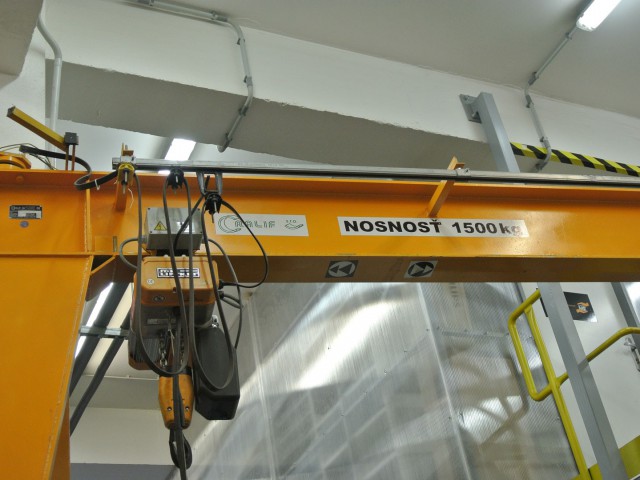

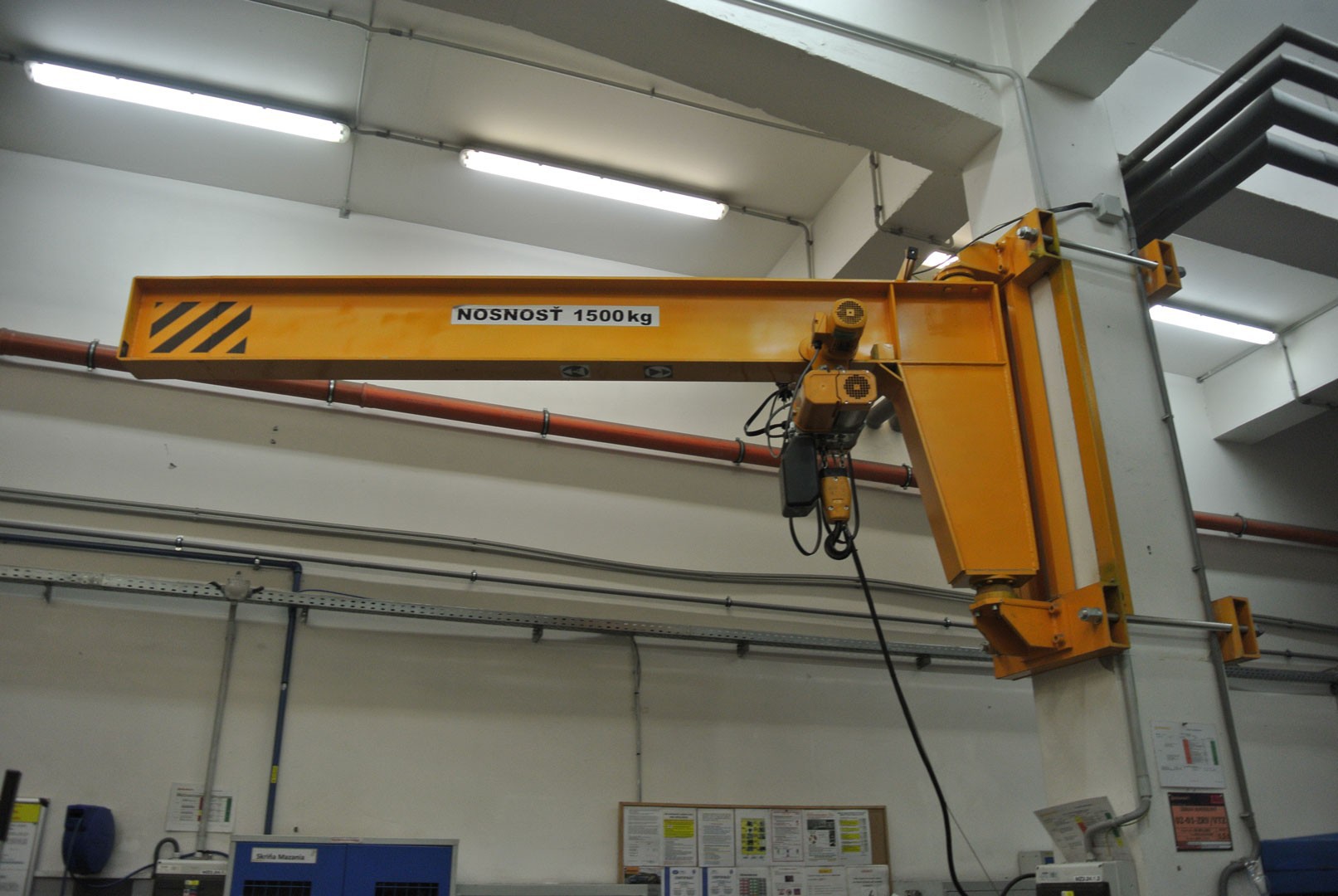

Similarly to slewing jib pillar cranes, we manufacture and supply wall slewing jib cranes with capacity up to 20 000 kg with slewing range limited with end stops (max 270°).





It is a slewing beam attached on the supporting bracket which provides simple, precise and safety handling.







 Technical information

The maximum load bearing capacity up to 20 000 kg
The colour crane bracket RAL 1007, beam RAL 1007
Unpacking according to customer´s requirements and construction capabilities
Slewing radius 270°
Beam slewing manual or electric
Height of lift according to customer´s requirements
Anchoring on existing steel construction, into the concrete pillar, into a wall or ceiling
Speed of slewing manual or according to customer´s requirements
Speed of hoist trolley drive manual, or electric 5/20 (m/min)
Speed of lift one-speed or two-speed up to 8 (m/min)
Lift of hooks two-speed (main lift and microlift)
Type of profile tube-shaped profiles with “I” cross section
We supply standard chain hoists LIFTKET or rope hoists STREET
Controlling via hanging button-controllers or radio remote controllers
Power supply of crane via cable trolleys, via closed trolleys covered by plastic or via energy chains
Crane setting outside and inside









 Advantages

  • Each crane is projected to measure according to customer´s requirements to be adapted to a place and shed´s conditions (or to open space) and still work effectively and safely
  • Long-term operation with minimal costs for maintenance and without any problems
  • Safety hooks prevent the burden from sliding
  • These cranes make the work with burden easier and more effective
  • High-quality height of lift even in the case of low ceiling
  • Economically favourable solution

















 Accessories and Options

  • Large selection of various kinds of slings made by the Cralif company available from: www.viazacieprostriedky.cralif.sk/en
  • Slewing controller: electric, hanging button-controllers or remote controllers
  • Complete electric installation including lockable main switch and current supply to lifting device
  • Colour according to customer´s requirements
  • Modification for use in potentially explosive atmospheres
  • Version with electric drive of all devices
  • Special version of slewing cranes according to customer´s requirements
  • Radio remote controller
